Transporto priemonė: E 500 USA; VIN numerio dalis: 124036

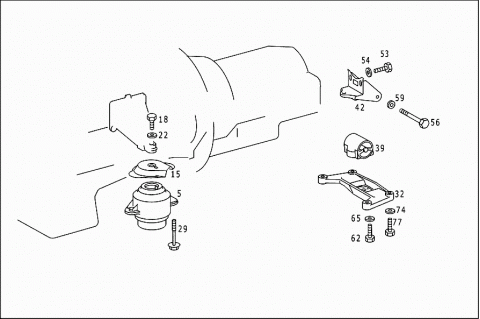

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1242402617 | ENGINE MOUNTING |
| FRONT | ||
| 015 | A 1242411834 | SCREENING PLATE |
| ENGINE FRONT RIGHT MOUNTING | ||
| 015 | A 1242411734 | SCREENING PLATE |
| ENGINE FRONT LEFT MOUNTING | ||
| 018 | N 000933010193 | SCREW |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| 022 | N 000125010532 | WASHER |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| 029 | N 910106008018 | SCREW |
| ENGINE FRONT MOUNTING TO FRONT SUBFRAME | ||
| 032 | A 1242421401 | ENGINE SUPPORT |
| REAR | ||
| 039 | A 1402400318 | RUBBER MOUNTING |
| ENGINE REAR SUPPORT | ||
| 042 | A 1402400440 | BRACKET |
| 053 | N 304017008034 | SCREW |
| BRACKET TO TRANSMISSION COVER | ||
| 054 | N 000125008443 | WASHER |
| BRACKET TO TRANSMISSION COVER | ||
| 056 | N 000931010233 | SCREW |
| BRACKET TO ENGINE MOUNTING | ||
| 059 | N 000125010532 | WASHER |
| BRACKET TO ENGINE MOUNTING | ||
| 062 | N 000933008145 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 065 | N 000125008418 | WASHER |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 074 | N 007349010007 | WASHER |
| ENGINE REAR SUPPORT TO FLOOR | ||
| 077 | N 304017010053 | SCREW |
| ENGINE REAR SUPPORT TO FLOOR |
