Transporto priemonė: E 63 AMG; VIN numerio dalis: 211077

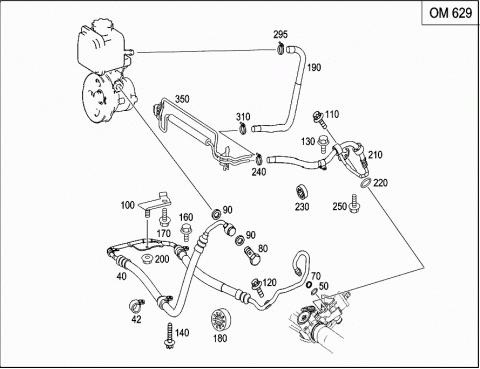

Grupė: 46 STEERING - 063 DIESEL VEHICLES LINE SCOPE

#	Kodas	Pavadinimas
010	A 2114663381	HOSE
		FROM PUMP TO STEERING
010	A 2114602824	LINE
		FROM PUMP TO STEERING
010	A 2114602824	LINE
		FROM PUMP TO STEERING
	Repalced by: A 2114605324
010	A 2114605324	EXPANSION HOSE
		FROM PUMP TO STEERING
010	A 2114663481	HOSE
		FROM PUMP TO STEERING
	Repalced by: A 2114605424
010	A 2114605424	EXPANSION HOSE
		FROM PUMP TO STEERING
010	A 2114601124	LINE
		FROM PUMP TO STEERING
	Repalced by: A 2114603524
010	A 2114603524	LINE
		FROM PUMP TO STEERING
010	A 2114602424	LINE
		FROM PUMP TO STEERING
040	A 2114601724	LINE
		FROM PUMP TO STEERING
	Repalced by: A 2114603624
040	A 2114603624	LINE
		FROM PUMP TO STEERING
042	N 916016020202	CLAMP
		HIGH-PRESSURE EXPANSION HOSE HOLDER
		20/20
050	A 0279979548	SEAL RING
		DELIVERY LINE TO STEERING GEAR
060	A 0289973248	SEAL RING
		DELIVERY LINE TO PUMP
		7.65 X 1.63 MM
070	A 0059977640	SUPPORT RING
		DELIVERY LINE TO STEERING GEAR
080	A 0019901263	HOLLOW SCREW
		DELIVERY LINE TO PUMP
090	N 007603016105	SEALING RING
		DELIVERY LINE TO PUMP
		16X20-CU
100	A 2114600635	BRACKET
		HIGH-PRESSURE TO ENGINE OIL SUMP
	Repalced by: A 2114601135
100	A 2114601135	BRACKET
		HIGH-PRESSURE TO ENGINE OIL SUMP
110	N 000000003853	HEXALOBULAR BOLT
		HIGH-PRESSURE AND LOW-PRESSURE HOSES TO STEERING
		M8X16
120	N 000000001114	HEXALOBULAR BOLT
		HIGH-PRESSURE HOSE TO HOUSING STEERING LEFT
		M6X15
120	N 000000001114	HEXALOBULAR BOLT
		HIGH-PRESSURE HOSE TO HOUSING STEERING RIGHT
		M6X15
130	N 000000003853	HEXALOBULAR BOLT
		FASTENING FOR LOW PRESSURE HOSES
		M8X16
130	N 000000001114	HEXALOBULAR BOLT
		LOW-PRESSURE HOSE TO HOUSING STEERING LEFT
		M6X15
130	A 1409900636	BOLT
		LOW PRESSURE HOSE TO CARRIER
		M5X14
140	N 000000001114	HEXALOBULAR BOLT
		HIGH-PRESSURE TO ENGINE OIL SUMP
		M6X15
140	N 000000001114	HEXALOBULAR BOLT
		HIGH-PRESSURE TO ENGINE OIL SUMP
		M6X15
150	N 910112006003	HEXAGON NUT
		LOW PRESSURE HOSE TO CARRIER
		M6
160	N 000000001114	HEXALOBULAR BOLT
		HIGH PRESSURE HOSE TO CHARGE AIR MANIFOLD
		M6X15
170	N 000000001114	HEXALOBULAR BOLT
		AUXILIARY BRACKET TO ENGINE OIL PAN
		M6X15
180	A 1233288981	RUBBER RING
		CHAFE PROTECTION, PRESSURE LINE
190	A 2119971482	HOSE
		FROM COOLING PIPE TO PUMP
	Repalced by: A 2114605224
190	A 2114605224	PRESSURE HOSE
		FROM COOLING PIPE TO PUMP
190	A 2114666281	HOSE
		FROM COOLING PIPE TO OIL TANK
200	N 910112006003	HEXAGON NUT
		HIGH-PRESSURE HOSE TO OIL SUMP BRACKET
		M6
200	N 910112006003	HEXAGON NUT
		HIGH PRESSURE HOSE TO BRACKET
		M6
210	A 2114662081	HOSE
		FROM STEERING TO COOLING PIPE
210	A 2114601224	LINE
		FROM STEERING TO COOLING PIPE
210	A 2114602024	LINE
		FROM STEERING TO COOLING PIPE
	Repalced by: A 2114605124
210	A 2114605124	LINE
		FROM STEERING TO COOLING PIPE
220	A 0279979548	SEAL RING
		LOW PRESSURE LINE TO STEERING
220	A 0159972245	O-RING
		LOW PRESSURE LINE TO STEERING
230	A 1164661282	RUBBER RING
		CHAFE PROTECTION, PRESSURE LINE
230	A 1233288981	RUBBER RING
		PROTECTION AGAINST SCORING FOR HOSE
240	A 0059972790	HOSE CLAMP
		LOW-PRESSURE HOSE TO COOLING PIPE
250	A 1409900636	BOLT
		LOW PRESSURE HOSE TO CARRIER
		M5X14
295	A 0069976190	HOSE CLAMP
		FROM HOSE TO PUMP
		15.5 MM
310	A 0059972790	HOSE CLAMP
		LOW PRESSURE HOSE TO COOLING LINE
350	A 2114662224	COOLING PIPE
		TO COOLING MODULE
	Repalced by: A 2114662324
350	A 2114662224	COOLING PIPE
		TO COOLING MODULE
	Repalced by: A 2114662324
350	A 2114662324	COOLING PIPE
		TO COOLING MODULE
350	A 2114662324	COOLING PIPE
		TO COOLING MODULE
350	A 2114662324	COOLING PIPE
		TO COOLING MODULE
350	A 2114662324	COOLING PIPE
		TO COOLING MODULE
430	A 2114600835	BRACKET
		HOSE TO COMPRESSOR
