Transporto priemonė: GLK 350 CGI 4MATIC; VIN numerio dalis: 204988
Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

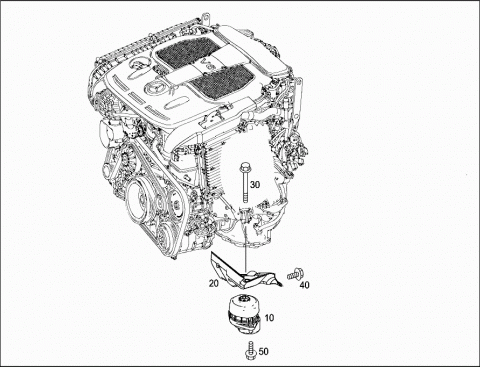

| 010 | A 2042403517 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 2042403517 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 020 | A 2042410534 | SCREENING PLATE |
| LEFT | ||
| 020 | A 2042410634 | SCREENING PLATE |
| RIGHT | ||
| 030 | N 910105010003 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M10X60 | ||
| 040 | N 000000001114 | HEXALOBULAR BOLT |
| SHIELD TO ENGINE SUPPORT | ||
| M6X15 | ||
| 050 | N 910105008014 | HEXAGON HEAD BOLT |
| FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT | ||
| M8X35 | ||

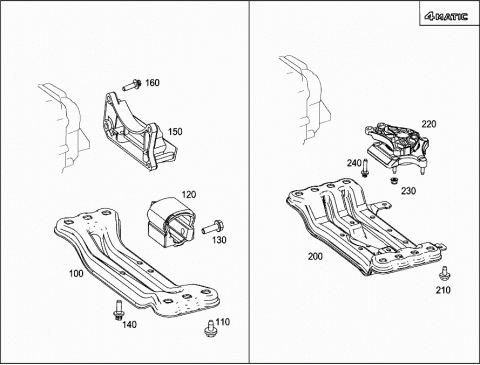

| 100 | A 2042400202 | ENGINE SUPPORT |
| REAR | ||
| 110 | A 0019903703 | BOLT |
| ENGINE REAR SUPPORT TO FRAME | ||
| M10X22 | ||
| 120 | A 2122400418 | ENGINE SUPPORT |
| REAR | ||
| 130 | N 000000000428 | HEXAGON HEAD BOLT |
| BRACKET TO TRANSMISSION MOUNTING | ||
| M10X35 | ||
| 140 | N 000000000276 | HEXALOBULAR BOLT |
| ENGINE MOUNT REAR TO TRANSM. CARRIER | ||
| M8X20 | ||
| 150 | A 2112420340 | BRACKET |
| AT TRANSMISSION | ||
| 160 | A 0049903412 | BOLT |
| BRACKET TO TRANSMISSION | ||
| M6X30 | ||
| 200 | A 2042401202 | ENGINE SUPPORT |
| REAR | ||
| 210 | A 0019903703 | BOLT |
| ENGINE REAR SUPPORT TO FRAME | ||
| M10X22 | ||
| 220 | A 2212400518 | RUBBER MOUNT |
| REAR | ||
| 230 | N 000000003175 | NUT |
| ENGINE MOUNT REAR TO TRANSM. CARRIER | ||
| M8 | ||
| 240 | N 910143008003 | HEXALOBULAR BOLT |
| BEARING TO TRANSMISSION | ||
| M8X30 |
