Transporto priemonė: GL 450 4MATIC; VIN numerio dalis: 166872
Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

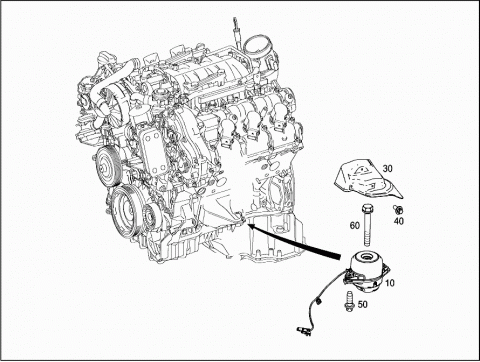

| 010 | A 1662405017 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 1662405117 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 010 | A 1662403017 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 1662403117 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 030 | A 1662411734 | SCREENING PLATE |
| LEFT | ||
| 030 | A 1662411834 | SCREENING PLATE |
| RIGHT | ||
| 040 | N 000000001114 | HEXALOBULAR BOLT |
| LEFT SHIELD | ||
| M6X15 | ||
| 040 | N 000000001114 | HEXALOBULAR BOLT |
| RIGHT SHIELD | ||
| M6X15 | ||
| 050 | N 910142010005 | HEXALOBULAR BOLT |
| FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT | ||
| M10X20 | ||
| 060 | N 910143012005 | HEXALOBULAR BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M12X1,5X50 | ||

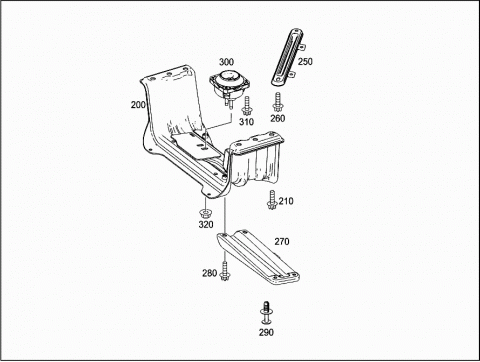

| 200 | A 1642400702 | REAR ENGINE CROSS MEMBER |
| REAR | ||
| 200 | A 1662401002 | REAR ENGINE CROSS MEMBER |
| REAR | ||
| 210 | A 0009901517 | BOLT |
| CROSSMEMBER TO BODYSHELL | ||
| M10X25 | ||
| 250 | A 1662420732 | STRUT |
| 260 | N 910143010011 | HEXALOBULAR BOLT |
| FASTENING STRUT | ||
| M10X20-10.9 | ||
| 270 | A 1662420832 | STRUT |
| 280 | N 910143010011 | HEXALOBULAR BOLT |
| STRUT TO CROSS MEMBER | ||
| M10X20-10.9 | ||
| 290 | A 2019900292 | EXPANSION RIVET |
| LONGITUDINAL MEMBER, LEFT FRONT | ||
| 8 MM | ||
| 290 | A 2019900292 | EXPANSION RIVET |
| RIGHT FRONT LONGITUDINAL MEMBER | ||
| 8 MM | ||
| 300 | A 1662400618 | TRANSMISSION BEARING |
| 300 | A 1662401118 | TRANSMISSION BEARING |
| 300 | A 1662401318 | TRANSMISSION BEARING |
| 310 | N 910143008004 | HEXALOBULAR BOLT |
| BRACKET BEARING | ||
| M8X35 | ||
| 320 | N 000000003275 | NUT |
| BRACKET BEARING | ||
| M10 |
