Transporto priemonė: MAYBACH 57 S; VIN numerio dalis: 240079

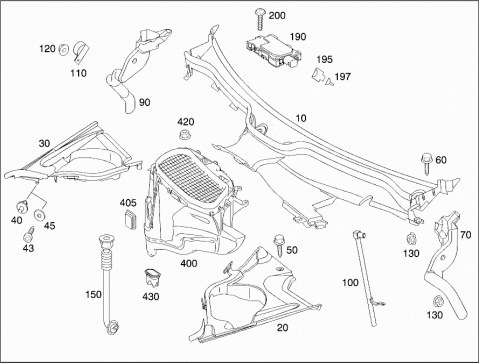

Grupė: 83 HEATING AND VENTILATION - 110 WATER BAFFLE WITH INTAKE SHELL
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2408300028 | WATER BAFFLE |
| ABOVE WIPE SYSTEM | ||
| 010 | A 2408300128 | WATER BAFFLE |
| ABOVE WIPE SYSTEM | ||
| 020 | A 2406820116 | COVER |
| LEFT WHEEL ARCH | ||
| 020 | A 2406820316 | COVER |
| LEFT WHEEL ARCH | ||
| 030 | A 2406820016 | COVER |
| RIGHT WHEEL ARCH | ||
| 030 | A 2406820216 | COVER |
| RIGHT WHEEL ARCH | ||
| 040 | A 0019902392 | EXPANSION RIVET |
| COVERING TO PARTITION PANEL | ||
| 5.2 MM | ||
| 043 | A 0019847429 | BOLT |
| COVERING TO PARTITION PANEL | ||
| M4X12 | ||
| 045 | N 009021006208 | WASHER |
| COVERING TO PARTITION PANEL | ||
| 6 MM | ||
| 050 | N 000000000996 | TAPPING SCREW |
| COVER TO WATER DRAINAGE | ||
| 4.2X25 | ||
| 060 | N 000000000996 | TAPPING SCREW |
| WATER BAFFLE TO CROSS MEMBER | ||
| 4.2X25 | ||
| 070 | A 2406280169 | DRIP MOULDING |
| LEFT | ||
| 070 | A 2406200173 | DRIP MOULDING |
| LEFT | ||
| 090 | A 2406200273 | DRIP MOULDING |
| RIGHT | ||
| 090 | A 2406280469 | DRIP MOULDING |
| RIGHT | ||
| 100 | A 2408320315 | PIPELINE |
| CONDENSED WATER DRAIN,LEFT | ||
| 100 | A 2408320415 | PIPELINE |
| CONDENSED WATER DRAIN,RIGHT | ||
| 110 | A 1191870090 | CLAMP |
| TROUGH ON THE RIGHT | ||
| 110 | A 1191870090 | CLAMP |
| WATER DRAIN | ||
| 120 | N 913023006001 | NUT |
| TROUGH ON THE RIGHT | ||
| M6 | ||
| 120 | N 913023006001 | NUT |
| WATER DRAIN | ||
| M6 | ||
| 130 | A 0039900251 | SCREWED INSERT |
| WATER DRAIN,LEFT | ||
| 130 | A 0039900251 | SCREWED INSERT |
| TROUGH ON THE RIGHT | ||
| 150 | A 2038321394 | HOSE |
| CONDENSED WATER DRAIN | ||
| 190 | A 2118300472 | GASEOUS POLLUTANT SENSOR |
| IN AIR/WATER DUCT | ||
| 195 | A 2205400681 | PIN BUSHING HOUSING |
| AIR CONDITIONING MULTIFUNCTION SENSOR | ||
| 3-PIN MQS;B31/1 | ||
| 197 | A 0005402505 | REP.SET CONTACT |
| AIR CONDITIONING MULTIFUNCTION SENSOR | ||
| 0.5 MM2 MQS;B31/1 | ||
| 200 | A 0019846029 | BOLT |
| SENSOR TO AIR DUCT | ||
| 4 X 25 MM | ||
| 400 | A 2408300044 | AIR DUCT |
| AT FIRE WALL | ||
| 400 | A 2408300144 | AIR DUCT |
| AT FIRE WALL | ||
| 405 | A 1408320084 | DRAIN VALVE |
| WATER DRAIN | ||
| 420 | N 910112006003 | HEXAGON NUT |
| AIR DUCT TO FRONT PANEL | ||
| M6 | ||
| 430 | A 2309970281 | GROMMET |
| TO AIR DUCT |
