Transporto priemonė: MAYBACH 57 S; VIN numerio dalis: 240079

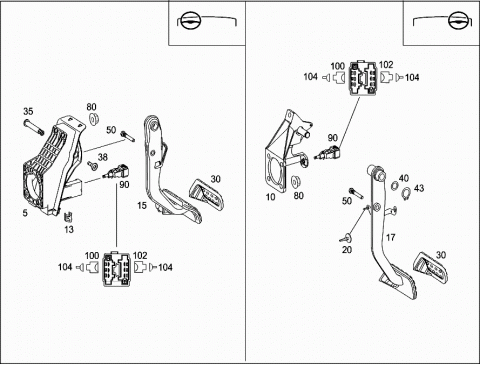

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 2202901119 | BEARING BRACKET |
| PEDAL | ||
| 010 | A 2202900719 | BEARING BRACKET |
| PEDAL | ||
| 013 | A 2109880578 | CLIP |
| 015 | A 2402900018 | PEDAL |
| BRAKE | ||
| Repalced by: A 2402900218 | ||
| 015 | A 2402900218 | PEDAL |
| BRAKE | ||
| 017 | A 2402900318 | PEDAL |
| BRAKE | ||
| 020 | A 2112920086 | BUFFER |
| STOP | ||
| 030 | A 2302900082 | PAD |
| BRAKE PEDAL | ||
| 030 | A 2302900082 | PAD |
| BRAKE PEDAL | ||
| 035 | A 1682910374 | PIN |
| PEDAL TO BEARING BRACKET | ||
| 038 | A 1682910055 | PLUG |
| AT BEARING BRACKET | ||
| 040 | A 1152910076 | WASHER |
| PEDAL TO BEARING BRACKET | ||
| 043 | A 0079942041 | FUSE |
| PEDAL TO BEARING BRACKET | ||
| 050 | A 2309910012 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 050 | A 2309910012 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 080 | N 000000003175 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 | ||
| 080 | N 000000003175 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 | ||
| 090 | A 0015452109 | SWITCH |
| STOP LIGHT | ||
| 100 | A 2105456128 | PLUG HOUSING |
| STOP LIGHT SWITCH | ||
| 3-PIN JPT;S9/1 | ||
| 102 | A 2105454128 | PIN BUSHING HOUSING |
| STOP LIGHT SWITCH | ||
| 3-PIN JPT;S9/1 | ||
| 104 | A 0115458126 | CONTACT SPRING |
| STOP LIGHT SWITCH | ||
| 0.5-1.0 MM2 JPT;S9/1 | ||
