Transporto priemonė: MAYBACH 57 S; VIN numerio dalis: 240079

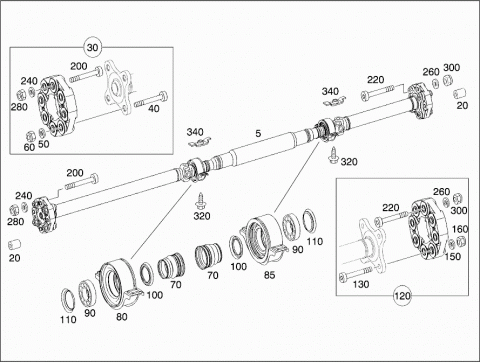

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 2404100806 | PROPELLER SHAFT |
| Repalced by: A 2404101006 | ||
| 005 | A 2404100906 | PROPELLER SHAFT |
| Repalced by: A 2404101106 | ||
| 005 | A 2404101006 | PROPELLER SHAFT |
| Repalced by: A 2404101306 | ||
| 005 | A 2404101306 | PROPELLER SHAFT |
| 005 | A 2404101106 | PROPELLER SHAFT |
| 020 | A 1244100632 | CENTERING BUSHING |
| FRONT PROPELLER SHAFT | ||
| 020 | A 1244100632 | CENTERING BUSHING |
| REAR PROPELLER SHAFT | ||
| 030 | A 2154100015 | FLEXIBLE JOINT DISC |
| FRONT | ||
| Repalced by: A 0004110600 | ||
| 030 | A 0004110600 | TS FLEXIBLE DISK |
| FRONT | ||
| 040 | A 0079900004 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE JOINT DISC TO FRONT PROPELLER SHAFT | ||
| M12X1.5X65 | ||
| Repalced by: A 0119901104 | ||
| 040 | A 0119901104 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE JOINT DISC TO FRONT PROPELLER SHAFT | ||
| M12X65 | ||
| 050 | A 0069904540 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 060 | A 0059901951 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5 | ||
| 070 | A 1404110097 | BOOT |
| FRONT AND REAR | ||
| 080 | A 2404100281 | RUBBER BOOT BEARING |
| FRONT | ||
| 080 | A 2404100881 | RUBBER BOOT BEARING |
| FRONT | ||
| Repalced by: A 2404100981 | ||
| 080 | A 2404100981 | RUBBER BOOT BEARING |
| FRONT | ||
| 085 | A 2404100281 | RUBBER BOOT BEARING |
| RANGE OF DELIVERY | ||
| 085 | A 2404100981 | RUBBER BOOT BEARING |
| RANGE OF DELIVERY | ||
| 090 | A 0089815125 | BALL BEARING |
| FRONT AND REAR | ||
| 100 | A 1404110096 | PROTECTIVE CAP |
| SHANK SIDE | ||
| 110 | A 1404110196 | PROTECTIVE CAP |
| JOINT SIDE | ||
| 120 | A 2404100215 | FLEXIBLE JOINT DISC |
| REAR | ||
| Repalced by: A 0004110800 | ||
| 120 | A 0004110800 | TS FLEXIBLE DISK |
| REAR | ||
| 130 | A 0079900204 | BOLT |
| FLEXIBLE JOINT DISC TO REAR PROPELLER SHAFT | ||
| M12X1.5X75 | ||
| Repalced by: A 0119901304 | ||
| 130 | A 0119901304 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE JOINT DISC TO REAR PROPELLER SHAFT | ||
| M12X75 | ||
| 150 | A 0069904540 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 160 | A 0059901951 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5 | ||
| 200 | A 0079900004 | CAPSCREW W HEXAL. DRIVE |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X1.5X65 | ||
| Repalced by: A 0119901104 | ||
| 200 | A 0119901104 | CAPSCREW W HEXAL. DRIVE |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X65 | ||
| 220 | A 0079900004 | CAPSCREW W HEXAL. DRIVE |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X1.5X65 | ||
| Repalced by: A 0119901104 | ||
| 220 | A 0119901104 | CAPSCREW W HEXAL. DRIVE |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X65 | ||
| 240 | A 0069904540 | WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| Repalced by: A 0109900882 | ||
| 240 | A 0109900882 | WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 260 | A 0069904540 | WASHER |
| PROPELLER SHAFT TO REAR AXLE | ||
| Repalced by: A 0109900882 | ||
| 260 | A 0109900882 | WASHER |
| 280 | A 0059901951 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X1.5 | ||
| Repalced by: A 0029906254 | ||
| 280 | A 0029906254 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12 | ||
| 300 | A 0059901951 | HEXAGON NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X1.5 | ||
| Repalced by: A 0029906254 | ||
| 300 | A 0029906254 | HEXAGON NUT |
| M12 | ||
| 320 | N 000000001140 | HEXALOBULAR BOLT |
| PROPELLER SHAFT TO BODY FRONT | ||
| M8X24 | ||
| 320 | N 000000001140 | HEXALOBULAR BOLT |
| PROPELLER SHAFT TO BODY REAR | ||
| M8X24 | ||
| 340 | A 1404130017 | THREADED UNION |
| PROPELLER SHAFT TO BODY FRONT | ||
| 340 | A 1404130017 | THREADED UNION |
| PROPELLER SHAFT TO BODY REAR | ||
