Transporto priemonė: MAYBACH 62; VIN numerio dalis: 240178
Grupė: 71 PARTITION PANEL
| # | Kodas | Pavadinimas |
|---|---|---|

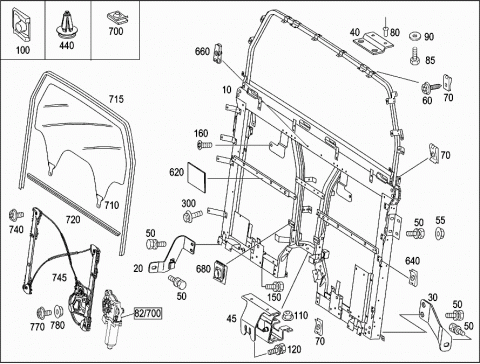

| 010 | A 2407100001 | PARTITION PANEL |
| COMPLETE | ||
| 010 | A 2407100101 | PARTITION PANEL |
| INCORPORATED IN: | ||
| A 240 710 00 01 | ||
| 010 | A 2407100701 | PARTITION PANEL |
| 010 | A 2407100601 | PARTITION PANEL |
| 020 | A 2407100136 | BRACKET |
| PARTITION WALL FASTENING, BOTTOM LEFT | ||
| 020 | A 2407100236 | BRACKET |
| PARTITION WALL FASTENING, BOTTOM RIGHT | ||
| 030 | A 2407110314 | BRACKET |
| PARTITION WALL FASTENING, BOTTOM LEFT | ||
| 030 | A 2407110414 | BRACKET |
| MOUNTING PARTITION PANEL | ||
| 040 | A 2407112414 | BRACKET |
| MOUNTING PARTITION PANEL | ||
| 040 | A 2407112714 | BRACKET |
| MOUNTING PARTITION PANEL | ||
| 040 | A 2407112814 | BRACKET |
| MOUNTING PARTITION PANEL | ||
| 045 | A 2407100031 | CONSOLE |
| PARTITION PANEL TO SIDE PANEL | ||
| 050 | N 304017008021 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE PANEL | ||
| M8X20 | ||
| 055 | N 913023008003 | NUT |
| BRACKET TO SIDE PANEL | ||
| Repalced by: N 000000003175 | ||
| 055 | N 000000003175 | NUT |
| BRACKET TO SIDE PANEL | ||
| M8 | ||
| 060 | N 000000000814 | TAPPING SCREW |
| BRACKET TO ROOF RAIL | ||
| 4.2X16 | ||
| 060 | N 000000000923 | TAPPING SCREW |
| BRACKET TO ROOF RAIL | ||
| 4.2 X 13 MM | ||
| 070 | A 0039948145 | LOCK NUT |
| AT PARTITION PANEL | ||
| 070 | A 0039948145 | LOCK NUT |
| AT PARTITION PANEL | ||
| 070 | A 0049940145 | LOCK NUT |
| BRACKET TO ROOF RAIL | ||
| Repalced by: A 0039948145 | ||
| 070 | A 0039948145 | LOCK NUT |
| BRACKET TO ROOF RAIL | ||
| 070 | A 0049940145 | LOCK NUT |
| ATTACHMENT PARTS | ||
| 080 | A 0039909897 | BLIND RIVET |
| BRACKET TO ROOF RAIL | ||
| 4X10 | ||
| 085 | N 304017006018 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE PANEL | ||
| M6X12 | ||
| 090 | N 009021006208 | WASHER |
| BRACKET TO SIDE PANEL | ||
| 6 MM | ||
| 100 | A 0049941545 | NUT RETAINER |
| PARTITION WALL TO SHELL CONSOLE | ||
| 110 | N 910112006003 | HEXAGON NUT |
| CENTER CONSOLE ON TUNNEL | ||
| M6 | ||
| 120 | N 304017006020 | HEXAGON HEAD BOLT |
| PARTITION WALL TO SHELL CONSOLE | ||
| M6X20 | ||
| 120 | N 304017006020 | HEXAGON HEAD BOLT |
| CONSOLE TO BRACKET | ||
| M6X20 | ||
| 150 | N 304017006016 | HEXAGON HEAD BOLT |
| WINDOW REGULATOR TO PARTITION PANEL | ||
| M6X16 | ||
| 160 | N 007991006040 | SCREW |
| WINDOW REGULATOR TO PARTITION PANEL | ||
| M6X16 | ||
| 170 | A 0119882478 | CLIP |
| PANELLING TO PARTITION PANEL | ||

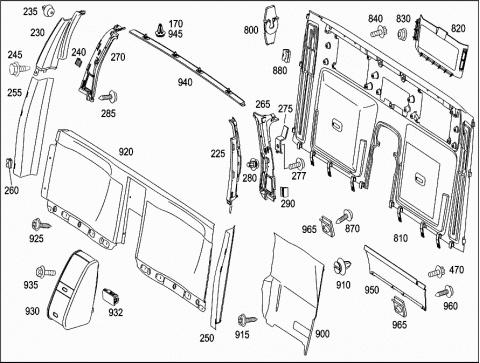

| 225 | A 2407101371 | PANELING |
| FRONT TOP LEFT | ||
| 225 | A 2407101371 | PANELING |
| FRONT TOP LEFT | ||
| 225 | A 2407102771 | PANELING |
| FRONT TOP LEFT | ||
| 225 | A 2407102771 | PANELING |
| FRONT TOP LEFT | ||
| 225 | A 2407102571 | PANELING |
| FRONT TOP LEFT | ||
| 225 | A 2407102971 | PANELING |
| FRONT TOP LEFT | ||
| 230 | A 2407101471 | PANELING |
| FRONT TOP RIGHT | ||
| 230 | A 2407101471 | PANELING |
| FRONT TOP RIGHT | ||
| 230 | A 2407102871 | PANELING |
| FRONT TOP RIGHT | ||
| 230 | A 2407102871 | PANELING |
| FRONT TOP RIGHT | ||
| 230 | A 2407102671 | PANELING |
| FRONT TOP RIGHT | ||
| 230 | A 2407103071 | PANELING |
| FRONT TOP RIGHT | ||
| 235 | A 0009945948 | TRIM CLIP |
| PANELLING TO PARTITION PANEL | ||
| 240 | A 2109881478 | CLIP |
| PANELLING TO B-PILLAR | ||
| 240 | A 2209880778 | CLIP |
| PANELLING TO B-PILLAR | ||
| 245 | A 1409900636 | BOLT |
| PANELLING TO B-PILLAR | ||
| M5X14 | ||
| 250 | A 2407101571 | PANELING |
| FRONT BOTTOM LEFT | ||
| 255 | A 2407101671 | PANELING |
| FRONT BOTTOM RIGHT | ||
| 260 | A 1686920034 | SPRING |
| PANELLING TO B-PILLAR | ||
| 260 | A 1686920034 | SPRING |
| PANELLING TO B-PILLAR | ||
| 260 | A 2106920334 | SPRING |
| PANELLING TO B-PILLAR | ||
| 265 | A 2407100371 | PANELING |
| REAR TOP, LEFT | ||
| 265 | A 2407102371 | PANELING |
| REAR TOP, LEFT | ||
| 270 | A 2407100471 | PANELING |
| REAR TOP, RIGHT | ||
| 270 | A 2407102471 | PANELING |
| REAR TOP, RIGHT | ||
| 275 | A 2408140101 | CLOTHES-HOOK |
| 277 | A 0019845629 | BOLT |
| FASTENING HOOK | ||
| 4X12 | ||
| 280 | A 0009945948 | TRIM CLIP |
| PANELLING TO PARTITION PANEL | ||
| 285 | N 000000000814 | TAPPING SCREW |
| PANELLING TO PARTITION PANEL | ||
| 4.2X16 | ||
| 290 | A 2109881478 | CLIP |
| PANELLING TO B-PILLAR | ||
| 290 | A 2209880778 | CLIP |
| PANELLING TO B-PILLAR | ||
| 300 | N 910105005002 | HEXAGON HEAD BOLT |
| PANELLING TO PARTITION PANEL | ||
| M5X16 | ||
| 440 | A 0119882378 | CLIP |
| MOUNTING PLATE COVER | ||
| 470 | N 910105005002 | HEXAGON HEAD BOLT |
| PANELLING TO PARTITION PANEL | ||
| M5X16 | ||
| 620 | A 1237580497 | INTERMEDIATE LAYER |
| AT PARTITION PANEL | ||
| 40 X 25 X 2 MM | ||
| 640 | A 0039948345 | FUSE |
| AT PARTITION PANEL | ||
| 660 | A 0049941245 | SHEET METAL NUT |
| AT PARTITION PANEL | ||
| M5 | ||
| 680 | A 0049941645 | LOCK NUT |
| AT PARTITION PANEL | ||
| M6 | ||
| 680 | A 0049941645 | LOCK NUT |
| ATTACHMENT PARTS | ||
| M6 | ||
| 700 | A 0049940345 | CLIP FASTENER |
| ATTACHMENT PARTS | ||
| 710 | A 2407110010 | GLASS PANE |
| PARTITION PANEL | ||
| 710 | A 2407110210 | GLASS PANE |
| PARTITION PANEL | ||
| 715 | A 2407110029 | RAIL |
| WINDOW RUN TOP | ||
| Repalced by: A 2407110229 | ||
| 715 | A 2407110229 | RAIL |
| WINDOW RUN TOP | ||
| 720 | A 2407250265 | SEALING RAIL |
| WINDOW RUN BOTTOM | ||
| 1266 MM | ||
| 720 | A 2407250565 | SEALING RAIL |
| WINDOW RUN BOTTOM | ||
| 150 MM | ||
| 740 | N 000000001475 | HEXALOBULAR BOLT |
| GLASS PANE TO WINDOW REGULATOR RAIL | ||
| M6X12 | ||
| 745 | A 2407100004 | WINDOW REGULATOR |
| PARTITION PANEL | ||
| 770 | N 000000001476 | HEXALOBULAR BOLT |
| ELECTRIC MOTOR BRACKET | ||
| M6X16 | ||
| 780 | N 910112006003 | HEXAGON NUT |
| ELECTRIC MOTOR BRACKET | ||
| M6 | ||
| 800 | A 2086940114 | BRACKET |
| MOUNTING PLATE COVER | ||
| 810 | A 2407100771 | PANELING |
| PARTITION WALL AT REAR | ||
| 820 | A 2408100149 | |
| LEFT | ||
| 820 | A 2408100749 | BAG |
| LEFT | ||
| 820 | A 2408100249 | |
| RIGHT | ||
| 820 | A 2408100649 | BAG |
| RIGHT | ||
| 830 | N 910112005000 | HEXAGON NUT |
| POCKET ON TRIM | ||
| M5 | ||
| 840 | N 910105005002 | HEXAGON HEAD BOLT |
| PANELLING TO PARTITION PANEL | ||
| M5X16 | ||
| 840 | N 910105005000 | HEXAGON HEAD BOLT |
| PANELLING TO PARTITION PANEL | ||
| M5X12 | ||

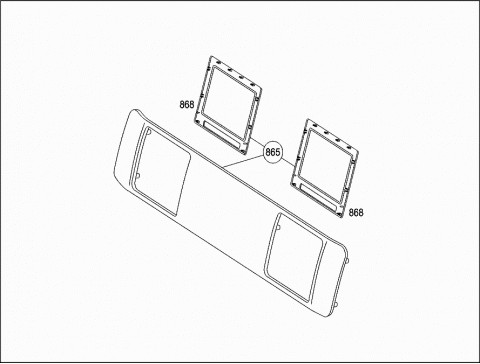

| 865 | A 2407104171 | PANELING |
| (PARTS KIT) MONITOR FRAME | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 865 | A 2407104271 | PANELING |
| (PARTS KIT) MONITOR FRAME | ||
| 865 | A 2407104371 | PANELING |
| (PARTS KIT) MONITOR FRAME | ||
| 868 | A 2408200812 | COVER FRAME |
| MONITOR | ||
| 868 | A 2408200612 | OUTER MOULDING |
| MONITOR | ||
| 870 | N 000000000814 | TAPPING SCREW |
| PANELLING TO PARTITION PANEL | ||
| 4.2X16 | ||
| 880 | A 0009917070 | SPRING CLAMP |
| PANELLING TO B-PILLAR | ||
| 880 | A 2106920334 | SPRING |
| PANELLING TO B-PILLAR | ||
| 900 | A 2407100171 | PANELING |
| FRONT LEFT | ||
| 900 | A 2407100271 | PANELING |
| FRONT RIGHT | ||
| 910 | A 0119882378 | CLIP |
| PANELLING TO PARTITION PANEL | ||
| 910 | A 0009945948 | TRIM CLIP |
| PANELLING TO PARTITION PANEL | ||
| 915 | N 000000000814 | TAPPING SCREW |
| PANELLING TO PARTITION PANEL | ||
| 4.2X16 | ||
| 920 | A 2407100071 | PANELING |
| FRONT CENTRAL | ||
| 920 | A 2407103371 | PANELING |
| FRONT CENTRAL | ||
| 925 | N 000000000814 | TAPPING SCREW |
| PANELLING TO PARTITION PANEL | ||
| 4.2X16 | ||
| 930 | A 2408100041 | STORAGE BOX |
| FRONT CENTRAL | ||
| 932 | A 2408200021 | LAMP |
| LED | ||
| 935 | N 910105005002 | HEXAGON HEAD BOLT |
| STOWAGE BOX TO PARTITION WALL | ||
| M5X16 | ||
| 940 | A 2407120069 | PANEL |
| TOP FRONT | ||
| 945 | A 0119882378 | CLIP |
| MOUNTING PLATE COVER | ||
| 950 | A 2407100571 | PANELING |
| REAR BOTTOM LEFT | ||
| 950 | A 2407100571 | PANELING |
| REAR BOTTOM LEFT | ||
| 950 | A 2407100671 | PANELING |
| REAR BOTTOM RIGHT | ||
| 950 | A 2407100671 | PANELING |
| REAR BOTTOM RIGHT | ||
| 960 | N 000000000814 | TAPPING SCREW |
| FASTENING FOR LINING | ||
| 4.2X16 | ||
| 965 | A 0039948145 | LOCK NUT |
| FASTENING FOR LINING | ||
