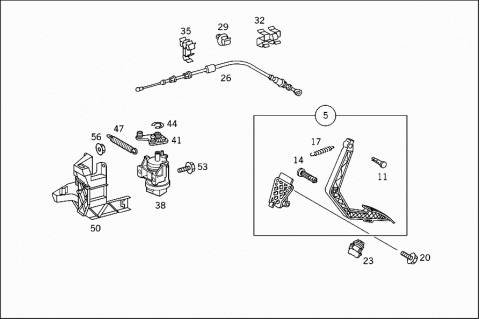

Transporto priemonė: ML 320; VIN numerio dalis: 163154
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1633000704 | ACCELERATOR PEDAL |
| 005 | A 1633000804 | ACCELERATOR PEDAL |
| 011 | A 1633010074 | PIN |
| 014 | A 1633010274 | PIN |
| 017 | A 6019930810 | SPRING |
| 020 | N 910105006020 | SCREW |
| ACCELERATOR PEDAL | ||
| 023 | A 1633010041 | STOP |
| ACCELERATOR PEDAL | ||
| 026 | A 1633010523 | CABLE |
| 026 | A 1633010623 | CABLE |
| 029 | A 0099887078 | CLIP |
| BATTERY CASE | ||
| 032 | A 0099886578 | CLIP |
| VACUUM LINE AND CABLE | ||
| 035 | A 0109887078 | CLIP |
| BRAKE LINE | ||
| 038 | A 0125423317 | SENDER UNIT |
| (PEDAL VALUE SENSOR) | ||
| 041 | A 1633010228 | LEVER |
| (REVERSING LEVER) | ||
| 041 | A 1633010328 | LEVER |
| (REVERSING LEVER) | ||
| 044 | N 006799007007 | LOCK PLATE |
| SENSOR | ||
| 047 | A 6019930810 | SPRING |
| 050 | A 1635422040 | BRACKET |
| SENSOR | ||
| 053 | N 910105006024 | HEXAGON HEAD BOLT |
| SENDER UNIT TO BRACKET | ||
| 056 | N 913023006001 | NUT |
| BRACKET TO FIRE WALL |
