Transporto priemonė: ML 420 CDI 4MATIC / ML 450 CDI 4MATIC; VIN numerio dalis: 164128

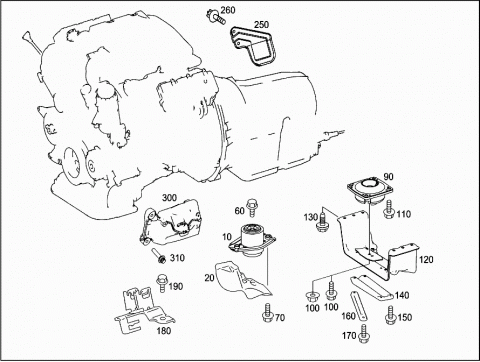

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2512403117 | ENGINE MOUNT |
| FRONT LEFT AND RIGHT | ||
| Repalced by: A 2512404417 | ||
| 010 | A 2512403217 | ENGINE MOUNT |
| FRONT LEFT AND RIGHT | ||
| Repalced by: A 2512404717 | ||
| 010 | A 2512403017 | ENGINE MOUNT |
| FRONT LEFT AND RIGHT | ||
| 010 | A 2512403017 | ENGINE MOUNT |
| FRONT LEFT AND RIGHT | ||
| Repalced by: A 2512404317 | ||
| 010 | A 2512404317 | ENGINE SUPPORT |
| FRONT LEFT AND RIGHT | ||
| 010 | A 2512402917 | ENGINE MOUNT |
| FRONT LEFT AND RIGHT | ||
| Repalced by: A 2512404417 | ||
| 010 | A 2512404417 | ENGINE SUPPORT |
| FRONT LEFT AND RIGHT | ||
| 010 | A 2512403417 | ENGINE MOUNT |
| FRONT LEFT AND RIGHT | ||
| Repalced by: A 2512404717 | ||
| 010 | A 2512404717 | ENGINE SUPPORT |
| FRONT LEFT AND RIGHT | ||
| 020 | A 2512400545 | SCREENING PLATE |
| ENGINE FRONT LEFT MOUNTING | ||
| Repalced by: A 2512400945 | ||
| 020 | A 2512400945 | SCREENING PLATE |
| ENGINE FRONT LEFT MOUNTING | ||
| 020 | A 2512400145 | PROTECTIVE PLATE |
| ENGINE FRONT LEFT MOUNTING | ||
| 020 | A 2512400145 | PROTECTIVE PLATE |
| ENGINE FRONT LEFT MOUNTING | ||
| 020 | A 2512400645 | SCREENING PLATE |
| ENGINE FRONT RIGHT MOUNTING | ||
| 020 | A 2512401045 | SCREENING PLATE |
| ENGINE FRONT RIGHT MOUNTING | ||
| 020 | A 2512400845 | SCREENING PLATE |
| ENGINE FRONT RIGHT MOUNTING | ||
| 020 | A 2512400045 | SCREENING PLATE |
| ENGINE FRONT RIGHT MOUNTING | ||
| 020 | A 1642400245 | SCREENING PLATE |
| ENGINE FRONT RIGHT MOUNTING | ||
| 020 | A 1642411234 | SCREENING PLATE |
| ENGINE FRONT LEFT MOUNTING | ||
| 020 | A 1642411134 | SCREENING PLATE |
| ENGINE FRONT RIGHT MOUNTING | ||
| 060 | N 000000003060 | SCREW-AND-WASHER ASSEMBLY |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M10X65 | ||
| 070 | N 910142010005 | HEXALOBULAR BOLT |
| ENGINE MOUNT, FRONT, TO SUBFRAME | ||
| M10X20 | ||
| 070 | N 910143006000 | HEXALOBULAR BOLT |
| SCREENING PLATE TO ENGINE SUPPORT, FRONT RIGHT | ||
| M6X12 | ||
| 090 | A 1662400218 | TRANSMISSION BEARING |
| TRANSMISSION,REAR | ||
| 090 | A 2512401718 | RUBBER MOUNT |
| TRANSMISSION,REAR | ||
| Repalced by: A 2512402518 | ||
| 090 | A 2512402518 | TRANSMISSION BEARING |
| TRANSMISSION,REAR | ||
| 090 | A 1662400118 | TRANSMISSION BEARING |
| TRANSMISSION,REAR | ||
| 090 | A 2512401618 | RUBBER MOUNT |
| TRANSMISSION,REAR | ||
| Repalced by: A 2512402418 | ||
| 090 | A 2512402418 | TRANSMISSION BEARING |
| TRANSMISSION,REAR | ||
| 090 | A 2512401818 | RUBBER MOUNT |
| TRANSMISSION,REAR | ||
| Repalced by: A 2512402618 | ||
| 090 | A 2512402618 | TRANSMISSION BEARING |
| TRANSMISSION,REAR | ||
| 090 | A 1662400318 | TRANSMISSION BEARING |
| TRANSMISSION,REAR | ||
| 090 | A 1662400318 | TRANSMISSION BEARING |
| TRANSMISSION,REAR | ||
| 090 | A 2512401818 | RUBBER MOUNT |
| TRANSMISSION,REAR | ||
| Repalced by: A 2512402618 | ||
| 090 | A 2512402618 | TRANSMISSION BEARING |
| TRANSMISSION,REAR | ||
| 090 | A 1662400218 | TRANSMISSION BEARING |
| TRANSMISSION,REAR | ||
| 090 | A 2512401718 | RUBBER MOUNT |
| TRANSMISSION,REAR | ||
| Repalced by: A 2512402518 | ||
| 090 | A 2512402518 | TRANSMISSION BEARING |
| TRANSMISSION,REAR | ||
| 100 | N 910143010012 | HEXALOBULAR BOLT |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| M10X30 | ||
| 100 | N 000000003275 | NUT |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| M10 | ||
| 110 | N 910105008014 | HEXAGON HEAD BOLT |
| BEARING TO TRANSMISSION CASE | ||
| M8X35 | ||
| 110 | N 910105008014 | HEXAGON HEAD BOLT |
| BEARING TO TRANSMISSION CASE | ||
| M8X35 | ||
| 120 | A 1642400302 | ENGINE SUPPORT |
| REAR | ||
| Repalced by: A 1662400602 | ||
| 120 | A 1662400602 | REAR ENGINE CROSS MEMBER |
| REAR | ||
| 120 | A 1642400402 | ENGINE SUPPORT |
| REAR | ||
| 120 | A 1662400902 | REAR ENGINE CROSS MEMBER |
| REAR | ||
| 130 | A 0009901517 | BOLT |
| ENGINE SUPPORT REAR TO BODYSHELL | ||
| M10X25 | ||
| 140 | A 1642420232 | REINFORCEMENT |
| REAR | ||
| 140 | A 1662420832 | STRUT |
| REAR | ||
| 150 | N 910143010011 | HEXALOBULAR BOLT |
| REINFORCEMENT FASTENING | ||
| M10X20-10.9 | ||
| 160 | A 1642420132 | REINFORCEMENT |
| REAR | ||
| 160 | A 1662420732 | STRUT |
| REAR | ||
| 170 | N 910143010011 | HEXALOBULAR BOLT |
| REINFORCEMENT FASTENING | ||
| M10X20-10.9 | ||
| 180 | A 6421500273 | BRACKET |
| ENGINE RIGHT SUPPORT | ||
| 180 | A 6421500273 | BRACKET |
| ENGINE RIGHT SUPPORT | ||
| 190 | N 000000001114 | HEXALOBULAR BOLT |
| BRACKET MOUNTING | ||
| M6X15 | ||
| 250 | A 1130180025 | SCREENING PLATE |
| OIL SUCTION PIPE | ||
| 260 | N 000000004310 | HEXAGON HEAD BOLT |
| ATTACHMENT SHIELD | ||
| M6X10 | ||
| 300 | A 2722235504 | ENGINE MOUNT |
| LEFT | ||
| 300 | A 2722235004 | ENGINE MOUNT |
| RIGHT | ||
| 310 | N 910105008014 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO CRANKCASE, LEFT | ||
| M8X35 | ||
| 310 | N 910105008014 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO CRANKCASE, RIGHT | ||
| M8X35 | ||
