Transporto priemonė: S350 CGI; VIN numerio dalis: 221157

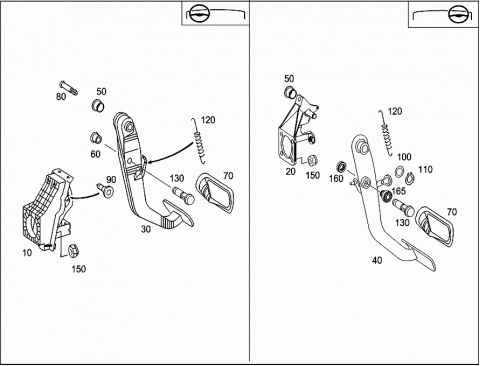

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2212900319 | BEARING BRACKET |
| 020 | A 2212900419 | BEARING BRACKET |
| 030 | A 2402900218 | PEDAL |
| BRAKE | ||
| 030 | A 2402900218 | PEDAL |
| BRAKE | ||
| 030 | A 2402900218 | PEDAL |
| BRAKE | ||
| 040 | A 2402900318 | PEDAL |
| BRAKE | ||
| 040 | A 2402900318 | PEDAL |
| BRAKE | ||
| 040 | A 2402900318 | PEDAL |
| BRAKE | ||
| 050 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 060 | A 2102920150 | BUSHING |
| BRAKE PEDAL | ||
| 070 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 070 | A 2302900082 | PAD |
| BRAKE PEDAL | ||
| 070 | A 2302900082 | PAD |
| BRAKE PEDAL | ||
| 080 | A 1682910374 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 090 | A 1682910055 | PLUG |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 100 | A 1152910076 | WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 110 | A 0079942041 | FUSE |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 120 | A 0009933411 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 120 | A 1409930510 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 130 | A 2042920074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 150 | N 000000003175 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 | ||
| 150 | N 000000003175 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 | ||
| 160 | A 1682920111 | CONNECTOR |
| TO BRAKE PEDAL | ||
| 165 | A 2302920011 | CONNECTOR |
| TO BRAKE PEDAL |
