Transporto priemonė: SLK 200 KOMPRESSOR; VIN numerio dalis: 171442

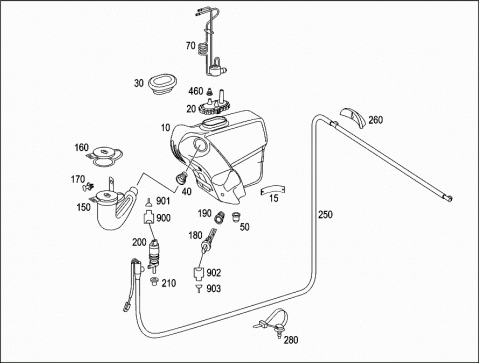

Grupė: 86 WASHER SYSTEM - 030 PANE WASHER,HEADLAMP WIPER/WASHER
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1718690120 | DASHPOT |
| Repalced by: A 1718690420 | ||
| 010 | A 1718690420 | DASHPOT |
| 010 | A 1718690220 | DASHPOT |
| 010 | A 1718690320 | DASHPOT |
| 010 | A 1718690420 | DASHPOT |
| 015 | A 1718690314 | RETAINING STRAP |
| RESERVOIR | ||
| 020 | A 1708690308 | COVER |
| RESERVOIR | ||
| 030 | A 1169870844 | EXPANSION PLUG |
| ON COVER | ||
| 040 | A 0009989401 | SEAL |
| CONNECTION BETWEEN TANK AND FILLERNECK | ||
| 050 | A 0099976181 | GROMMET |
| RESERVOIR TO WHEELHOUSE | ||
| 070 | A 1718300061 | HEATER ASSEMBLY |
| 150 | A 1718690017 | PIPE |
| FILLER NECK | ||
| 150 | A 1718600164 | FITTING |
| FILLER NECK | ||
| 160 | A 1718690108 | COVER |
| FILLER NECK | ||
| 170 | A 0009907892 | EXPANSION RIVET |
| MOUNT FILLER NECK | ||
| 180 | A 2205400045 | SWITCH |
| WATER LEVEL CONTROL SWITCH WINDSHIELD WASHER SYSTEM | ||
| 190 | A 2209971981 | GROMMET |
| SWITCH IN RESERVOIR | ||
| 200 | A 2108690821 | PUMP |
| PANE WASHER SYSTEM | ||
| 200 | A 2108690921 | PUMP |
| PANE WASHER SYSTEM | ||
| 210 | A 1239973681 | GROMMET |
| WINDSHIELD WASHER PUMP IN CONTAINER | ||
| 250 | A 1718600292 | HOSE |
| UNHEATED | ||
| 250 | A 1718600292 | HOSE |
| HEATED | ||
| Repalced by: A 1718600492 | ||
| 250 | A 1718600492 | HOSE |
| HEATED | ||
| 250 | A 1718302696 | HOSE |
| FROM ENGINE TO HEAT EXCHANGER | ||
| 260 | A 1710070099 | GROMMET |
| HOSE LINE | ||
| 280 | A 0059976290 | CABLE STRAP |
| HOSE FASTENING | ||
| 3.3 X 260 MM | ||
| 320 | A 2108691121 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 325 | A 2109870045 | PLUG |
| 19 MM | ||
| 330 | A 0109971181 | GROMMET |
| HEADLAMP CLEANING SYSTEM PUMP IN RESERVOIR | ||
| 340 | A 1718600192 | HOSE |
| PUMP TO NOZZLE | ||
| 340 | A 1718600392 | HOSE |
| PUMP TO NOZZLE | ||
| 350 | A 2308690024 | CONNECTOR |
| DISTRIBUTOR | ||
| 360 | A 2108690224 | CONNECTOR |
| TO RIGHT TELESCOPIC NOZZLE | ||
| 370 | A 2098690024 | HOSE CONNECTION FITTING |
| TO PUMP AND LEFT TELESCOPIC NOZZLE | ||
| 400 | A 1718600147 | TELESCOPIC NOZZLE |
| LEFT | ||
| 400 | A 1718600947 | TELESCOPIC NOZZLE |
| LEFT | ||
| 410 | A 1718600347 | TELESCOPIC NOZZLE |
| DOUBLE NOZZLE LEFT FOR HEADLAMP CLEANING SYSTEM | ||
| 415 | A 1718690114 | BRACKET |
| LIFTING NOZZLE, LEFT | ||
| 415 | A 1718690214 | BRACKET |
| LIFTING NOZZLE, RIGHT | ||
| 420 | A 1718600247 | TELESCOPIC NOZZLE |
| RIGHT | ||
| 420 | A 1718601047 | TELESCOPIC NOZZLE |
| RIGHT | ||
| 430 | A 1718600447 | TELESCOPIC NOZZLE |
| DOUBLE NOZZLE FOR HEADLAMP CLEANING SYSTEM | ||
| 440 | A 0019846429 | FILLISTER HEAD SCREW |
| TELESCOPIC NOZZLE TO LAMP UNIT | ||
| M5X16 | ||
| 450 | A 0059976290 | CABLE STRAP |
| HOSE FASTENING | ||
| 3.3 X 260 MM | ||
| 460 | A 0109971381 | GROMMET |
| ON COVER | ||
| 900 | A 0165454626 | PIN BUSHING HOUSING |
| WASHER FLUID PUMP | ||
| 2-PIN MCP2.8;M5/1 | ||
| 900 | A 0185450026 | PIN BUSHING HOUSING |
| WASHER FLUID PUMP HEADLAMPS 2-PIN | ||
| 2-PIN MCP2.8;M5/2 | ||
| 901 | A 0145458326 | FEMALE CONTACT |
| 0.5-1.0 MM2 MCP2.8 | ||
| 901 | A 0005402805 | REP.SET CONTACT |
| 2.5 MM2 JPT | ||
| 901 | A 0145458226 | CONTACT SPRING |
| WASHER FLUID PUMP HEADLAMPS 2-PIN | ||
| 1.5-2.5 MM2 MCP2.8;M5/2 | ||
| 902 | A 2105402081 | PIN BUSHING HOUSING |
| WASHER FLUID LEVEL SWITCH | ||
| 2-PIN MQS;S42 | ||
| 903 | A 0085456326 | FEMALE CONTACT |
| 0.5 - 0.75 MM2 MQS | ||
