Transporto priemonė: SLK 230 KOMPRESSOR; VIN numerio dalis: 170447

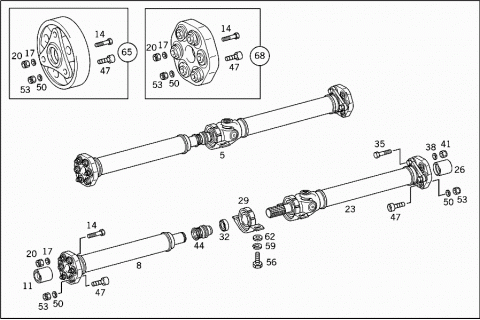

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1704100606 | PROPELLER SHAFT |
| Repalced by: A 1704101206 | ||
| 005 | A 1704101206 | PROPELLER SHAFT |
| 005 | A 1704101006 | PROPELLER SHAFT |
| 005 | A 1704100706 | PROPELLER SHAFT |
| Repalced by: A 1704101106 | ||
| 005 | A 1704101106 | PROPELLER SHAFT |
| 005 | A 1704100806 | PROPELLER SHAFT |
| Repalced by: A 1704101806 | ||
| 005 | A 1704101806 | PROPELLER SHAFT |
| 005 | A 1704100906 | PROPELLER SHAFT |
| Repalced by: A 1704101906 | ||
| 005 | A 1704101906 | PROPELLER SHAFT |
| 008 | A 1704100601 | PROPELLER SHAFT |
| Repalced by: A 1704101201 | ||
| 008 | A 1704101201 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1704101001 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1704100701 | PROPELLER SHAFT |
| Repalced by: A 1704101101 | ||
| 008 | A 1704101101 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1704100801 | PROPELLER SHAFT |
| Repalced by: A 1704101701 | ||
| 008 | A 1704101701 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1704100901 | PROPELLER SHAFT |
| Repalced by: A 1704101801 | ||
| 008 | A 1704101801 | PROPELLER SHAFT |
| FRONT | ||
| 011 | A 1244100732 | CENTERING BUSHING |
| FRONT | ||
| 014 | A 1249903901 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M10X1X 65 | ||
| 014 | A 1249903501 | BOLT W FLANGE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M10X1X60 | ||
| 014 | A 1249903501 | BOLT W FLANGE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M10X1X60 | ||
| 014 | A 1409902801 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X65 | ||
| 014 | A 1409904301 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X67.5 | ||
| 017 | A 1249904140 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 017 | A 1409900840 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 020 | A 1249901451 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 020 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 023 | A 1704100402 | PROPELLER SHAFT |
| REAR | ||
| 023 | A 1704100502 | PROPELLER SHAFT |
| Repalced by: A 1704100902 | ||
| 023 | A 1704100902 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1244100732 | CENTERING BUSHING |
| REAR | ||
| 029 | A 2024100581 | RUBBER BOOT BEARING |
| 029 | A 2024100481 | RUBBER BOOT BEARING |
| 032 | A 2019810025 | BALL BEARING |
| 032 | A 0039812325 | BALL BEARING |
| 035 | A 1249903701 | SCREW W HEXAGON SOCKET |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M10X1X50 | ||
| 035 | A 1409903301 | BOLT W FLANGE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X57.5 | ||
| 035 | A 1409904201 | SCREW |
| Repalced by: A 0039907112 | ||
| 035 | A 0039907112 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X60 | ||
| 038 | A 1249904140 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 038 | A 1409900840 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 041 | A 1249901451 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 041 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 044 | A 2024110297 | BOOT |
| 044 | A 2024110497 | BOOT |
| 047 | A 1249904001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M10X1X57.5 | ||
| 047 | A 1249903701 | SCREW W HEXAGON SOCKET |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M10X1X50 | ||
| 047 | A 1249904001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M10X1X57.5 | ||
| 047 | A 1409903201 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X1.5X52.5 | ||
| 047 | A 1409902901 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X1.5X55 | ||
| 047 | A 1409902901 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X1.5X55 | ||
| 047 | N 000912012198 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 12 X 1.5 X 60 | ||
| 047 | A 1249903701 | SCREW W HEXAGON SOCKET |
| PROPELLER SHAFT TO REAR AXLE | ||
| M10X1X50 | ||
| 047 | A 1249903701 | SCREW W HEXAGON SOCKET |
| PROPELLER SHAFT TO REAR AXLE | ||
| M10X1X50 | ||
| 047 | A 1409903301 | BOLT W FLANGE |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X1.5X57.5 | ||
| 047 | A 1409904201 | SCREW |
| Repalced by: A 0039907112 | ||
| 047 | A 0039907112 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| M 12 X 1.5 X 60 | ||
| 050 | A 1249904140 | WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 050 | A 1409900840 | WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 053 | A 1249901451 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 053 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 056 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 056 | N 304017008021 | SCREW |
| INTERMEDIATE BEARING TO FRAME | ||
| 059 | N 912004008102 | LOCK WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
| 062 | A 1249900440 | WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
| 065 | A 1704100147 | VIBRATION ABSORBER |
| PARTS KIT,FRONT | ||
| 065 | A 2024100147 | VIBRATION ABSORBER |
| PARTS KIT,FRONT | ||
| 065 | A 1704100047 | VIBRATION ABSORBER |
| PARTS KIT,FRONT | ||
| 065 | A 2024101947 | VIBRATION ABSORBER |
| PARTS KIT,FRONT | ||
| 068 | A 2024101115 | FLEXIBLE JOINT DISC |
| PARTS KIT,FRONT | ||
| 068 | A 2024100815 | FLEXIBLE JOINT DISC |
| PARTS KIT,FRONT | ||
| 068 | A 2104100915 | FLEXIBLE JOINT DISC |
| Repalced by: A 2104101315 | ||
| 068 | A 2104101315 | FLEXIBLE JOINT DISC |
| PARTS KIT,FRONT | ||
| 068 | A 2104100515 | FLEXIBLE JOINT DISC |
| PARTS KIT,FRONT | ||
| 068 | A 2104101515 | FLEXIBLE JOINT DISC |
| PARTS KIT,FRONT | ||
| 068 | A 2024101415 | FLEXIBLE JOINT DISC |
| PARTS KIT,FRONT | ||
| 068 | A 2024101515 | FLEXIBLE JOINT DISC |
| PARTS KIT,FRONT | ||
| 068 | A 2024101315 | FLEXIBLE JOINT DISC |
| PARTS KIT,REAR | ||
| 068 | A 2024100415 | FLEXIBLE JOINT DISC |
| PARTS KIT,REAR | ||
| A 2104100815 | FLEXIBLE JOINT DISC | |
| Repalced by: A 1704100015 | ||
| A 1704100015 | FLEXIBLE JOINT DISC | |
| PARTS KIT,REAR | ||
| 068 | A 2104101215 | FLEXIBLE JOINT DISC |
| Repalced by: A 1704100115 | ||
| 068 | A 1704100115 | FLEXIBLE JOINT DISC |
| PARTS KIT,REAR | ||
