Transporto priemonė: SLK 250 CDI; VIN numerio dalis: 172403
Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

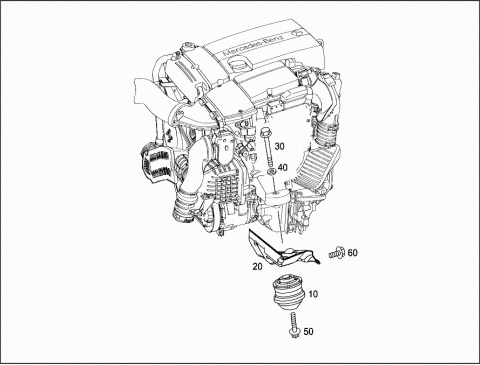

| 010 | A 1722400317 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 1722400417 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 010 | A 1722400517 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 1722400517 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 010 | A 1722400017 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 1722400117 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 010 | A 1722400217 | ENGINE SUPPORT |
| FRONT LEFT | ||
| Repalced by: A 1722400817 | ||
| 010 | A 1722400817 | ENGINE SUPPORT |
| FRONT LEFT | ||
| Repalced by: A 1722400917 | ||
| 010 | A 1722400917 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 1722400217 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| Repalced by: A 1722400817 | ||
| 010 | A 1722400817 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| Repalced by: A 1722400917 | ||
| 010 | A 1722400917 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 020 | A 1722400145 | SCREENING PLATE |
| LEFT | ||
| 020 | A 1722410234 | SCREENING PLATE |
| RIGHT | ||
| 020 | A 1722400045 | SCREENING PLATE |
| RIGHT | ||
| 020 | A 1722410434 | SCREENING PLATE |
| LEFT | ||
| 020 | A 1722410534 | SCREENING PLATE |
| RIGHT | ||
| 030 | N 304017010051 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M10X60 | ||
| 040 | N 000000003386 | WASHER |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 050 | A 2029902201 | BOLT |
| ENGINE MOUNTING TO CROSS MEMBER | ||
| M8X21 | ||
| 050 | A 0209900601 | BOLT AND WASHER ASSY. |
| ENGINE MOUNTING TO CROSS MEMBER | ||
| M8X19 | ||
| 060 | N 000000001114 | HEXALOBULAR BOLT |
| SHIELD TO ENGINE SUPPORT | ||
| M6X15 | ||

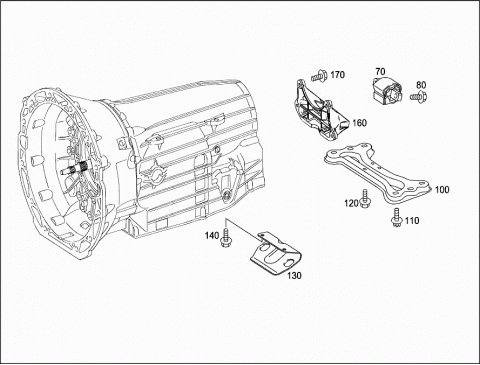

| 070 | A 2122401818 | ENGINE SUPPORT |
| REAR | ||
| 070 | A 2122400818 | RUBBER BUSHING |
| REAR | ||
| 070 | A 2122400818 | RUBBER BUSHING |
| REAR | ||
| 070 | A 2122401018 | ENGINE SUPPORT |
| REAR | ||
| 080 | N 000000000428 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO BRACKET | ||
| M10X35 | ||
| 100 | A 1722420001 | ENGINE MOUNT |
| REAR | ||
| 100 | A 1722420601 | ENGINE MOUNT |
| REAR | ||
| 100 | A 1722420301 | ENGINE MOUNT |
| REAR | ||
| 100 | A 1722420401 | ENGINE MOUNT |
| REAR | ||
| 100 | A 1722420501 | ENGINE MOUNT |
| REAR | ||
| 100 | A 1722420501 | ENGINE MOUNT |
| REAR | ||
| 110 | A 0019907436 | BOLT |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| Repalced by: A 0019903703 | ||
| 110 | A 0019903703 | BOLT |
| ENGINE SUPPORT TO SUBSTRUCTURE | ||
| M10X22 | ||
| 120 | N 000000000276 | HEXALOBULAR BOLT |
| ENGINE REAR MOUNTING TO ENGINE SUPPORT | ||
| M8X20 | ||
| 130 | A 1712420034 | SCREENING PLATE |
| TO TRANSMISSION END, TO ENGINE SUPPORT REAR | ||
| 140 | N 000000000276 | HEXALOBULAR BOLT |
| SHIELD TO TRANSMISSION END | ||
| M8X20 | ||
| 160 | A 2112420340 | BRACKET |
| AT TRANSMISSION | ||
| 160 | A 1722420040 | BRACKET |
| AT TRANSMISSION | ||
| Repalced by: A 1722420140 | ||
| 160 | A 1722420140 | BRACKET |
| AT TRANSMISSION | ||
| 170 | A 0049903412 | BOLT |
| BRACKET TO TRANSMISSION | ||
| M6X30 | ||
