Transporto priemonė: SLK 250 CDI; VIN numerio dalis: 172403

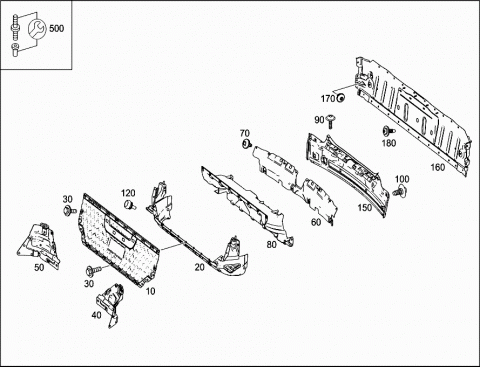

Grupė: 64 REAR END
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1726460030 | PARTITION |
| 020 | A 1716402014 | CROSS MEMBER |
| REAR PANEL | ||
| 030 | N 914007006047 | SCREW-AND-WASHER ASSEMBLY |
| CROSS MEMBER | ||
| M6X12 | ||
| 040 | A 1726400131 | CONSOLE |
| REAR PANEL,LEFT | ||
| 050 | A 1726400231 | CONSOLE |
| REAR PANEL,RIGHT | ||
| 060 | A 1716460162 | END PIECE |
| REAR BODY PANEL | ||
| 070 | N 000000001475 | HEXALOBULAR BOLT |
| MOUNTING, COVER | ||
| M6X12 | ||
| 080 | A 1726400057 | COVER |
| FUEL TANK | ||
| 090 | A 0109902604 | FILLISTER HEAD SCREW |
| COVERING TO CROSS MEMBER | ||
| 100 | N 000000006485 | PAN HEAD SCREW |
| COVERING TO CROSS MEMBER | ||
| 7X25 | ||
| 120 | A 1409880311 | BUFFER |
| ON CROSS MEMBER | ||
| 150 | A 1726400271 | REAR APRON |
| BOTTOM INSIDE | ||
| 160 | A 1727900135 | COVER |
| CROSS MEMBER | ||
| 170 | A 0049905112 | BOLT |
| COVERING TO CROSS MEMBER | ||
| M6X8 | ||
| 180 | N 000000006485 | PAN HEAD SCREW |
| MOUNTING, COVER | ||
| 7X25 | ||
| 500 | A 0009901210 | BOLT |
| REPAIR SOLUTION FOR RUPTURED WELDED PINS |
