Mercedes-benz | iAUTO.lt

Transporto priemonė: SLK 250 CDI; VIN numerio dalis: 172403

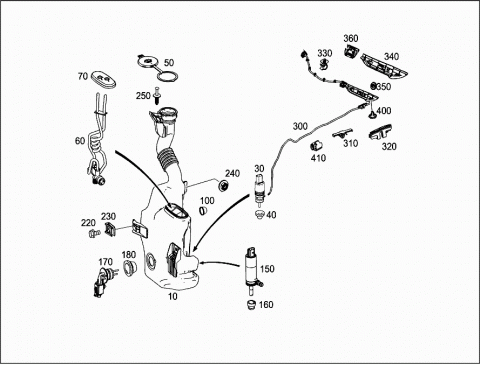

Grupė: 86 WASHER SYSTEM - 030 PANE WASHER,HEADLAMP WIPER/WASHER

#	Kodas	Pavadinimas
010	A 1728690020	FLUID CONTAINER
010	A 1728690120	FLUID CONTAINER
010	A 1728690220	FLUID CONTAINER
010	A 1728690320	FLUID CONTAINER
030	A 2218690121	PUMP
		FOR WINDSHIELD WASHER
040	A 0019987301	FORMED GROMMET
		BETWEEN RESERVOIR AND PUMP
050	A 1718690108	COVER
060	A 1728300061	HEAT EXCHANGER
070	A 1708690308	COVER
100	A 0099976181	GROMMET
		MOUNTING, TANK
150	A 2108691221	CENTRIFUGAL PUMP
		PARA HEADLAMP CLANING SYSTEM
160	A 0109971181	GROMMET
		BETWEEN RESERVOIR AND PUMP
170	A 2218209110	SWITCH
		FOR WASHING WATER STATUS
180	A 2038690098	SEAL
		BETWEEN RESERVOIR AND SWITCH
220	N 910143006000	HEXALOBULAR BOLT
		MOUNTING, TANK
		M6X12
230	A 0049941645	LOCK NUT
		FOR TANK TO BODY
		M6
230	A 0049941645	LOCK NUT
		FOR TANK TO BODY
		M6
240	A 0039905351	NUT
		M6
250	A 1249900492	EXPANSION RIVET
		MOUNTING, TANK
		6.5X18
300	A 1728600092	HOSE ASSEMBLY
		WITH NOZZLE
300	A 1728600592	HOSE ASSEMBLY
		WITH NOZZLE
300	A 1728600192	HOSE ASSEMBLY
		WITH NOZZLE
300	A 1728600692	HOSE ASSEMBLY
		WITH NOZZLE
310	A 0039954577	LINE FASTENER
320	A 0029956977	LINE FASTENER
330	A 0019958777	LINE HOLDER
340	A 1728690007	COVER MOLDING
350	A 0119887678	CLIP
360	A 1728690014	BRACKET
400	A 0009914940	EXPANSION RIVET
410	A 0039953477	LINE FASTENER
410	A 0039953477	LINE FASTENER
		HOOD RELEASE CABLE
500	A 1728600292	HOSE ASSEMBLY
		BETWEEN PUMP AND NOZZLE
510	A 0039952877	LINE FASTENER
		HOSE ATTACHMENT
550	A 1728600147	TELESCOPIC NOZZLE
		LEFT
560	A 1728600247	TELESCOPIC NOZZLE
		RIGHT
