Transporto priemonė: SLK 32 AMG KOMPRESSOR; VIN numerio dalis: 170466
Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

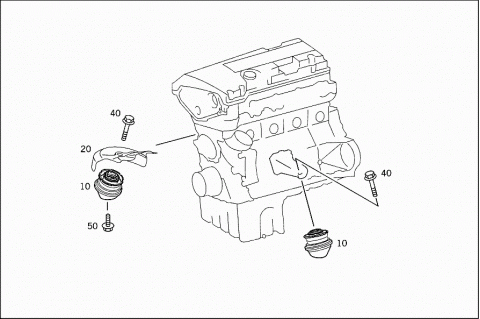

| 010 | A 2202401917 | RUBBER MOUNT |
| FRONT LEFT | ||
| 010 | A 2202402617 | RUBBER MOUNT |
| FRONT RIGHT | ||
| 010 | A 2032411113 | ENGINE MOUNT |
| FRONT LEFT | ||
| 010 | A 2032411113 | ENGINE MOUNT |
| FRONT RIGHT | ||
| 020 | A 1702410634 | SCREENING PLATE |
| FRONT LEFT | ||
| 020 | A 1702410734 | SCREENING PLATE |
| FRONT LEFT | ||
| 020 | A 1702410834 | SCREENING PLATE |
| FRONT RIGHT | ||
| 040 | N 914007010066 | SCREW-AND-WASHER ASSEMBLY |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M10X60 | ||
| Repalced by: N 304017010051 | ||
| 040 | N 304017010051 | HEXAGON HEAD BOLT |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M10X60 | ||
| 050 | A 2029902201 | BOLT |
| ENGINE FRONT MOUNTING TO FRAME | ||
| M8X21 | ||

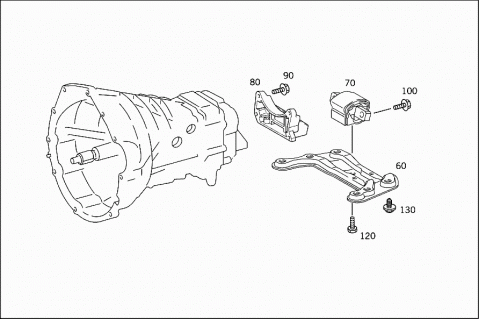

| 060 | A 1702420201 | ENGINE SUPPORT |
| REAR | ||
| 060 | A 1702420501 | ENGINE SUPPORT |
| REAR | ||
| 060 | A 1702420301 | ENGINE SUPPORT |
| REAR | ||
| 060 | A 1702420401 | ENGINE SUPPORT |
| REAR | ||
| 070 | A 2202400218 | ENGINE MOUNT |
| REAR | ||
| 080 | A 1402421340 | BRACKET |
| REAR | ||
| 090 | N 910143008003 | HEXALOBULAR BOLT |
| BRACKET TO TRANSMISSION | ||
| M8X30 | ||
| 100 | N 000000000428 | HEXAGON HEAD BOLT |
| ENGINE MOUNT TO MOUNT OR TRANSMISSION | ||
| M10X35 | ||
| 120 | N 910105008004 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M8X20 | ||
| Repalced by: N 000000000276 | ||
| 120 | N 000000000276 | HEXALOBULAR BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M8X20 | ||
| 130 | A 1249900612 | BOLT |
| ENGINE REAR SUPPORT TO FLOOR | ||
