Transporto priemonė: SLK 32 AMG KOMPRESSOR; VIN numerio dalis: 170466

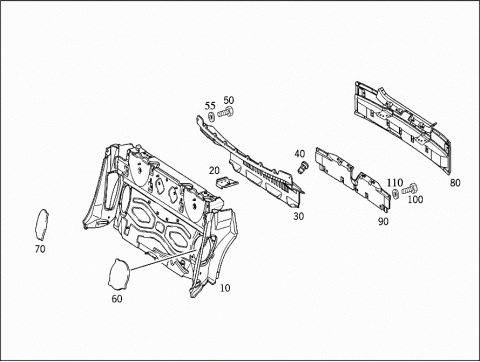

Grupė: 64 REAR END
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1706400360 | REAR PANEL |
| 020 | A 1706400131 | CONSOLE |
| ROOF,LEFT | ||
| 020 | A 1706400231 | CONSOLE |
| ROOF,RIGHT | ||
| 030 | A 1706400057 | COVER |
| FUEL TANK | ||
| Repalced by: A 1706400157 | ||
| 030 | A 1706400157 | COVER |
| FUEL TANK | ||
| 040 | A 0009844221 | RIVETED NUT |
| ROLLER BLIND TO REAR PANEL COVERING, TOP | ||
| 050 | N 304017006020 | HEXAGON HEAD BOLT |
| COVERING TO BODY | ||
| M6X20 | ||
| 055 | N 000125006449 | WASHER |
| COVERING TO BODY | ||
| 060 | A 1706460134 | COVER |
| REAR PANEL,BOTTOM LEFT | ||
| 070 | A 1706460234 | COVER |
| REAR PANEL,BOTTOM RIGHT | ||
| 080 | A 1706100014 | CROSS MEMBER |
| REAR,INCLUDING REAR CENTER PANEL | ||
| 090 | A 1706460062 | END PIECE |
| REAR BODY PANEL | ||
| 100 | N 304017006020 | HEXAGON HEAD BOLT |
| END PIECE TO REAR BODY PANEL | ||
| M6X20 | ||
| 110 | N 000125006421 | WASHER |
| END PIECE TO REAR BODY PANEL | ||
| Repalced by: N 000125006449 | ||
| 110 | N 000125006449 | WASHER |
| END PIECE TO REAR BODY PANEL | ||
