Transporto priemonė: SLR COUPE; VIN numerio dalis: 199376

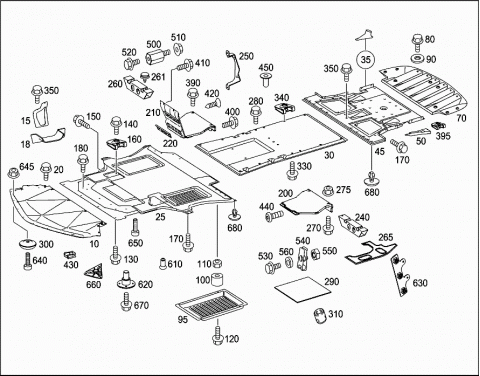

Grupė: 61 SUBSTRUCTURE - 015 FRONT FLOOR

#	Kodas	Pavadinimas
010	A 1996160352	BOTTOM
		FRONT
010	A 1996161552	FLOOR PANEL
		FRONT
015	A 1996100119	WEB
		FRONT LEFT
015	A 1996140137	WEB
		LEFT FRONT FLOOR
	Repalced by: A 1996100119
015	A 1996100219	WEB
		FRONT RIGHT
015	A 1996140037	WEB
		RIGHT FRONT FLOOR
	Repalced by: A 1996100219
018	A 1996160233	CONNECTION
		RIGHT
018	A 1996160133	CONNECTION
		LEFT
020	N 910143006001	HEXALOBULAR BOLT
		M6X16
025	A 1996100155	BOTTOM
		ENGINE COMPARTMENT COVERING
025	A 1996100355	SUBFLOOR PROTECTION
		ENGINE COMPARTMENT COVERING
		SPORTSPACK
	Repalced by: A 1996100855
025	A 1996100855	FLOOR PANEL
		ENGINE COMPARTMENT COVERING
025	A 1996100955	FLOOR PANEL
		ENGINE COMPARTMENT COVERING
		ELV1 - CR6-FREI*
030	A 1996160053	BOTTOM
		TUNNEL CENTER
030	A 1996160253	BOTTOM
		TUNNEL CENTER
030	A 1996160253	BOTTOM
		TUNNEL CENTER
035	A 1996100255	FLOOR PANEL
		REAR
035	A 1996100455	SUBFLOOR PROTECTION
		REAR
035	A 1996100755	FLOOR PANEL
		REAR
045	A 1996160252	BOTTOM
		REAR
050	A 1996160552	BOTTOM
		LEFT
050	A 1996160652	BOTTOM
		RIGHT
070	A 1998800036	AIR BAFFLE
		REAR
070	A 1998800936	AIR BAFFLE
		REAR
080	A 0029903305	BOLT
		REAR LEFT AND RIGHT
		M5X10
080	A 0029903305	BOLT
		REAR LEFT AND RIGHT
		M5X10
080	A 0029903305	BOLT
		M5X10
080	A 0029909705	BOLT
		REAR FLOOR
	Repalced by: A 0029903305
080	A 0029903305	BOLT
		REAR FLOOR
		M5X10
080	A 0029909705	BOLT
		REAR FLOOR
	Repalced by: A 0029903305
080	A 0029903305	BOLT
		REAR FLOOR
		M5X10
080	A 0029903305	BOLT
		REAR FLOOR
		M5X10
090	A 0019901282	WASHER
		ON FLOOR
090	A 0019901282	WASHER
		ON FLOOR
095	A 1996160027	HEAT SHIELD
		FLOOR
100	A 1996160190	SPACER
		TO FRONT FLOOR
110	N 913023005002	NUT
		ON FLOOR
		M5
120	N 910105005003	HEXAGON HEAD BOLT
		ON FLOOR
		M5X20
130	N 910143006001	HEXALOBULAR BOLT
		ENGINE COMPARTMENT COVERING
		M6X16
140	N 910143008002	HEXALOBULAR BOLT
		ENGINE COMPARTMENT COVERING
		M8X25
150	N 000000001476	HEXALOBULAR BOLT
		ENGINE COMPARTMENT COVERING
		M6X16
160	A 0039948545	LOCK NUT
		ENGINE COMPARTMENT COVERING
		4.8/0.5-2.5 MM
170	N 910105010009	HEXAGON HEAD BOLT
		ENGINE COMPARTMENT COVERING
		M10X25
180	N 000000000276	HEXALOBULAR BOLT
		ENGINE COMPARTMENT COVERING
		M8X20
200	A 1996100101	FLOOR ASSEMBLY
		LEFT
200	A 1996100101	FLOOR ASSEMBLY
		LEFT
200	A 1996100301	FLOOR ASSEMBLY
		LEFT
200	A 1996100901	SUBSTRUCTURE
		LEFT
200	A 1996101155	FLOOR ASSEMBLY
		LEFT
210	A 1996100201	FLOOR ASSEMBLY
		RIGHT
	Repalced by: A 1996100601
210	A 1996100601	FLOOR ASSEMBLY
		RIGHT
210	A 1996100801	SUBSTRUCTURE
		RIGHT
210	A 1996100201	FLOOR ASSEMBLY
		RIGHT
210	A 1996100401	FLOOR ASSEMBLY
		RIGHT
		SPORTSPACK
210	A 1996101201	SUBSTRUCTURE
		RIGHT
220	A 1996160752	BOTTOM
		LEGROOM,RIGHT
240	A 1996160452	BOTTOM
		REINFORCEMENT
250	A 1996160013	FLOOR ASSEMBLY
		STAY
260	A 1996160952	FLOOR PANEL
		REINFORCEMENT
261	A 0009911895	CLIP
265	A 1996161052	FLOOR PANEL
		REINFORCEMENT
270	N 910105005002	HEXAGON HEAD BOLT
		FLOOR
		M5X16
275	N 913023005002	NUT
		FLOOR
		M5
280	N 000000002193	HEXALOBULAR BOLT
		FLOOR
		M6X16
290	A 1996110511	PLATE
		LEFT
290	A 1996110411	PLATE
		RIGHT
300	A 1995240001	STOP
		AT FRONT UNDERRIDE GUARD
		SKID-BLOCK
310	A 1996110017	BUSHING
		LEFT AND RIGHT
330	N 910143006001	HEXALOBULAR BOLT
		CENTRAL FLOOR
		M6X16
340	A 0039948545	LOCK NUT
		REAR FLOOR
		4.8/0.5-2.5 MM
340	A 0039948545	LOCK NUT
		REAR FLOOR
		4.8/0.5-2.5 MM
350	N 910143006003	HEXALOBULAR BOLT
		REAR FLOOR
		M6X25
	Repalced by: N 000000003648
350	N 000000003648	HEXALOBULAR BOLT
		REAR FLOOR
		M6X25
390	N 910143006000	HEXALOBULAR BOLT
		FLOOR
		M6X12
395	A 0009904356	CLIP NUT
		REAR FLOOR
400	A 0029909705	BOLT
		FLOOR
		M6X16
410	N 910143006001	HEXALOBULAR BOLT
		FLOOR
		M6X16
420	A 0029904505	BOLT
		FLOOR
		M6X16
420	A 0039905305	BOLT
		FLOOR
430	A 0049941645	LOCK NUT
		FLOOR
		M6
430	A 0009913895	CLIP
440	A 0029902905	BOLT
450	A 0009983605	GROMMET
		FLOOR
500	A 0009901516	THREADED PIN
		TO UNDERBODY SHIELD
510	N 913023005002	NUT
		TO UNDERBODY SHIELD
		M5
520	A 0149908901	BOLT
		COVERING TO COVERING
		M5X12
530	A 0029903405	BOLT
		M5X10
540	A 0049941245	SHEET METAL NUT
		TO UNDERBODY SHIELD
		M5
550	A 0019909854	NUT
		TO UNDERBODY SHIELD
		M5
560	A 1997950396	WASHER
		TO UNDERBODY SHIELD
		M5X12.7X1
610	A 0009910039	RIVET
620	A 1999970219	HEADLESS SETSCREW
630	A 1996160108	PLATE
		ON TUNNEL
640	A 1997580443	STOP
		LEFT AND RIGHT
		M6X30;SKID-BLOCK
645	N 000000003175	NUT
		BUMPER
		M8;SKID-BLOCK
650	A 1997580443	STOP
		LEFT AND RIGHT
		M6X30
660	A 1997931188	SPOILER
		INSIDE LEFT
660	A 1997931288	SPOILER
		INSIDE RIGHT
670	N 000000003613	PAN HEAD SCREW
		TO UNDERFLOOR
		M 6X40
680	A 0009983250	STOP PLUG
		JACKING SOCKET,FRONT AND REAR
690	N 000000001476	HEXALOBULAR BOLT
		COVERING TO FRONT BUMPER
		M6X16
700	N 000000003504	HEXAGON HEAD BOLT
		FRONT COVERING
		M6 X 25
710	N 000125006449	WASHER
		FRONT COVERING
720	N 304017006052	HEXAGON HEAD BOLT
		FRONT CENTRAL INSIDE
		M6 X 35
730	N 910143008002	HEXALOBULAR BOLT
		BASE, CENTER FRONT
		M8X25
740	N 910143010012	HEXALOBULAR BOLT
		BASE, CENTER REAR
		M10X30
750	N 000000000276	HEXALOBULAR BOLT
		BASE, CENTER FRONT
		M8X20
760	N 000000003503	HEXAGON HEAD BOLT
		CENTRAL FLOOR
		16X16
770	A 0019901282	WASHER
		CENTRAL FLOOR
780	N 000000000461	TAPPING SCREW
		CENTRAL FLOOR
		4.8X16
790	A 0149909601	BOLT
		TUNNEL CENTER
800	A 0149909601	BOLT
		CENTER AND REAR FLOOR
800	N 910105010009	HEXAGON HEAD BOLT
		CENTER AND REAR FLOOR
		M10X25
805	A 0019901282	WASHER
810	N 910105008012	HEXAGON HEAD BOLT
		REAR FLOOR
		M8X30
820	A 0149909601	BOLT
		REAR FLOOR
830	A 0009902800	BOLT
		REAR FLOOR
		10X40
840	N 000000003503	HEXAGON HEAD BOLT
		REAR FLOOR
		16X16
850	A 0019901282	WASHER
		REAR FLOOR
860	N 000000000461	TAPPING SCREW
		REAR FLOOR
		4.8X16
870	N 000000000461	TAPPING SCREW
		REAR FLOOR AND DIFFUSOR
		4.8X16
880	N 000000003549	HEXAGON HEAD BOLT
		REAR FLOOR
		5X12
890	A 1997952196	PAD
		REAR FLOOR
900	A 0009904702	BOLT
		BUMPER BOTTOM LEFT AND RIGHT
		M6X20
910	A 0009904802	BOLT
		REAR BUMPER
		M6X16;DIFFUSER
