Transporto priemonė: SLR MCLAREN; VIN numerio dalis: 199976

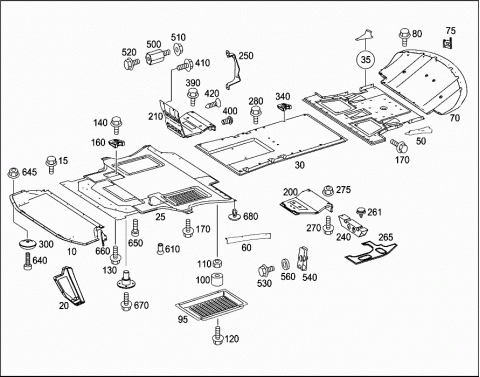

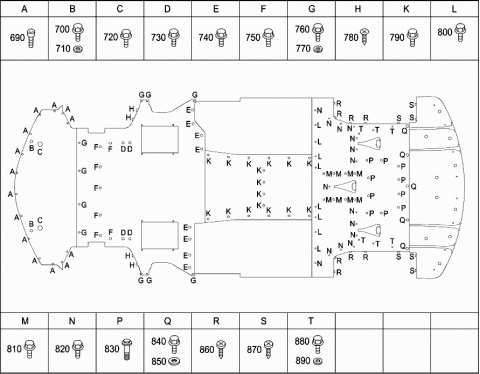

Grupė: 61 SUBSTRUCTURE - 015 FRONT FLOOR

#	Kodas	Pavadinimas
010	A 1996162252	FLOOR PANEL
		FRONT
015	N 910143006001	HEXALOBULAR BOLT
		M6X16
020	A 1996140337	REINFORCEMENT PLATE
		FRONT LEFT
020	A 1996140237	REINFORCEMENT PLATE
		FRONT RIGHT
025	A 1996101255	FLOOR PANEL
		ENGINE COMPARTMENT COVERING
030	A 1996160253	BOTTOM
		TUNNEL CENTER
035	A 1996100755	FLOOR PANEL
		REAR
050	A 1996160552	BOTTOM
		LEFT
050	A 1996160652	BOTTOM
		RIGHT
060	A 1996190111	GUIDE PLATE
		LEFT
060	A 1996190011	GUIDE PLATE
		RIGHT
070	A 1998840758	AIR BAFFLE
		REAR
075	A 1998310328	RETAINING CLAMP
		AT AIR GUIDE
080	A 0029903305	BOLT
		REAR LEFT AND RIGHT
		M5X10
080	A 0029903305	BOLT
		M5X10
080	A 0029903305	BOLT
		REAR FLOOR
		M5X10
095	A 1996160027	HEAT SHIELD
		FLOOR
100	A 1996160190	SPACER
		TO FRONT FLOOR
110	N 913023005002	NUT
		ON FLOOR
		M5
120	N 910105005003	HEXAGON HEAD BOLT
		ON FLOOR
		M5X20
130	N 910143006001	HEXALOBULAR BOLT
		ENGINE COMPARTMENT COVERING
		M6X16
140	N 910143008002	HEXALOBULAR BOLT
		ENGINE COMPARTMENT COVERING
		M8X25
160	A 0039948545	LOCK NUT
		ENGINE COMPARTMENT COVERING
		4.8/0.5-2.5 MM
170	N 910105010009	HEXAGON HEAD BOLT
		ENGINE COMPARTMENT COVERING
		M10X25
200	A 1996100701	SUBSTRUCTURE
		LEFT
210	A 1996100501	SUBSTRUCTURE
		RIGHT
240	A 1996160452	BOTTOM
		REINFORCEMENT
250	A 1996160013	FLOOR ASSEMBLY
		STAY
261	A 0009911895	CLIP
265	A 1996162352	FLOOR PANEL
		REINFORCEMENT
270	N 910105005002	HEXAGON HEAD BOLT
		FLOOR
		M5X16
275	N 913023005002	NUT
		FLOOR
		M5
280	N 000000002193	HEXALOBULAR BOLT
		FLOOR
		M6X16
300	A 1995240001	STOP
		AT FRONT UNDERRIDE GUARD
		SKID-BLOCK
340	A 0039948545	LOCK NUT
		REAR FLOOR
		4.8/0.5-2.5 MM
390	N 910143006000	HEXALOBULAR BOLT
		FLOOR
		M6X12
400	N 000000003614	PAN HEAD SCREW
		FLOOR
		M6X12
410	N 910143006001	HEXALOBULAR BOLT
		FLOOR
		M6X16
420	A 0029904505	BOLT
		FLOOR
		M6X16
500	A 0009901516	THREADED PIN
		TO UNDERBODY SHIELD
510	N 913023005002	NUT
		TO UNDERBODY SHIELD
		M5
520	A 0149908901	BOLT
		COVERING TO COVERING
		M5X12
530	A 0039906305	PAN-HEAD SCREW
		M5 X 10 - SS*
540	A 0049941245	SHEET METAL NUT
		TO UNDERBODY SHIELD
		M5
560	A 1997950396	WASHER
		TO UNDERBODY SHIELD
		M5X12.7X1
610	A 0009910039	RIVET
640	A 1997580443	STOP
		LEFT AND RIGHT
		M6X30;SKID-BLOCK
645	N 000000003175	NUT
		BUMPER
		M8;SKID-BLOCK
650	A 1997580443	STOP
		LEFT AND RIGHT
		M6X30
660	A 1998850325	FRONT SPOILER
		LEFT
660	A 1998850425	FRONT SPOILER
		RIGHT
670	N 000000003613	PAN HEAD SCREW
		TO UNDERFLOOR
		M 6X40
680	A 0009983250	STOP PLUG
		JACKING SOCKET,FRONT AND REAR
690	N 000000001476	HEXALOBULAR BOLT
		COVERING TO FRONT BUMPER
		M6X16
700	N 000000003504	HEXAGON HEAD BOLT
		FRONT COVERING
		M6 X 25
710	N 000125006449	WASHER
		FRONT COVERING
720	N 304017006052	HEXAGON HEAD BOLT
		CENTER FRONT COVER
		M6 X 35
730	N 910143008002	HEXALOBULAR BOLT
		BASE, CENTER FRONT
		M8X25
740	N 910143010012	HEXALOBULAR BOLT
		BASE, CENTER REAR
		M10X30
750	N 000000000276	HEXALOBULAR BOLT
		BASE, CENTER FRONT
		M8X20
760	N 000000003503	HEXAGON HEAD BOLT
		CENTRAL FLOOR
		16X16
770	A 0019901282	WASHER
		CENTRAL FLOOR
780	N 000000000461	TAPPING SCREW
		CENTRAL FLOOR
		4.8X16
790	A 0149909601	BOLT
		TUNNEL CENTER
800	A 0149909601	BOLT
		CENTER AND REAR FLOOR
810	N 910105008012	HEXAGON HEAD BOLT
		REAR FLOOR
		M8X30
820	A 0149909601	BOLT
		REAR FLOOR
830	A 0009902800	BOLT
		REAR FLOOR
		10X40
840	N 000000003503	HEXAGON HEAD BOLT
		REAR FLOOR
		16X16
850	A 0019901282	WASHER
		REAR FLOOR
860	N 000000000461	TAPPING SCREW
		REAR FLOOR
		4.8X16
870	N 000000000461	TAPPING SCREW
		REAR FLOOR AND DIFFUSOR
		4.8X16
880	N 000000003549	HEXAGON HEAD BOLT
		REAR FLOOR
		5X12
890	A 1997952196	PAD
		REAR FLOOR
