Transporto priemonė: SLR ROADSTER; VIN numerio dalis: 199476

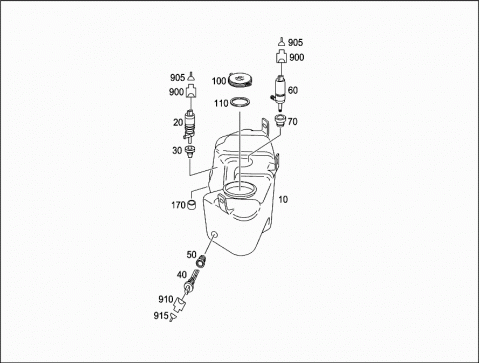

Grupė: 86 WASHER SYSTEM - 030 PANE WASHER,HEADLAMP WIPER/WASHER

#	Kodas	Pavadinimas
010	A 1998600060	DASHPOT
		WIPE/WASH SYSTEM
020	A 2108690821	PUMP
		PANE WASHER SYSTEM
030	A 1239973681	GROMMET
		HEADLAMP CLEANING SYSTEM PUMP IN RESERVOIR
040	A 2205400045	SWITCH
		WINDSHIELD WASHER WATER LEVEL
050	A 2209971981	GROMMET
		SWITCH IN RESERVOIR
060	A 2108691121	PUMP
		HEADLAMP CLEANING SYSTEM
070	A 0109971181	GROMMET
		WINDSHIELD WASHER PUMP IN CONTAINER
100	A 1998690072	CATCH
		RESERVOIR
110	A 2308690198	SEAL
		COVER
	A 0009980302	GROMMET
		AT COVERING
170	A 0009980801	GROMMET
		IN LONGITUDINAL MEMBER
310	A 2038600547	NOZZLE
		LEFT
315	A 1708601747	NOZZLE
320	A 2038600647	NOZZLE
		RIGHT
325	A 1708601847	NOZZLE
400	A 1998600010	FIXTURE
		PIPE LINES
	Repalced by: A 1998600110
400	A 1998600110	FIXTURE
		PIPE LINES
410	A 1995510056	PIPE
		HEADLAMP CLEANING SYSTEM
420	A 1998691194	HOSE
		PIPE LINE CONNECTION
470	A 1998600392	HOSE LINE
		CONNECTION
		ZB SCHLAUCHLEITUNG
490	A 1998690694	HOSE
		FROM HOSE TO TANK
500	A 2088690024	CONNECTOR
		CLUTCH
510	A 1998310428	INTERMEDIATE PIECE
		PUMP TO NOZZLE
520	A 1998691394	HOSE
		LEFT NOZZLE
530	A 1998691494	HOSE
		RIGHT NOZZLE
540	A 1998320056	DISTRIBUTOR
		Y-SHAPE
550	A 1998691594	HOSE
		FROM HOSE TO TANK
600	A 1998690097	PAD
		HEADLAMP CLEANING SYSTEM
650	N 000000003765	HEXALOBULAR BOLT
		HEADLAMP CLEANING SYSTEM
		M6X20
650	N 910105005003	HEXAGON HEAD BOLT
		HEADLAMP CLEANING SYSTEM
		M5X20
650	N 910143006001	HEXALOBULAR BOLT
		HEADLAMP CLEANING SYSTEM
		M6X16
650	A 0149908901	BOLT
		HEADLAMP CLEANING SYSTEM
		M5X12
650	N 304017008038	HEXAGON HEAD BOLT
		HEADLAMP CLEANING SYSTEM
		8X20
650	A 0149909601	BOLT
660	N 913023005002	NUT
		HEADLAMP CLEANING SYSTEM
		M5
680	A 0009956577	LINE HOLDER
		HEADLAMP CLEANING SYSTEM
690	A 0009950442	CLAMP
		HEADLAMP CLEANING SYSTEM
710	A 0009951990	CABLE STRAP
		HEADLAMP CLEANING SYSTEM
		4.8 X 300 MM
720	A 1994210294	BRACKET
		HEADLAMP CLEANING SYSTEM
	Repalced by: A 1994212094
720	A 1994212094	BRACKET
		HEADLAMP CLEANING SYSTEM
730	A 1999970652	HOSE
		HEADLAMP CLEANING SYSTEM
740	A 0009980802	GROMMET
		HEADLAMP CLEANING SYSTEM
		22 MM
740	A 0009980902	GROMMET
		HEADLAMP CLEANING SYSTEM
		11 MM
760	A 0019901382	WASHER
		HEADLAMP CLEANING SYSTEM
770	A 0029928701	BUSHING
790	A 0019901882	WASHER
	Repalced by: A 0019901282
790	A 0019901282	WASHER
800	A 1998600392	HOSE LINE
		ZB SCHLAUCHLEITUNG
900	A 0165454626	PIN BUSHING HOUSING
		WINDSHIELD WASHING PUMP
		2-PIN MCP2.8;M5/1
900	A 0185450026	PIN BUSHING HOUSING
		HEADLAMP-WASHER PUMP
		2-PIN MCP2.8;M5/2
905	A 0145458326	FEMALE CONTACT
		0.5-1.0 MM2 MCP2.8
910	A 2105402081	PIN BUSHING HOUSING
		WASHER FLUID LEVEL SWITCH
		2-PIN MQS;S42
915	A 0085456326	FEMALE CONTACT
		0.5 - 0.75 MM2 MQS
950	A 0125458628	PIN BUSHING HOUSING
		HEATED WASHER NOZZLE
		2-PIN RK2.5;R2/1
955	A 0025455226	CONTACT BUSHING
		2.5 MM2
