Transporto priemonė: SLS AMG; VIN numerio dalis: 197377
Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

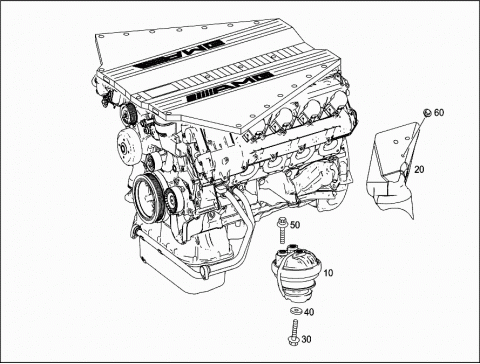

| 010 | A 1972400117 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 010 | A 1972400117 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 020 | A 1972410134 | SHIELDING |
| ENGINE MOUNT LEFT | ||
| 020 | A 1972410234 | SHIELDING |
| ENGINE MOUNTING,RIGHT | ||
| 030 | N 910105008014 | HEXAGON HEAD BOLT |
| ENGINE MOUNT AT FRAME-TYPE INTEGRAL SUPPORT | ||
| M8X35 | ||
| 040 | A 1159905240 | WASHER |
| ENGINE MOUNT AT FRAME-TYPE INTEGRAL SUPPORT | ||
| 050 | N 910105008014 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M8X35 | ||
| 060 | A 0109907701 | BOLT |
| SHIELD AT LEFT FRONT ENGINE MOUNT | ||
| M6X16 | ||
| 060 | A 0109907701 | BOLT |
| SCREENING PLATE TO ENGINE SUPPORT, FRONT RIGHT | ||
| M6X16 | ||

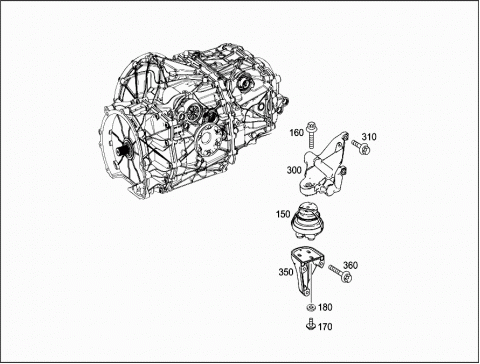

| 150 | A 1972400118 | TRANSMISSION BEARING |
| REAR LEFT | ||
| 150 | A 1972400118 | TRANSMISSION BEARING |
| REAR RIGHT | ||
| 160 | N 910105008019 | HEXAGON HEAD BOLT |
| TRANSMISSION MOUNT AT TRANSMISSION CARRIER | ||
| M8X50 | ||
| 170 | N 000000001875 | HEXALOBULAR BOLT |
| M8X20 | ||
| 180 | N 000000003250 | WASHER |
| TRANSMISSION MOUNT AT MOUNTING CONSOLE | ||
| 300 | A 1972410101 | TRANSMISSION CARRIER |
| FRONT LEFT | ||
| 300 | A 1972410201 | TRANSMISSION CARRIER |
| FRONT RIGHT | ||
| 310 | N 910105008014 | HEXAGON HEAD BOLT |
| CARRIER AT LEFT HOUSING | ||
| M8X35 | ||
| 310 | N 910105008014 | HEXAGON HEAD BOLT |
| CARRIER AT RIGHT HOUSING | ||
| M8X35 | ||
| 350 | A 1976426331 | FIXTURE |
| TRANSMISSION,REAR LEFT | ||
| 350 | A 1976426431 | FIXTURE |
| TRANSMISSION,REAR RIGHT | ||
| 360 | N 910143010017 | HEXALOBULAR BOLT |
| FASTENING MOUNTING LEFT | ||
| M10X55 | ||
| 360 | N 910143010017 | HEXALOBULAR BOLT |
| FASTENING MOUNTING RIGHT | ||
| M10X55 |
