Transporto priemonė: SLS AMG; VIN numerio dalis: 197377

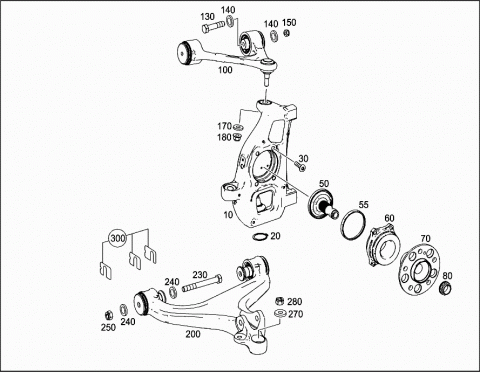

Grupė: 33 FRONT AXLE - 030 STEERING KNUCKLE AND CONTROL ARM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1973302520 | STEERING KNUCKLE |
| LEFT | ||
| 010 | A 1973303720 | STEERING KNUCKLE |
| LEFT | ||
| 010 | A 1973302420 | STEERING KNUCKLE |
| RIGHT | ||
| 010 | A 1973303820 | STEERING KNUCKLE |
| RIGHT | ||
| 020 | N 000471040002 | RETAINING RING |
| LEFT STEERING KNUCKLE | ||
| 020 | N 000471040002 | RETAINING RING |
| RIGHT STEERING KNUCKLE | ||
| 030 | A 0019900010 | BOLT |
| FLANGE TO LEFT STEERING KNUCKLE | ||
| 10X40 | ||
| 030 | A 0019900010 | BOLT |
| FLANGE TO RIGHT STEERING KNUCKLE | ||
| 10X40 | ||
| 050 | A 2043220122 | PIVOT PIN |
| LEFT | ||
| 050 | A 2043220122 | PIVOT PIN |
| RIGHT | ||
| 055 | A 2303570182 | IMPULSE RING |
| FRONT LEFT | ||
| 055 | A 2303570182 | IMPULSE RING |
| FRONT RIGHT | ||
| 060 | A 2119810227 | ANGULAR CONTACT BEARING |
| LEFT | ||
| 060 | A 2119810227 | ANGULAR CONTACT BEARING |
| RIGHT | ||
| 070 | A 2113570508 | FLANGE |
| LEFT | ||
| 070 | A 2113570508 | FLANGE |
| RIGHT | ||
| 080 | A 0003531373 | COLLAR NUT |
| FLANGE AT LEFT HUB | ||
| 080 | A 0003531373 | COLLAR NUT |
| FLANGE AT RIGHT HUB | ||
| 100 | A 1973300907 | CONTROL ARM |
| TOP LEFT | ||
| 100 | A 1973301007 | CONTROL ARM |
| TOP RIGHT | ||
| 130 | N 000000006686 | HEXAGON HEAD BOLT |
| TRANSVERSE CONTROL ARM LEFT TO BODY | ||
| M10X95 | ||
| 130 | N 000000006686 | HEXAGON HEAD BOLT |
| TRANSVERSE CONTROL ARM RIGHT TO BODY | ||
| M10X95 | ||
| 140 | A 0089904482 | SHIM |
| TRANSVERSE CONTROL ARM LEFT TO BODY | ||
| 10,5X28 | ||
| 140 | A 0089904482 | SHIM |
| TRANSVERSE CONTROL ARM RIGHT TO BODY | ||
| 10,5X28 | ||
| 150 | N 000000003279 | HEXAGON NUT |
| TRANSVERSE CONTROL ARM LEFT TO BODY | ||
| M10 | ||
| 150 | N 000000003279 | HEXAGON NUT |
| TRANSVERSE CONTROL ARM RIGHT TO BODY | ||
| M10 | ||
| 170 | A 1232420366 | WASHER |
| CROSS MEMBER, TOP, AT STEERING KNUCKLE, LEFT | ||
| 170 | A 1232420366 | WASHER |
| CROSS MEMBER, TOP, AT STEERING KNUCKLE, RIGHT | ||
| 180 | N 000000003276 | NUT |
| CROSS MEMBER, TOP, AT STEERING KNUCKLE, LEFT | ||
| M12X1.5 | ||
| 180 | N 000000003276 | NUT |
| CROSS MEMBER, TOP, AT STEERING KNUCKLE, RIGHT | ||
| M12X1.5 | ||
| 200 | A 1973300707 | CONTROL ARM |
| BOTTOM LEFT | ||
| 200 | A 1973300807 | CONTROL ARM |
| BOTTOM RIGHT | ||
| 230 | A 0019901700 | BOLT |
| BOTTOM LEFT TRANSVERSE CONTROL ARM AT FRAME-TYPE INTEGRAL SUPPORT | ||
| 230 | A 0019901700 | BOLT |
| BOTTOM RIGHT TRANSVERSE CONTROL ARM AT FRAME-TYPE INTEGRAL SUPPORT | ||
| 240 | A 2023330476 | WASHER |
| BOTTOM LEFT TRANSVERSE CONTROL ARM AT FRAME-TYPE INTEGRAL SUPPORT | ||
| 240 | A 2023330476 | WASHER |
| BOTTOM RIGHT TRANSVERSE CONTROL ARM AT FRAME-TYPE INTEGRAL SUPPORT | ||
| 250 | N 000000003281 | HEXAGON NUT |
| BOTTOM LEFT TRANSVERSE CONTROL ARM AT FRAME-TYPE INTEGRAL SUPPORT | ||
| M14X1,5 | ||
| 250 | N 000000003281 | HEXAGON NUT |
| BOTTOM RIGHT TRANSVERSE CONTROL ARM AT FRAME-TYPE INTEGRAL SUPPORT | ||
| M14X1,5 | ||
| 270 | A 2203330076 | SHIM |
| LOWER CONTROL ARM TO STEERING KNUCKLE, LEFT | ||
| 270 | A 2203330076 | SHIM |
| LOWER CONTROL ARM TO STEERING KNUCKLE, RIGHT | ||
| 280 | N 000000003281 | HEXAGON NUT |
| LOWER CONTROL ARM TO STEERING KNUCKLE, LEFT | ||
| M14X1,5 | ||
| 280 | N 000000003281 | HEXAGON NUT |
| LOWER CONTROL ARM TO STEERING KNUCKLE, RIGHT | ||
| M14X1,5 | ||
| 300 | A 1973570600 | TS ADJUSTING PLATE |
| (PARTS KIT) LEFT ADJUSTING PLATES | ||
| 300 | A 1973570600 | TS ADJUSTING PLATE |
| (PARTS KIT) RIGHT ADJUSTING PLATES |
