Transporto priemonė: SLS AMG; VIN numerio dalis: 197377

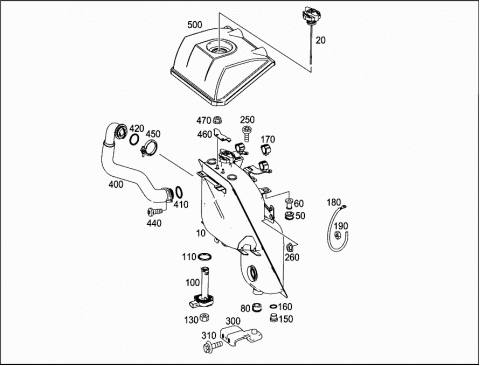

Grupė: 48 OIL TANK - 100 DRY SUMP LUBRICATION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1972300583 | OIL TANK |
| DRY SUMP LUBRICATION | ||
| Repalced by: A 1972300783 | ||
| 010 | A 1972300783 | OIL TANK |
| DRY SUMP LUBRICATION | ||
| 010 | A 1972300983 | OIL TANK |
| DRY SUMP LUBRICATION | ||
| 020 | A 1590180002 | FILLER CAP |
| OIL FILLER NECK | ||
| Repalced by: A 1590180202 | ||
| 020 | A 1590180202 | FILLER CAP |
| OIL FILLER NECK | ||
| 050 | A 1581410087 | ELASTOMER BEARING |
| SOUNDPROOFING | ||
| 060 | A 1580940050 | PILOT BUSHING |
| SOUNDPROOFING | ||
| 080 | A 2115040212 | RUBBER MOUNT |
| SOUNDPROOFING | ||
| 100 | A 1591530128 | FILL-LEVEL SENSOR |
| FLUID LEVEL INDICATOR | ||
| 110 | A 0209975245 | PROFILE SEALING RING |
| SENSOR AT OIL RESERVOIR | ||
| 130 | N 304032006009 | HEXAGON NUT |
| SENSOR AT OIL RESERVOIR | ||
| 150 | N 000908018011 | SCREW PLUG, FILLING |
| OIL DRAIN SCREW | ||
| M18 X 1.5 | ||
| 160 | N 007603018101 | SEALING RING |
| OIL DRAIN SCREW | ||
| 18X22-CU | ||
| 170 | A 0019955965 | CLAMP |
| BREATHER LINES | ||
| 23 MM | ||
| 180 | A 1165400441 | GROUND STRAP |
| L 200 MM | ||
| 190 | N 304032006009 | HEXAGON NUT |
| GROUND STRAP MOUNTING | ||
| 250 | N 000000001422 | HEXALOBULAR BOLT |
| OIL RESERVOIR AT CROSSMEMBER | ||
| M6X30 | ||
| 260 | N 910112006003 | HEXAGON NUT |
| OIL RESERVOIR AT CROSSMEMBER | ||
| M6 | ||
| 300 | A 1591830040 | BRACKET |
| OIL RESERVOIR AT FRAME-TYPE INTEGRAL SUPPORT | ||
| 310 | N 000000000276 | HEXALOBULAR BOLT |
| BRACKET TO FRAME TYPE INTEGRAL SUPPORT | ||
| M8X20 | ||
| 400 | A 1591800920 | OIL FEED LINE |
| OIL TANK | ||
| 410 | A 0309973048 | SEAL RING |
| BOTTOM | ||
| 420 | A 0149974945 | SEAL RING |
| TOP | ||
| 440 | N 000000001147 | HEXALOBULAR BOLT |
| OIL LINE ATTACHMENT | ||
| M6X20 | ||
| 450 | A 0009950933 | PROFILE CLAMP, 1-PIECE |
| LINE TO OIL TANK | ||
| 460 | A 1971800040 | BRACKET |
| ATTACHMENT OF VENT LINE | ||
| 470 | N 910112006003 | HEXAGON NUT |
| BRACKET MOUNTING | ||
| M6 | ||
| 500 | A 1590100067 | COVER |
| OIL TANK | ||
