Transporto priemonė: SLS AMG; VIN numerio dalis: 197377

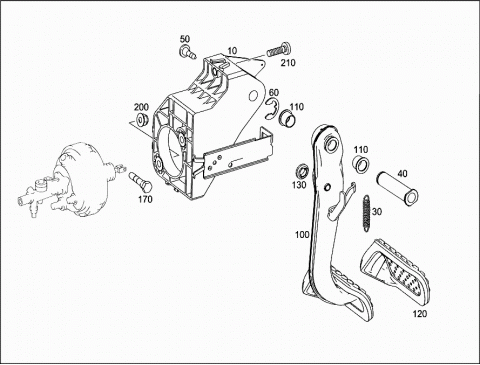

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1972900019 | PEDAL BEARING BRACKET |
| 010 | A 1972900119 | PEDAL BEARING BRACKET |
| 030 | A 0009933411 | SPRING |
| 040 | A 1682910374 | PIN |
| 040 | A 2112920274 | PIN |
| 050 | A 1682910055 | PLUG |
| 060 | N 006799015002 | CIRCLIP |
| 15MM | ||
| 100 | A 1972900018 | BRAKE PEDAL |
| 100 | A 1972900118 | BRAKE PEDAL |
| 110 | A 1242920050 | BUSHING |
| 120 | A 1702900182 | PAD |
| 130 | A 2302920011 | CONNECTOR |
| 170 | A 2042920074 | PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 200 | N 000000003175 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 | ||
| 210 | N 000000006424 | HEXALOBULAR BOLT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 210 | N 000000005754 | HEXALOBULAR BOLT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8X30 |
