Mercedes-benz | iAUTO.lt

Transporto priemonė: SLS AMG; VIN numerio dalis: 197377

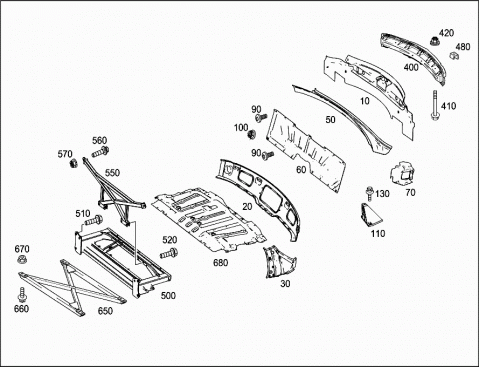

Grupė: 64 REAR END

#	Kodas	Pavadinimas
010	A 1976402114	CROSS MEMBER
		REAR BODY PANEL,BOTTOM
020	A 1976401007	WINDOW FRAME
		BOTTOM
030	A 1976400707	WINDOW FRAME
		LEFT
030	A 1976400807	WINDOW FRAME
		RIGHT
050	A 1976570441	RAIN CHANNEL
		CENTRAL
060	A 1976460330	REAR WALL
		CENTRAL
060	A 1976460430	REAR WALL
		CENTRAL
060	A 1976460430	REAR WALL
		CENTRAL
070	A 1976462325	SUPPORT
		LEFT ROOF DRIP MOLDING
070	A 1976462625	SUPPORT
		RIGHT ROOF DRIP MOLDING
090	A 0089907004	BOLT
		ON REAR PANEL
		M6X18,8
090	A 0089907004	BOLT
		ON REAR PANEL
		M6X18,8
100	N 000000003477	NUT
		REAR PANEL,LATERAL
		M6
110	A 1976426031	FIXTURE
		RIGHT SEAT BELT GUIDE
130	N 910143008002	HEXALOBULAR BOLT
		FASTENING MOUNTING LEFT
		M8X25
130	N 910143008002	HEXALOBULAR BOLT
		FASTENING MOUNTING RIGHT
		M8X25
400	A 1976100617	CROSS MEMBER
		BUMPER
400	A 1976100617	CROSS MEMBER
		BUMPER
410	N 910105010013	HEXAGON HEAD BOLT
		CROSSMEMBER TO CRASH BOX
		M10 X 120
420	N 000000004009	NUT-AND-WASHER ASSEMBLY
		CROSSMEMBER TO CRASH BOX
		M10
480	A 1976402831	CONSOLE
		TANK
500	A 1976200034	CROSS MEMBER
		REAR EXHAUST SYSTEM
510	N 000000006798	HEXAGON HEAD BOLT
		CROSSMEMBER MOUNTING
		M8X30
520	N 910143008003	HEXALOBULAR BOLT
		STIFFENING TO CROSS MEMBER
		M8X30
	Repalced by: N 000000006798
520	N 000000006798	HEXAGON HEAD BOLT
		STIFFENING TO CROSS MEMBER
		M8X30
550	A 1976120025	STIFFENING
		REAR EXHAUST SYSTEM
560	N 910143008003	HEXALOBULAR BOLT
		TOP REINFORCEMENT MOUNTING
		M8X30
570	N 000000003175	NUT
		TOP REINFORCEMENT MOUNTING
		M8
650	A 1976400219	STIFFENING
		REAR EXHAUST SYSTEM
660	N 910142008000	HEXALOBULAR BOLT
		STIFFENING TO BODY
		M8X20
670	N 910112008000	HEXAGON NUT
		STIFFENING TO BODY
		M8
680	A 1976403561	FLOOR ASSEMBLY
		REAR
680	A 1976400065	FLOOR ASSEMBLY
		REAR
680	A 1976400065	FLOOR ASSEMBLY
		REAR
