Transporto priemonė: SLS AMG; VIN numerio dalis: 197377

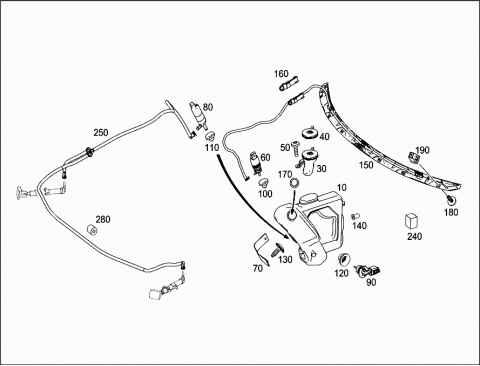

Grupė: 86 WASHER SYSTEM - 030 PANE WASHER,HEADLAMP WIPER/WASHER
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1978690020 | FLUID CONTAINER |
| 030 | A 1978690066 | FILLER NECK |
| PANE WASHER RESERVOIR | ||
| 040 | A 1718690108 | COVER |
| 050 | N 000000001145 | HEXALOBULAR BOLT |
| MOUNT FILLER NECK | ||
| M6X12 | ||
| 060 | A 2218690121 | PUMP |
| PANE WASHER SYSTEM | ||
| 070 | A 1718690314 | RETAINING STRAP |
| PUMP TO RESERVOIR FASTENING | ||
| 080 | A 2108691121 | PUMP |
| HEADLAMP CLEANING SYSTEM | ||
| 090 | A 2218209110 | SWITCH |
| WINDSHIELD WASHER WATER LEVEL | ||
| 100 | A 1239973681 | GROMMET |
| WASHER PUMP | ||
| 110 | A 0109971181 | GROMMET |
| HEADLAMP WIPER/WASHER PUMP | ||
| 120 | A 2038690098 | SEAL |
| BETWEEN RESERVOIR AND SWITCH | ||
| 130 | A 0109902504 | BOLT |
| M6X17,2 | ||
| 140 | A 0099976181 | GROMMET |
| REAR FASTENING | ||
| 150 | A 1978600092 | HOSE ASSEMBLY |
| PANE WASHER SYSTEM,NOZZLES | ||
| 160 | A 0029957577 | LINE FASTENER |
| HOSE ATTACHMENT | ||
| 170 | A 0009989401 | SEAL |
| HOSE GUIDE | ||
| 180 | N 000000000888 | TAPPING SCREW |
| HOSE LINE ATTACHMENT | ||
| 4.2X19 | ||
| 190 | A 0009983385 | BODY-BOUND NUT |
| HOSE LINE ATTACHMENT | ||
| 240 | A 1978690031 | CONSOLE |
| 240 | A 1978690131 | CONSOLE |
| 250 | A 1978600192 | HOSE ASSEMBLY |
| HEADLAMP CLEANING SYSTEM | ||
| 280 | A 2127660097 | INTERMEDIATE LAYER |
| HOSE LINE |
