Transporto priemonė: SLS AMG; VIN numerio dalis: 197478
Grupė: 64 REAR END

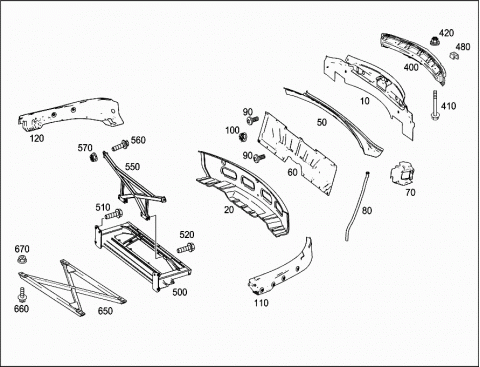

89675
# Kodas Pavadinimas
010 A 1976402114 CROSS MEMBER
REAR BODY PANEL,BOTTOM
020 A 1976401107 WINDOW FRAME
BOTTOM
050 A 1976570341 RAIN CHANNEL
CENTRAL
060 A 1976460330 REAR WALL
CENTRAL
060 A 1976460430 REAR WALL
CENTRAL
070 A 1976460725 SUPPORT
LEFT ROOF DRIP MOLDING
070 A 1976460825 SUPPORT
RIGHT ROOF DRIP MOLDING
080 A 1976391194 WATER DRAIN
LEFT ROOF DRIP MOLDING
080 A 1976391294 WATER DRAIN
RIGHT ROOF DRIP MOLDING
090 A 0089907004 BOLT
ON REAR PANEL
M6X18,8
100 N 000000003477 NUT
REAR PANEL,LATERAL
M6
110 A 1976470506 WINDOW FRAME
LEFT
120 A 1976470606 WINDOW FRAME
RIGHT
400 A 1976100617 CROSS MEMBER
BUMPER
400 A 1976100617 CROSS MEMBER
BUMPER
410 N 910105010013 HEXAGON HEAD BOLT
CROSSMEMBER TO CRASH BOX
M10 X 120
420 N 000000004009 NUT-AND-WASHER ASSEMBLY
CROSSMEMBER TO CRASH BOX
M10
480 A 1976402831 CONSOLE
TANK
500 A 1976200034 CROSS MEMBER
REAR EXHAUST SYSTEM
510 N 000000006798 HEXAGON HEAD BOLT
CROSSMEMBER MOUNTING
M8X30
520 N 910143008003 HEXALOBULAR BOLT
STIFFENING TO CROSS MEMBER
M8X30
Repalced by: N 000000006798
520 N 000000006798 HEXAGON HEAD BOLT
STIFFENING TO CROSS MEMBER
M8X30
550 A 1976120025 STIFFENING
REAR EXHAUST SYSTEM
560 N 910143008003 HEXALOBULAR BOLT
TOP REINFORCEMENT MOUNTING
M8X30
570 N 000000003175 NUT
TOP REINFORCEMENT MOUNTING
M8
650 A 1976400219 STIFFENING
REAR EXHAUST SYSTEM
660 N 910142008000 HEXALOBULAR BOLT
STIFFENING TO BODY
M8X20
670 N 910112008000 HEXAGON NUT
STIFFENING TO BODY
M8
