Transporto priemonė: SL 280 / SL 300; VIN numerio dalis: 230454

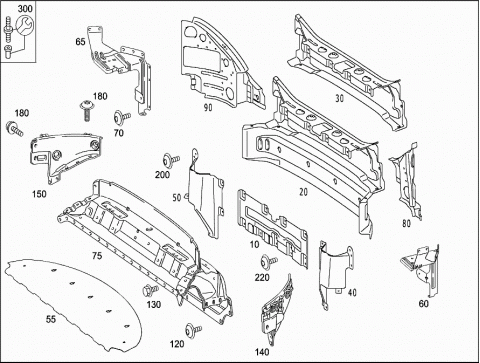

Grupė: 64 REAR END

#	Kodas	Pavadinimas
010	A 2306400371	REINFORCEMENT
		REAR BODY PANEL
020	A 2306400071	PANELLING
		REAR BODY PANEL,BOTTOM OUTSIDE
030	A 2306400471	PANELLING
		TOP
040	A 2306460731	CONSOLE
		LEFT
050	A 2306460831	CONSOLE
		RIGHT
055	A 2306400001	REAR PANEL
		REAR TOP
060	A 2306301131	CONSOLE
		LEFT
065	A 2306301231	CONSOLE
		RIGHT
070	N 000000001475	HEXALOBULAR BOLT
		CONSOLE ON REAR PANEL
		M6X12
075	A 2306400557	COVER
		CONSOLE ON REAR PANEL
080	A 2306301116	REINFORCEMENT
		TAIL LAMP TAKE-UP, LEFT
	A 2306100173	FRAME
		BATTERY MOUNTING
		BATTERIEBEFESTIGUNG
090	A 2306301216	REINFORCEMENT
		TAKE-UP DEVICE TAIL LAMP RIGHT
120	A 0029844929	BOLT
		COVER TO BODY-IN-WHITE
		M6X13
130	N 000000004310	HEXAGON HEAD BOLT
		COVER TO BODY-IN-WHITE
		M6X10
140	A 2306300705	GIRDER PART
		COVER TO BODY-IN-WHITE
150	A 2306300805	GIRDER PART
		COVER TO BODY-IN-WHITE
180	A 0029844929	BOLT
		CONNECTING PART TO REAR PANEL
		M6X13
180	A 0029844929	BOLT
		CONNECTING PART TO TANK
		M6X13
180	A 0029844929	BOLT
		TO LEFT B-PILLAR
		M6X13
180	A 0029844929	BOLT
		CONNECTING PART TO TANK
		M6X13
180	A 0029844929	BOLT
		TO RIGHT B PILLAR
		M6X13
200	N 000000001475	HEXALOBULAR BOLT
		TOP OUTER REAR-END CENTER ASSEMBLY
		M6X12
220	N 000000001475	HEXALOBULAR BOLT
		REAR BODY PANEL
		M6X12
220	N 000000001475	HEXALOBULAR BOLT
		REAR BODY PANEL
		M6X12
300	A 0009901210	BOLT
		REPAIR SOLUTION FOR RUPTURED WELDED PINS
