Transporto priemonė: SL 320; VIN numerio dalis: 129064

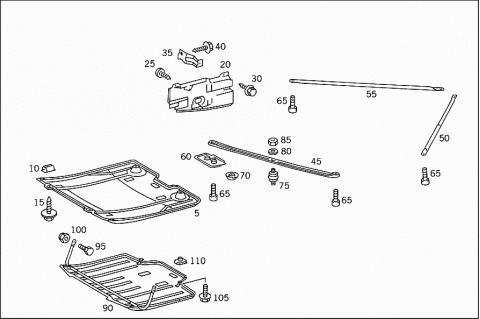

Grupė: 52 CHASSIS SHEET METAL - 015 ENGINE COMPARTMENT PANELLING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1295240930 | PANELLING |
| ENGINE COMPARTMENT | ||
| 005 | A 1295241330 | PANELLING |
| ENGINE COMPARTMENT | ||
| 010 | A 0019949845 | CLIP-TYPE NUT |
| 015 | A 2019900536 | SHEET METAL SCREW |
| 020 | A 1295241030 | PANELLING |
| SIDE PART,LEFT | ||
| 025 | N 914128004200 | SHEET METAL SCREW |
| 030 | A 2019901136 | SCREW |
| 035 | A 1295241240 | BRACKET |
| SIDE PART,LEFT | ||
| 040 | N 914128004200 | SHEET METAL SCREW |
| 045 | A 1295240247 | STRUT |
| 050 | A 1295240347 | STRUT |
| 055 | A 1295240447 | STRUT |
| 060 | A 1295240088 | COVER PLATE |
| 065 | A 0019902512 | SCREW |
| 070 | A 1295240176 | WASHER |
| 075 | A 1039880111 | BUFFER |
| 080 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 080 | N 000125006449 | WASHER |
| 085 | N 000934006007 | NUT |
| Q 000000000001 | IMPORTANT INFORMATION | |
| OIL PAN UNDERSHIELD | ||
| 090 | A 1295200342 | PROTECTIVE PLATE |
| OIL PAN UNDERSHIELD | ||
| 090 | A 1295200542 | PROTECTIVE PLATE |
| OIL PAN UNDERSHIELD | ||
| 095 | N 304017008021 | SCREW |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 100 | N 913023008003 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 105 | A 2019900204 | SCREW |
| OIL PAN PROTECTIVE PLATE TO FRONT CROSS MEMBER | ||
| 110 | A 2019900991 | NUT RETAINER |
| Repalced by: A 0049941845 | ||
| 110 | A 0049941845 | SPRING-THREAD NUT |
| OIL PAN PROTECTIVE PLATE TO FRONT CROSS MEMBER | ||
| M 8 | ||
