Transporto priemonė: SL 320; VIN numerio dalis: 129064
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|

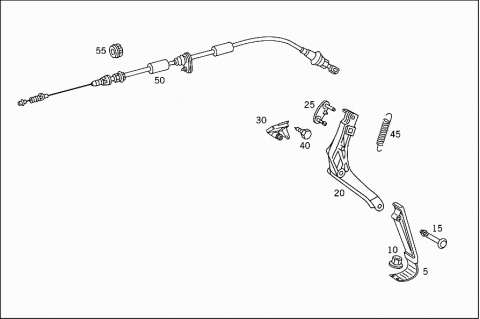

| 005 | A 2203000204 | ACCELERATOR PEDAL |
| 005 | A 1703000004 | ACCELERATOR PEDAL |
| 010 | A 2103010072 | NUT |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 015 | A 1403010374 | PIN |
| ACCELERATOR PEDAL TO LEVER | ||
| 020 | A 1293010920 | LEVER |
| ACCELERATOR PEDAL | ||
| 020 | A 1293011020 | LEVER |
| ACCELERATOR PEDAL | ||
| 025 | A 1243001625 | LEVER |
| 030 | A 1293010118 | BEARING |
| 030 | A 1293010218 | BEARING |
| A 1263010141 | STOP | |
| ACCELERATOR PEDAL | ||
| 040 | N 007976006305 | SHEET METAL SCREW |
| BEARING TO FIRE WALL | ||
| 045 | A 1299931010 | SPRING |
| ACCELERATOR PEDAL | ||
| 045 | A 1299930910 | SPRING |
| ACCELERATOR PEDAL | ||
| 050 | A 1293003330 | WIRE CABLE |
| 050 | A 1293003230 | WIRE CABLE |
| 050 | A 1293003130 | WIRE CABLE |
| 055 | A 2013010285 | RUBBER BUFFER |
| WIRE CABLE TO FIRE WALL | ||
| 065 | A 1403010340 | BRACKET |

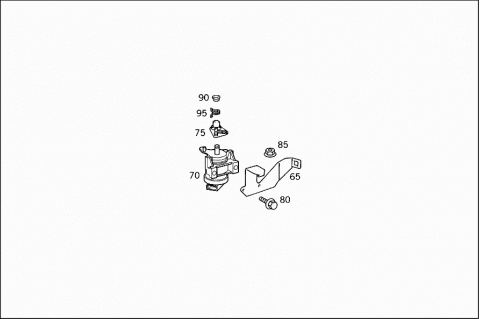

| 070 | A 0115428717 | SENDER UNIT |
| 070 | A 0125423317 | SENDER UNIT |
| 075 | A 1403000828 | REVERSING LEVER |
| 080 | N 304017006016 | SCREW |
| SENDER UNIT TO BRACKET | ||
| 085 | N 913023006001 | NUT |
| BRACKET TO CONSOLE | ||
| 090 | A 1403010043 | CLAMPING PIECE |
| AT REVERSING LEVER | ||
| 095 | A 1409930920 | SPRING |
| AT REVERSING LEVER |
