Transporto priemonė: SL 320; VIN numerio dalis: 129064

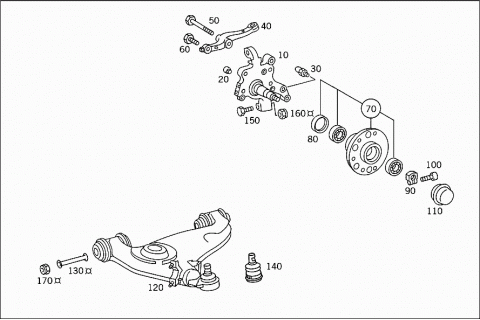

Grupė: 33 FRONT AXLE - 030 STEERING KNUCKLE AND CONTROL ARM

#	Kodas	Pavadinimas
010	A 1293300220	STEERING KNUCKLE
		LEFT
010	A 1293300320	STEERING KNUCKLE
		RIGHT
020	A 2013320174	PIN
		(CENTERING PIN)
020	A 2013320274	PIN
		(CENTERING PIN)
020	A 1293320074	PIN
		(CENTERING PIN)
030	A 1293300080	PIN
		STEERING STOP
040	A 1293320720	STEERING ARM
		LEFT
040	A 1293320620	STEERING ARM
		RIGHT
050	A 1299901401	SCREW
		STEERING ARM TO STEERING KNUCKLE
060	A 1299901301	SCREW
		STEERING ARM TO STEERING KNUCKLE
070	A 1293300525	FRONT WHEEL HUB
080	A 0199978847	SEAL RING
090	A 1163340372	NUT
		FRONT WHEEL HUB TO STEERING KNUCKLE
100	N 000912006176	SCREW
		FRONT WHEEL HUB TO STEERING KNUCKLE
110	A 1683570089	LOCKING CAP
		FRONT WHEEL HUB TO STEERING KNUCKLE
120	A 1243303007	TRANSVERSE CONTROL ARM
		BOTTOM LEFT
120	A 1243303407	TRANSVERSE CONTROL ARM
		BOTTOM LEFT
120	A 1243303407	TRANSVERSE CONTROL ARM
		BOTTOM LEFT
120	A 1243303407	TRANSVERSE CONTROL ARM
		BOTTOM LEFT
120	A 1243303107	TRANSVERSE CONTROL ARM
		BOTTOM RIGHT
120	A 1243303507	TRANSVERSE CONTROL ARM
		BOTTOM RIGHT
120	A 1243303507	TRANSVERSE CONTROL ARM
		BOTTOM RIGHT
120	A 1243303507	TRANSVERSE CONTROL ARM
		BOTTOM RIGHT

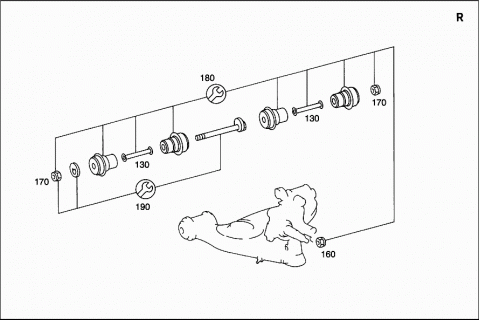

130	A 2013330043	CLAMPING PIECE
140	A 1243330327	SUPPORTING JOINT
150	A 1299901001	SCREW
		LOWER CONTROL ARM TO STEERING KNUCKLE
160	N 910113012003	HEXAGON NUT
		LOWER CONTROL ARM TO STEERING KNUCKLE
170	A 2013330072	SCREWED INSERT
		LOWER CONTROL ARM TO FRAME
180	A 1243300675	REPAIR KIT
		LOWER CONTROL ARM TO FRAME
190	A 2013300018	REPAIR KIT
		ECCENTRIC PIN
