Transporto priemonė: SL 320; VIN numerio dalis: 129064

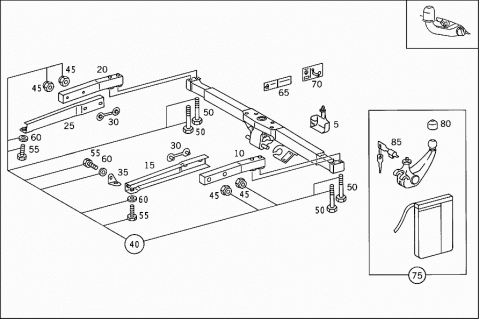

Grupė: 31 HITCHING MECHANISM - 015 TRAILER COUPLING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1293150083 | COVERING |
| 010 | A 1293100291 | STIFFENING |
| LEFT | ||
| 015 | A 1293100257 | PLATE |
| LEFT | ||
| 020 | A 1293100391 | STIFFENING |
| RIGHT | ||
| 025 | A 1293100457 | PLATE |
| RIGHT | ||
| 030 | A 2103100360 | SHACKLE |
| 035 | A 1243150021 | PLATE |
| LEFT | ||
| 040 | A 0003150771 | MOUNTING MATERIAL |
| (PARTS KIT) | ||
| 045 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 045 | N 910113010000 | NUT |
| 050 | A 1409900014 | SCREW |
| 055 | N 914125010308 | SCREW |
| Repalced by: N 910106010031 | ||
| 055 | N 910106010031 | SCREW |
| 060 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 060 | N 007349010007 | WASHER |
| 065 | A 1245843917 | GUIDE SIGN |
| FIFTH-WHEEL LOAD AND TRAILED LOAD | ||
| 070 | A 1245841417 | GUIDE SIGN |
| FOR DETACHABLE BALL HEAD; ON REAR LID OUTSIDE LEFT EDGE | ||
| 075 | A 1293100156 | BALL HEAD |
| 080 | A 0003150629 | CAP |
| 085 | A 2015830095 | PADLOCK |

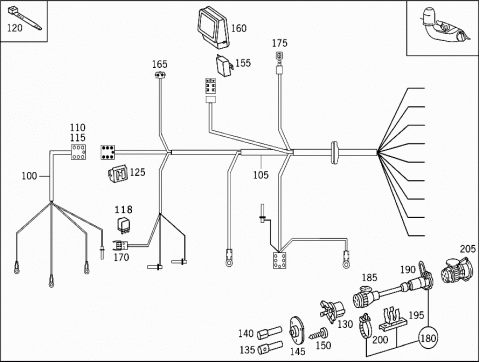

| 100 | A 1295400908 | CABLE HARNESS |
| FRONT | ||
| 105 | A 1295431809 | CABLE HARNESS |
| REAR | ||
| 105 | A 1295431909 | CABLE HARNESS |
| REAR | ||
| 110 | A 0065457426 | PIN BUSHING HOUSING |
| TRAILER PLUG SOCKET CABLE HARNESS | ||
| 115 | A 0025457926 | PIN BUSHING |
| TRAILER PLUG SOCKET CABLE HARNESS | ||
| 118 | A 0025421719 | RELAY |
| REAR FOG LAMP SWITCH-OFF RELAY | ||
| 120 | A 0019978390 | LOOM TIE |
| 125 | A 0069885278 | CLIP |
| BRACKET TO PLUG CONNECTION | ||
| 130 | A 0015407581 | PLUG SOCKET |
| 13-POLE | ||
| 135 | A 0035454126 | CONTACT BUSHING |
| LONG VERSION; SCREW-TYPE | ||
| 135 | A 0035454226 | CONTACT BUSHING |
| SHORT VERSION; SCREWABLE | ||
| 140 | A 0045455126 | CONTACT BUSHING |
| CAPABLE OF BEING SOLDERED | ||
| 145 | A 0005455480 | GASKET |
| 150 | N 007981004357 | SHEET METAL SCREW |
| 155 | A 2018200205 | BLINKER UNIT |
| 160 | A 1298270131 | CAP |
| 165 | A 0235451528 | PLUG |
| 170 | A 0125458628 | PIN BUSHING HOUSING |
| DOUBLE | ||
| 175 | A 0165450228 | PIN BUSHING HOUSING |
| SINGLE | ||
| 180 | A 1245409035 | ELECTRIC CABLE |
| TRAILER-PLUG-SOCKET ADAPTER CABLE | ||
| 185 | A 0255451728 | PLUG |
| 13-POLE | ||
| 190 | A 0015401381 | PLUG SOCKET |
| 7-POLE | ||
| 195 | A 0005452840 | BRACKET |
| ADAPTER CABLE | ||
| 200 | A 0029970990 | LOOM TIE |
| ADAPTER CABLE | ||
| 205 | A 0005401074 | CONNECTOR |
| ADAPTER FROM 13-PIN TO 7-PIN | ||
