Transporto priemonė: SL 320; VIN numerio dalis: 129064

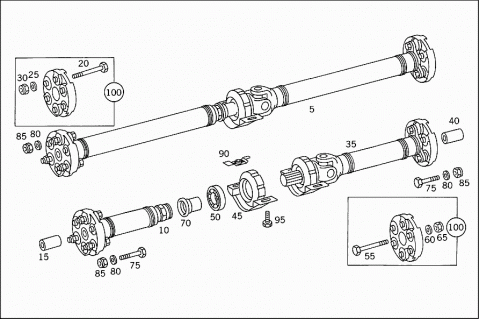

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1294104806 | PROPELLER SHAFT |
| 005 | A 1294104906 | PROPELLER SHAFT |
| 005 | A 1294104906 | PROPELLER SHAFT |
| 005 | A 1294105006 | PROPELLER SHAFT |
| 005 | A 1294105106 | PROPELLER SHAFT |
| 010 | A 1294102401 | PROPELLER SHAFT |
| FRONT | ||
| 010 | A 1294102501 | PROPELLER SHAFT |
| FRONT | ||
| 010 | A 1294102501 | PROPELLER SHAFT |
| FRONT | ||
| 010 | A 1294102601 | PROPELLER SHAFT |
| FRONT | ||
| 010 | A 1294102101 | PROPELLER SHAFT |
| FRONT | ||
| 015 | A 1244100732 | CENTERING BUSHING |
| FRONT | ||
| 015 | A 1244101032 | CENTERING BUSHING |
| FRONT | ||
| 020 | A 1409904201 | SCREW |
| Repalced by: A 0039907112 | ||
| 020 | A 0039907112 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 60 | ||
| 020 | A 1409902801 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 65 | ||
| 020 | A 1409902901 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 55 | ||
| 025 | A 1409900840 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 030 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 035 | A 1294102902 | PROPELLER SHAFT |
| REAR | ||
| 035 | A 1294103502 | PROPELLER SHAFT |
| REAR | ||
| 035 | A 1294103602 | PROPELLER SHAFT |
| REAR | ||
| 040 | A 1244100732 | CENTERING BUSHING |
| REAR | ||
| 045 | A 1294101781 | RUBBER BOOT BEARING |
| 045 | A 1404100981 | RUBBER BOOT BEARING |
| 045 | A 1294102381 | RUBBER BOOT BEARING |
| 050 | A 0039812325 | BALL BEARING |
| 055 | A 1409904201 | SCREW |
| Repalced by: A 0039907112 | ||
| 055 | A 0039907112 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 60 | ||
| 055 | A 1409902801 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 65 | ||
| 055 | A 1409902901 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M 12 X 1.5 X 55 | ||
| 060 | A 1409900840 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 065 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 070 | A 2024110497 | BOOT |
| 075 | A 1409902901 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 12 X 1.5 X 55 | ||
| 075 | A 1409904201 | SCREW |
| Repalced by: A 0039907112 | ||
| 075 | A 0039907112 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 12 X 1.5 X 60 | ||
| 075 | A 1409904201 | SCREW |
| Repalced by: A 0039907112 | ||
| 075 | A 0039907112 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| M 12 X 1.5 X 60 | ||
| 075 | A 1409902801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M 12 X 1.5 X 65 | ||
| 075 | A 1409902901 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M 12 X 1.5 X 55 | ||
| 080 | A 1409900840 | WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 085 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 090 | A 1404130017 | THREADED UNION |
| INTERMEDIATE BEARING TO FRAME | ||
| 095 | N 914126008106 | SCREW |
| Repalced by: N 910105008071 | ||
| 095 | N 910105008071 | SCREW |
| Repalced by: N 910143008002 | ||
| 095 | N 910143008002 | SCREW |
| INTERMEDIATE BEARING TO FRAME | ||
| 095 | A 1299900804 | SCREW |
| INTERMEDIATE BEARING TO FRAME | ||
| 100 | A 1704100115 | FLEXIBLE JOINT DISC |
| PARTS KIT,FRONT | ||
| 100 | A 2104101215 | FLEXIBLE JOINT DISC |
| Repalced by: A 1704100115 | ||
| 100 | A 1704100115 | FLEXIBLE JOINT DISC |
| PARTS KIT,REAR | ||
| 100 | A 2104101215 | FLEXIBLE JOINT DISC |
| Repalced by: A 1704100115 | ||
| 100 | A 1704100115 | FLEXIBLE JOINT DISC |
| (PARTS KIT),FRONT AND REAR | ||
| 100 | A 2104101215 | FLEXIBLE JOINT DISC |
| Repalced by: A 1704100115 | ||
| 100 | A 1704100115 | FLEXIBLE JOINT DISC |
| (PARTS KIT),FRONT AND REAR | ||
| 100 | A 1404100415 | FLEXIBLE JOINT DISC |
| Repalced by: A 2104100615 | ||
| 100 | A 2104100615 | FLEXIBLE JOINT DISC |
| (PARTS KIT),FRONT AND REAR | ||
| 100 | A 1294100115 | FLEXIBLE JOINT DISC |
| (PARTS KIT),FRONT AND REAR | ||
