Transporto priemonė: SL 320; VIN numerio dalis: 129064

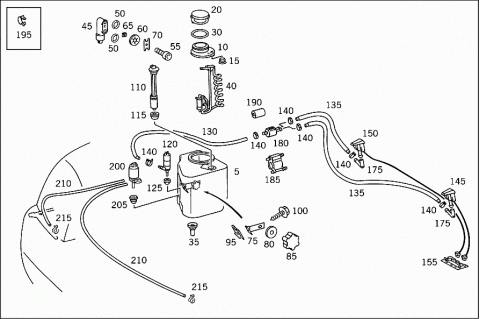

Grupė: 86 WIPER/WASER - 030 PANE WASHER,HEADLAMP WIPER/WASHER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1298600360 | RESERVOIR |
| WINDSHIELD WASHER HEATED | ||
| 005 | A 1298690320 | RESERVOIR |
| WINDSHIELD WASHER RESERVOIR | ||
| 005 | A 1298690320 | RESERVOIR |
| WINDSHIELD WASHER HEATED | ||
| A 1298690008 | COVERING | |
| WINDSHIELD WASHER RESERVOIR | ||
| 010 | A 1298690208 | COVERING |
| WINDSHIELD WASHER HEATED | ||
| A 1169870044 | EXPANSION PLUG | |
| 015 | A 1249975081 | GROMMET |
| 020 | A 1248690272 | FILLER CAP |
| WINDSHIELD WASHER RESERVOIR | ||
| 020 | A 1248690272 | FILLER CAP |
| WINDSHIELD WASHER RESERVOIR | ||
| 020 | A 1248690072 | FILLER CAP |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| A 1239970540 | SEAL RING | |
| 030 | A 2028690098 | SEAL |
| A 1268690214 | HOLDER | |
| COVER | ||
| 035 | A 1299971681 | GROMMET |
| 040 | A 1298300861 | HEATER UNIT |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 045 | A 1268300784 | VALVE |
| 050 | A 1409970645 | SEAL RING |
| 055 | N 000912006126 | SCREW |
| 060 | N 006797006247 | TOOTHED WASHER |
| 065 | A 1269901152 | NUT |
| 070 | A 1248350132 | CONNECTION |
| 075 | A 1298690114 | HOLDER |
| 080 | N 009021006208 | WASHER |
| BRACKET TO RESERVOIR | ||
| 085 | A 1299900157 | NUT |
| 095 | A 1269941345 | LOCK |
| 100 | N 914128004300 | SHEET METAL SCREW |
| 110 | A 2105400045 | SWITCH |
| WINDSHIELD WASHER WATER LEVEL | ||
| 110 | A 2105400545 | SWITCH |
| WINDSHIELD WASHER WATER LEVEL | ||
| 115 | A 1409974281 | GROMMET |
| 120 | A 2108690821 | PUMP |
| PANE WASHER | ||
| 120 | A 2108690921 | PUMP |
| PANE WASHER | ||
| 125 | A 1239973681 | GROMMET |
| WINDSHIELD WASHER PUMP IN CONTAINER | ||
| 130 | A 1298600492 | HOSE |
| FROM PUMP TO CHECK VALVE, HEATED | ||
| 130 | A 0109978982 | HOSE |
| FROM PUMP TO CHECK VALVE, NOT HEATED | ||
| 135 | A 1298600392 | HOSE |
| FROM CHECK VALVE TO NOZZLE, HEATED | ||
| 135 | A 0109978982 | HOSE |
| FROM CHECK VALVE TO NOZZLE, NOT HEATED | ||
| 140 | A 0009953865 | CLAMP |
| HOSE TO PUMP, HEATED | ||
| 140 | A 0049970190 | LOOM TIE |
| PANE WASHER; HEATED | ||
| 140 | A 0009955965 | CLAMP |
| PANE WASHER; NOT HEATED | ||
| 145 | A 1298600147 | NOZZLE |
| ENGINE HOOD, LEFT | ||
| 150 | A 1298600247 | NOZZLE |
| ENGINE HOOD,RIGHT | ||
| 155 | A 1268201111 | PLATE |
| ENGINE HOOD BRACKET,REAR | ||
| 175 | A 1248690024 | CONNECTOR |
| 180 | A 0008600862 | CHECK VALVE |
| ENGINE HOOD BRACKET,REAR | ||
| 185 | A 0008206198 | HEATING ELEMENT |
| 190 | A 1268323194 | HOSE |
| CHECK VALVE | ||
| 190 | A 1268690494 | HOSE |
| CHECK VALVE | ||
| 195 | A 0009956044 | CLAMP |
| HOSE TO ENGINE HOOD BRACKET,REAR | ||
| 195 | A 0009956044 | CLAMP |
| HOSE TO ENGINE HOOD BRACKET,REAR | ||
| 195 | A 0009956044 | CLAMP |
| HOSE TO ENGINE HOOD HINGE | ||
| 195 | A 0009956044 | CLAMP |
| HOSE TO ENGINE HOOD HINGE | ||
| 195 | A 0009956044 | CLAMP |
| HEADLAMP WIPER/WASHER | ||
| 195 | A 0009959644 | CLAMP |
| Repalced by: A 0009955644 | ||
| 195 | A 0009955644 | CLAMP |
| HOSE TO ENGINE HOOD HINGE | ||
| 200 | A 1248690421 | PUMP |
| Repalced by: A 2028690021 | ||
| 200 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 200 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 200 | A 1248690621 | PUMP |
| Repalced by: A 2028690021 | ||
| 200 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 200 | A 1248690521 | PUMP |
| Repalced by: A 2028690021 | ||
| 200 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 205 | A 0009973320 | EXPANSION PLUG |
| TO PLUG THE HOLE FOR HEADLAMP CLEANING DEVICE IN RESERVOIR | ||
| 205 | A 1239973681 | GROMMET |
| HEADLAMP CLEANING SYSTEM PUMP IN CONTAINER | ||
| 210 | A 0109978982 | HOSE |
| HEADLAMP WIPER/WASHER | ||
| 215 | A 0009955965 | CLAMP |
| HEADLAMP WIPER/WASHER | ||
