Transporto priemonė: SL 320 JAPAN; VIN numerio dalis: 129063

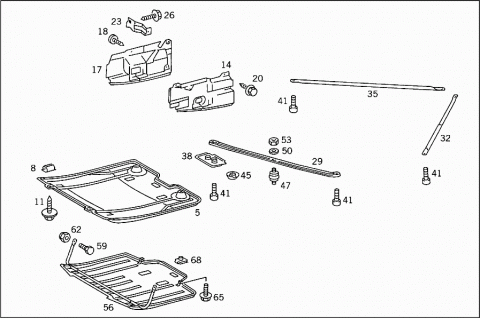

Grupė: 52 CHASSIS SHEET METAL - 015 ENGINE COMPARTMENT PANELLING

#	Kodas	Pavadinimas
005	A 1295240430	PANELLING
	Repalced by: A 1295240930
005	A 1295240930	PANELLING
		ENGINE COMPARTMENT
008	A 0019949845	CLIP-TYPE NUT
011	A 2019900536	SHEET METAL SCREW
014	A 1295240530	PANELLING
	Repalced by: A 1295241030
014	A 1295241030	PANELLING
		SIDE PART,LEFT
017	A 1295240830	PANELLING
		RIGHT SIDE PART
017	A 1295240830	PANELLING
		RIGHT SIDE PART
018	N 914128004200	SHEET METAL SCREW
020	A 2019901136	SCREW
023	A 1295241240	BRACKET
		SIDE PART,LEFT
023	A 1295240840	BRACKET
		RIGHT SIDE PART
023	A 1295240840	BRACKET
		RIGHT SIDE PART
026	N 914128004200	SHEET METAL SCREW
029	A 1295240247	STRUT
032	A 1295240347	STRUT
035	A 1295240447	STRUT
038	A 1295240088	COVER PLATE
041	A 0019901612	SCREW
	Repalced by: A 0019902512
041	A 1295240076	WASHER
	Repalced by: A 0019902512
041	A 0019902512	SCREW
045	A 1295240176	WASHER
047	A 1039880111	BUFFER
050	N 000125006421	WASHER
	Repalced by: N 000125006449
050	N 000125006449	WASHER
053	N 000934006007	NUT
	Q 000000000001	IMPORTANT INFORMATION
		OIL PAN UNDERSHIELD
056	A 1295200242	PROTECTIVE PLATE
	Repalced by: A 1295200342
056	A 1295200342	PROTECTIVE PLATE
		OIL PAN UNDERSHIELD
056	A 1295200542	PROTECTIVE PLATE
		OIL PAN UNDERSHIELD
059	N 000933008147	SCREW
	Repalced by: N 304017008021
059	N 304017008021	SCREW
		PROTECTIVE PLATE TO SIDE MEMBER
062	N 913023008000	NUT
	Repalced by: N 913023008003
062	N 913023008003	NUT
		PROTECTIVE PLATE TO SIDE MEMBER
065	A 2019900204	SCREW
		OIL PAN PROTECTIVE PLATE TO FRONT CROSS MEMBER
068	A 2019900991	NUT RETAINER
		OIL PAN PROTECTIVE PLATE TO FRONT CROSS MEMBER
