Transporto priemonė: S 320 USA; VIN numerio dalis: 140033

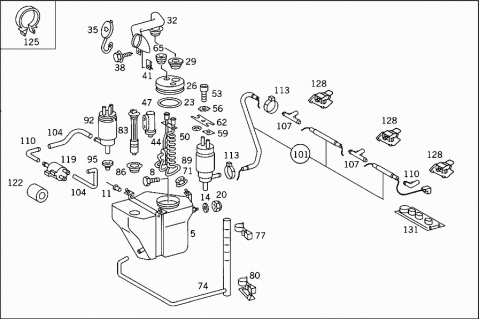

Grupė: 86 WINDSHIELD WASHER - 030 PANE WASHER,HEADLAMP WIPER/WASHER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1408600160 | RESERVOIR |
| Repalced by: A 1408600260 | ||
| 005 | A 1408600260 | RESERVOIR |
| PANE WASHER | ||
| 008 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 008 | N 304017006016 | SCREW |
| RESERVOIR TO BRACKET | ||
| 011 | N 007340004111 | RIVET |
| 014 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 014 | N 000125006449 | WASHER |
| 020 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 020 | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 020 | N 910113006000 | NUT |
| 023 | A 1408690098 | SEAL |
| 026 | A 1408690008 | COVERING |
| PANE WASHER | ||
| 029 | A 1409971681 | GROMMET |
| FILLER NECK | ||
| 032 | A 1408690017 | FILLER NECK |
| 035 | A 1408690108 | COVERING |
| FILLER NECK | ||
| 038 | N 914031004225 | COMBINATION BOLT |
| 041 | A 0029941045 | LOCK |
| 044 | A 1408300161 | HEATER UNIT |
| HEATED WINDSHIELD WASHER RESERVOIR | ||
| 047 | A 1268300784 | VALVE |
| 050 | A 1409970645 | SEAL RING |
| 053 | N 000912006126 | SCREW |
| 056 | N 006797006247 | TOOTHED WASHER |
| 059 | A 1269901152 | NUT |
| 062 | A 1248350132 | CONNECTION |
| 065 | A 1249975081 | GROMMET |
| HEATER UNIT | ||
| 071 | N 913011006000 | NUT |
| RESERVOIR TO WHEELHOUSE | ||
| 074 | A 1408600021 | INDICATOR |
| WINDSHIELD WASHER WATER LEVEL | ||
| 077 | A 1409882478 | CLIP |
| WINDSHIELD WASHER WATER LEVEL | ||
| 080 | A 1409882578 | CLIP |
| WINDSHIELD WASHER WATER LEVEL | ||
| 083 | A 1295400217 | SENDER UNIT |
| Repalced by: A 1405400017 | ||
| 083 | A 1405400017 | SENDER UNIT |
| WINDSHIELD WASHER WATER LEVEL | ||
| 083 | A 2105400045 | SENDER UNIT |
| WINDSHIELD WASHER WATER LEVEL | ||
| 086 | A 1299970581 | GROMMET |
| Repalced by: A 1269974881 | ||
| 086 | A 1269974881 | GROMMET |
| 089 | A 1408690021 | PUMP |
| PANE WASHER | ||
| 089 | A 1408690121 | PUMP |
| PANE WASHER | ||
| 089 | A 1408690221 | PUMP |
| PANE WASHER | ||
| 089 | A 2108690821 | PUMP |
| PANE WASHER | ||
| 089 | A 2108690921 | PUMP |
| PANE WASHER | ||
| 092 | A 1248690321 | PUMP |
| Repalced by: A 2028690021 | ||
| 092 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 092 | A 1248690421 | PUMP |
| Repalced by: A 2028690021 | ||
| 092 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 092 | A 1248690521 | PUMP |
| Repalced by: A 2028690021 | ||
| 092 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 092 | A 1248690621 | PUMP |
| Repalced by: A 2028690021 | ||
| 092 | A 2028690021 | PUMP |
| HEADLAMP WIPER/WASHER | ||
| 095 | A 1239973681 | GROMMET |
| FROM PUMP INTO RESERVOIR | ||
| 101 | A 1408600592 | HOSE |
| Repalced by: A 1408601092 | ||
| 101 | A 1408601092 | HOSE |
| 104 | A 0109978982 | HOSE |
| 107 | A 1408690024 | CONNECTOR |
| 110 | A 2018690024 | CONNECTOR |
| Repalced by: A 1248690024 | ||
| 110 | A 1248690024 | CONNECTOR |
| HEADLAMP WIPER/WASHER | ||
| 113 | A 0009953565 | CLAMP |
| FROM CONNECTOR TO LEFT AND RIGHT NOZZLES | ||
| 119 | A 0008600862 | CHECK VALVE |
| HEADLAMP WIPER/WASHER | ||
| 122 | A 1268323194 | HOSE |
| 125 | A 0009955444 | CLAMP |
| Repalced by: A 0009956044 | ||
| 125 | A 0009956044 | CLAMP |
| 125 | A 0009955644 | CLAMP |
| Repalced by: A 0009959644 | ||
| 125 | A 0009959644 | CLAMP |
| Repalced by: A 0009955644 | ||
| 125 | A 0009955644 | CLAMP |
| 125 | A 0009956144 | CLAMP |
| 128 | A 1408600147 | NOZZLE |
| Repalced by: A 1408600347 | ||
| 128 | A 1408600247 | NOZZLE |
| Repalced by: A 1408600347 | ||
| 128 | A 1408600347 | NOZZLE |
| Repalced by: A 1408601047 | ||
| 128 | A 1408601047 | NOZZLE |
| Repalced by: A 2108601847 | ||
| 128 | A 2108601847 | NOZZLE |
| ENGINE HOOD | ||
| 131 | A 1268201111 | PLATE |
| THERMO-SWITCH | ||
