Transporto priemonė: S 55 AMG KOMPRESSOR; VIN numerio dalis: 220174

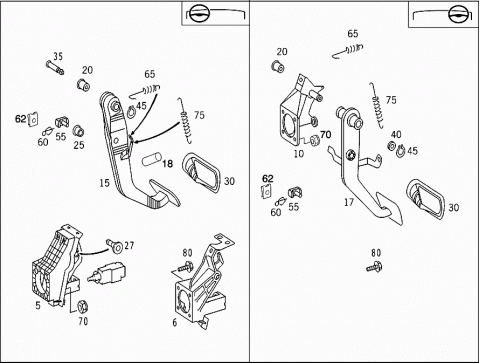

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 2202901119 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 006 | A 2202900819 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 010 | A 2202900719 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 010 | A 2202900919 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 015 | A 2202902718 | BRAKE PEDAL |
| BRAKE PEDAL | ||
| Repalced by: A 2202902918 | ||
| 015 | A 2202902918 | PEDAL |
| BRAKE PEDAL | ||
| 015 | A 2202902118 | PEDAL |
| BRAKE PEDAL | ||
| Repalced by: A 2202903318 | ||
| 015 | A 2202903318 | PEDAL |
| BRAKE PEDAL | ||
| 017 | A 2202901918 | BRAKE PEDAL |
| BRAKE PEDAL | ||
| Repalced by: A 2202903118 | ||
| 017 | A 2202903118 | PEDAL |
| BRAKE PEDAL | ||
| 017 | A 2202902318 | PEDAL |
| BRAKE PEDAL | ||
| Repalced by: A 2202903418 | ||
| 017 | A 2202903418 | PEDAL |
| BRAKE PEDAL | ||
| 018 | A 0009970581 | GROMMET |
| BRAKE PEDAL | ||
| 5X2X25 MM | ||
| 020 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 020 | A 1242920050 | BUSHING |
| BRAKE PEDAL | ||
| 020 | A 1262920050 | BUSHING |
| BRAKE PEDAL | ||
| 025 | A 2102920150 | BUSHING |
| BRAKE PEDAL | ||
| 027 | A 1682910055 | PLUG |
| BEARING BRACKET | ||
| 030 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 030 | A 2302900082 | PAD |
| BRAKE PEDAL | ||
| 030 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 035 | A 1682910374 | PIN |
| BRAKE PEDAL | ||
| 040 | A 1152910076 | WASHER |
| BRAKE PEDAL | ||
| 045 | A 0079942041 | FUSE |
| BRAKE PEDAL | ||
| 045 | A 0079942041 | FUSE |
| BRAKE PEDAL | ||
| 055 | A 2032920174 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 055 | A 1242920074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 060 | N 912011008000 | SECURING |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 060 | N 912011008000 | SECURING |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 062 | N 912002008003 | SECURING |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 8 MM | ||
| 065 | A 2209930510 | SPRING |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 070 | N 913023008003 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| Repalced by: N 000000003175 | ||
| 070 | N 000000003175 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 | ||
| 070 | N 913023008003 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| Repalced by: N 000000003175 | ||
| 070 | N 000000003175 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 | ||
| 075 | A 2209930010 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 075 | A 1409930510 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 080 | N 910106008023 | HEXAGON HEAD BOLT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
