Transporto priemonė: S 55 AMG KOMPRESSOR; VIN numerio dalis: 220174

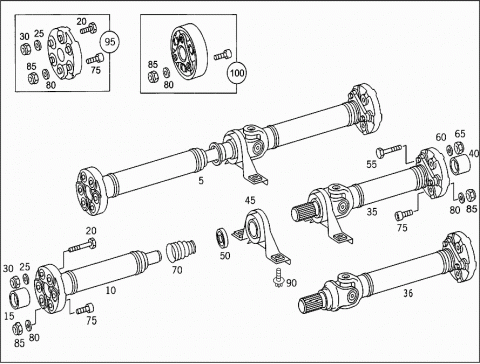

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 2204106806 | PROPELLER SHAFT |
| 005 | A 2204107406 | PROPELLER SHAFT |
| 005 | A 2204106706 | PROPELLER SHAFT |
| 005 | A 2204106006 | PROPELLER SHAFT |
| 005 | A 2204109106 | PROPELLER SHAFT |
| 005 | A 2204106906 | PROPELLER SHAFT |
| 005 | A 2204107506 | PROPELLER SHAFT |
| 005 | A 2204106506 | PROPELLER SHAFT |
| Repalced by: A 2204107206 | ||
| 005 | A 2204107206 | PROPELLER SHAFT |
| 005 | A 2204106206 | PROPELLER SHAFT |
| 005 | A 2204106406 | PROPELLER SHAFT |
| 005 | A 2204109006 | PROPELLER SHAFT |
| 005 | A 2204105906 | PROPELLER SHAFT |
| 005 | A 2204109206 | PROPELLER SHAFT |
| 010 | A 2204102001 | PROPELLER SHAFT |
| FRONT | ||
| 010 | A 2204101701 | PROPELLER SHAFT |
| FRONT | ||
| 010 | A 2204101601 | PROPELLER SHAFT |
| FRONT | ||
| 010 | A 2204102201 | PROPELLER SHAFT |
| FRONT | ||
| 010 | A 2204101901 | PROPELLER SHAFT |
| FRONT | ||
| 010 | A 2154100101 | PROPELLER SHAFT |
| FRONT | ||
| 015 | A 1244100632 | CENTERING BUSHING |
| FRONT | ||
| 020 | A 1409902901 | BOLT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X55 | ||
| Repalced by: A 0069909804 | ||
| 020 | A 0069909804 | BOLT |
| FLEXIBLE JOINT DISC TO TRANSMISSION | ||
| M12X1.5X55 | ||
| 020 | A 1409902801 | BOLT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12 X 1.5 X 65 | ||
| 020 | A 0069909904 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12 X1.5 X 60 | ||
| Repalced by: A 0119901004 | ||
| 020 | A 0119901004 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X60 | ||
| 020 | A 0079900004 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X65 | ||
| Repalced by: A 0119901104 | ||
| 020 | A 0119901104 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X65 | ||
| 025 | A 1409900840 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 12 MM | ||
| 025 | A 0069904540 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 030 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5 | ||
| 030 | A 0059901951 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5 | ||
| 035 | A 2204103802 | PROPELLER SHAFT |
| REAR | ||
| 035 | A 2204103902 | PROPELLER SHAFT |
| REAR | ||
| 036 | A 2204103602 | PROPELLER SHAFT |
| REAR | ||
| 036 | A 2204102902 | PROPELLER SHAFT |
| REAR | ||
| 036 | A 2204104002 | PROPELLER SHAFT |
| REAR | ||
| 036 | A 2204104102 | PROPELLER SHAFT |
| REAR | ||
| 036 | A 2204104702 | PROPELLER SHAFT |
| REAR | ||
| 036 | A 2204104802 | PROPELLER SHAFT |
| REAR | ||
| 036 | A 2204103302 | PROPELLER SHAFT |
| REAR | ||
| 040 | A 1244100732 | CENTERING BUSHING |
| REAR | ||
| 045 | A 2104102381 | RUBBER BOOT BEARING |
| Repalced by: A 2114100381 | ||
| 045 | A 2114100381 | RUBBER BOOT BEARING |
| AT TRANSMISSION TUNNEL | ||
| 045 | A 2114100181 | RUBBER BOOT BEARING |
| AT TRANSMISSION TUNNEL | ||
| 045 | A 2204101681 | RUBBER BOOT BEARING |
| AT TRANSMISSION TUNNEL | ||
| 050 | A 0039812325 | BALL BEARING |
| Repalced by: A 0089814325 | ||
| 050 | A 0089814325 | BALL BEARING |
| 050 | A 0089815125 | BALL BEARING |
| 055 | A 1409902901 | BOLT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X55 | ||
| Repalced by: A 0069909804 | ||
| 055 | A 0069909804 | BOLT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X55 | ||
| 055 | A 1409902801 | BOLT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12 X 1.5 X 65 | ||
| 055 | A 0069909904 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12 X1.5 X 60 | ||
| Repalced by: A 0119901004 | ||
| 055 | A 0119901004 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X60 | ||
| 055 | A 0079900004 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5X65 | ||
| Repalced by: A 0119901104 | ||
| 055 | A 0119901104 | CAPSCREW W HEXAL. DRIVE |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X65 | ||
| 060 | A 1409900840 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 12 MM | ||
| 060 | A 0069904540 | WASHER |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 065 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5 | ||
| 065 | A 0059901951 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| M12X1.5 | ||
| 070 | A 2024110497 | BOOT |
| 075 | A 1409902801 | BOLT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12 X 1.5 X 65 | ||
| 075 | A 0119901004 | CAPSCREW W HEXAL. DRIVE |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X60 | ||
| 075 | A 0119901104 | CAPSCREW W HEXAL. DRIVE |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X65 | ||
| 075 | A 1409902801 | BOLT |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12 X 1.5 X 65 | ||
| 075 | A 1409902901 | BOLT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M12X1.5X55 | ||
| 075 | A 0119901004 | CAPSCREW W HEXAL. DRIVE |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X60 | ||
| 075 | A 1409904201 | BOLT |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X1.5 X 60 | ||
| 075 | A 0119901104 | CAPSCREW W HEXAL. DRIVE |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X65 | ||
| 075 | A 0119901004 | CAPSCREW W HEXAL. DRIVE |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X60 | ||
| 080 | A 1409900840 | WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 12 MM | ||
| 080 | A 0069904540 | WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 080 | A 0069904540 | WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 080 | A 1409900840 | WASHER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 12 MM | ||
| 080 | A 0069904540 | WASHER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 080 | A 0069904540 | WASHER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 085 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X1.5 | ||
| 085 | A 0059901951 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M12X1.5 | ||
| 085 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X1.5 | ||
| 085 | A 0059901951 | HEXAGON NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X1.5 | ||
| 085 | A 0059901951 | HEXAGON NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| M12X1.5 | ||
| 090 | N 910143008002 | HEXALOBULAR BOLT |
| INTERMEDIATE BEARING TO FRAME | ||
| M8X25 | ||
| 090 | N 910143008002 | HEXALOBULAR BOLT |
| INTERMEDIATE BEARING TO FRAME | ||
| M8X25 | ||
| 095 | A 1294100115 | FLEXIBLE JOINT DISC |
| (PARTS KIT),FRONT | ||
| 095 | A 2104100615 | FLEXIBLE JOINT DISC |
| (PARTS KIT),FRONT | ||
| Repalced by: A 2304100115 | ||
| 095 | A 2304100115 | FLEXIBLE JOINT DISC |
| (PARTS KIT),FRONT | ||
| 095 | A 2204100415 | FLEXIBLE JOINT DISC |
| (PARTS KIT),FRONT | ||
| 095 | A 2154100015 | FLEXIBLE JOINT DISC |
| (PARTS KIT),FRONT | ||
| 095 | A 1704100115 | FLEXIBLE JOINT DISC |
| (PARTS KIT),FRONT | ||
| 095 | A 1294100115 | FLEXIBLE JOINT DISC |
| (PARTS KIT),REAR | ||
| 095 | A 2104100615 | FLEXIBLE JOINT DISC |
| (PARTS KIT),REAR | ||
| Repalced by: A 2304100115 | ||
| 095 | A 2304100115 | FLEXIBLE JOINT DISC |
| (PARTS KIT),REAR | ||
| 095 | A 2104101215 | FLEXIBLE JOINT DISC |
| (PARTS KIT),REAR | ||
| Repalced by: A 1704100115 | ||
| 095 | A 1704100115 | FLEXIBLE JOINT DISC |
| (PARTS KIT),REAR | ||
| 095 | A 2154100015 | FLEXIBLE JOINT DISC |
| (PARTS KIT),REAR | ||
| 100 | A 2204100047 | VIBRATION DAMPER |
| (PARTS KIT),FRONT | ||

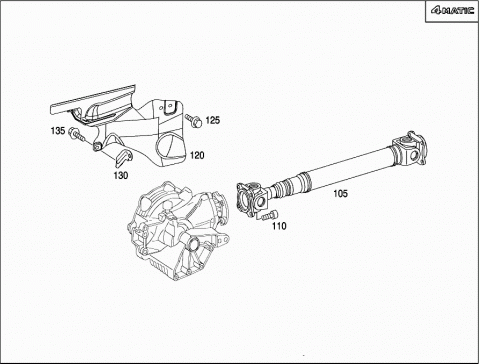

| 105 | A 2204107006 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 105 | A 2204107106 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 110 | N 000000003047 | HEXALOBULAR BOLT |
| PROPELLER SHAFT TO TRANSFER CASE AND FRONT AXLE GEAR | ||
| M8X20 | ||
| 120 | A 2204110083 | PROTECTIVE PLATE |
| TO FRONT AXLE GEAR | ||
| 125 | N 000000004310 | HEXAGON HEAD BOLT |
| GUARD TO FRONT AXLE GEAR | ||
| M6X10 | ||
| 130 | A 2204100140 | HOLDER ASSEMBLY |
| TO GUARD | ||
| 135 | N 910143006000 | HEXALOBULAR BOLT |
| BRACKET TO PROTECTIVE PLATE | ||
| M6X12 | ||
