Transporto priemonė: S 55 AMG KOMPRESSOR; VIN numerio dalis: 220174

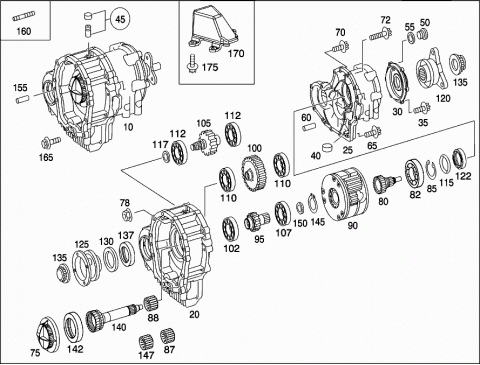

Grupė: 28 TRANSFER CASE - 010 TRANSFER CASE ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 2202800300 | TRANSFER CASE |
| Repalced by: A 2202800600 | ||
| 010 | A 2202800600 | TRANSFER CASE |
| Repalced by: A 2202800700 | ||
| 010 | A 2202800700 | TRANSFER CASE |
| 020 | A 2202810001 | HOUSING |
| FRONT | ||
| 025 | A 2202810201 | HOUSING |
| REAR | ||
| 030 | A 2202810215 | COVER |
| REAR | ||
| 035 | N 000000001141 | HEXALOBULAR BOLT |
| REAR COVER | ||
| M8X34 | ||
| 040 | A 2102760098 | MAGNET |
| HOUSING REAR | ||
| 045 | A 2103300089 | BREATHER |
| DISTRIBUTOR TRANSMISSION | ||
| 050 | N 000908014009 | SCREW PLUG, FILLING |
| REAR HOUSING AND LID | ||
| M14X1.5 | ||
| 055 | N 007603014102 | SEALING RING |
| REAR HOUSING AND LID | ||
| 14X18-CU | ||
| 060 | N 000000004503 | CYLINDER PIN |
| M6X26 | ||
| 065 | A 3529904601 | BOLT |
| HOUSING REAR; BOTTOM | ||
| M8X45 | ||
| 070 | N 910105008012 | HEXAGON HEAD BOLT |
| HOUSING REAR, TOP | ||
| M8X30 | ||
| 072 | N 910143008014 | HEXALOBULAR BOLT |
| HOUSING REAR, TOP | ||
| M8X120 | ||
| 075 | A 2202810182 | CAP |
| HOUSING FRONT | ||
| Repalced by: A 2202810482 | ||
| 075 | A 2202810482 | CAP |
| HOUSING FRONT | ||
| 078 | N 913023008003 | NUT |
| HOUSING FRONT; TOP | ||
| Repalced by: N 000000003175 | ||
| 078 | N 000000003175 | NUT |
| HOUSING FRONT; TOP | ||
| M8 | ||
| 080 | A 2202820701 | DRIVE SHAFT |
| 082 | A 2209810125 | GROOVED BALL BEARING |
| 085 | A 4419940335 | TOOTHED WASHER |
| 087 | A 2209811610 | NEEDLE BEARING |
| 088 | A 2209811710 | NEEDLE BEARING |
| 090 | A 2208000875 | ELEMENT |
| 095 | A 2202820501 | DRIVE SHAFT |
| 100 | A 2202820211 | GEAR |
| 102 | A 2209810605 | TAPERED ROLLER BEARING |
| 105 | A 2202820011 | GEAR |
| 107 | A 2209810505 | TAPERED ROLLER BEARING |
| 110 | A 2209810705 | TAPERED ROLLER BEARING |
| 112 | A 2209810805 | TAPERED ROLLER BEARING |
| 115 | A 0219971748 | SEAL RING |
| 117 | A 2032820062 | PRESSURE PLATE |
| 120 | A 2202800044 | COUPLING FLANGE |
| Repalced by: A 2032800144 | ||
| 120 | A 2032800144 | COUPLING FLANGE |
| 122 | A 2209970346 | SEAL RING |
| 125 | A 2102800139 | P.T.O. |
| 130 | A 2102820076 | WASHER |
| 135 | A 2109900151 | NUT |
| COUPLING FLANGE + DRIVE | ||
| 137 | A 2209970246 | SEAL RING |
| 140 | A 2202820601 | DRIVE SHAFT |
| Repalced by: A 2112820301 | ||
| 140 | A 2112820301 | DRIVE SHAFT |
| 142 | A 2209970046 | SEAL RING |
| 145 | N 000471030002 | RETAINING RING |
| 30X1.5X7 | ||
| 147 | A 2209811510 | NEEDLE BEARING |
| 150 | A 2032820062 | PRESSURE PLATE |
| 155 | N 000007008108 | CYLINDER PIN |
| HOUSING FRONT | ||
| 6X12 | ||
| 160 | N 000835008086 | SCREW |
| M8X25 | ||
| Repalced by: N 000000004431 | ||
| 160 | N 000000004431 | SCREW |
| 165 | N 910143008003 | HEXALOBULAR BOLT |
| HOUSING FRONT | ||
| M8X30 | ||
| 170 | A 2032810047 | VIBRATION ABSORBER |
| Repalced by: A 2112810147 | ||
| 170 | A 2112810147 | VIBRATION ABSORBER |
| 175 | N 000000000276 | HEXALOBULAR BOLT |
| M8X20 | ||
