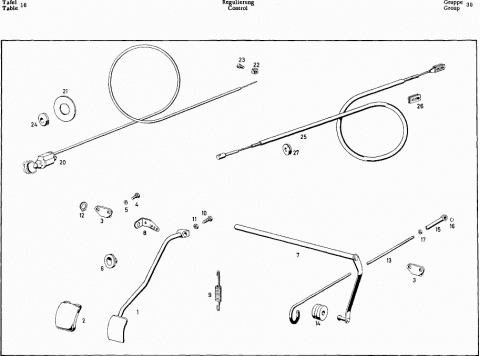

Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ACCELERATOR CONTROL | ||
| 001 | A 1213011001 | ACCELERATOR PEDAL |
| A 1213010701 | ACCELERATOR PEDAL | |
| 002 | A 1213010082 | COVERING WITH INSERT |
| 003 | A 1213010018 | MOUNTING |
| FOR ACCELERATOR PEDAL | ||
| 004 | HEX. -HD. SCREW | |
| M 6X15 DIN 933-8 G FOR MOUNTING AT FRONT WALL | ||
| 005 | LOCK WASHER | |
| B 6 DIN 127 FOR MOUNTING AT FRONT WALL | ||
| 006 | A 1839970081 | GROMMET |
| FOR ACCELERATOR PEDAL THROUGH FRONT WALL | ||
| 007 | A 6213000020 | CONTROL SHAFT |
| A 6213000120 | CONTROL SHAFT | |
| A 1213000620 | CONTROL SHAFT | |
| A 6213020014 | LEVER | |
| FOR RELEASE SPRING | ||
| 008 | A 1213020014 | LEVER |
| FOR RELEASE SPRING | ||
| A 6213000025 | LEVER | |
| FOR RELEASE SPRING | ||
| A 1213000225 | LEVER | |
| FOR RELEASE SPRING | ||
| A 1219930010 | RELEASE SPRING | |
| FOR ACCELERATOR PEDAL UP TO CHASSIS 9502700 | ||
| 009 | A 6219930310 | RELEASE SPRING |
| FOR ACCELERATOR PEDAL FROM CHASSIS 9502701 | ||
| 010 | A 1809900017 | FIXING BOLT |
| FOR ACCELERATOR PEDAL AT CONTROL SHAFT AND MOUNTING | ||
| 011 | HEX. NUT | |
| M 6 DIN 934 - 5 S FOR ACCELERATOR PEDAL AT CONTROL SHAFT AND MOUNTING | ||
| 012 | CIRCLIP | |
| G 12X1, 2 N 55 E FOR ACCELERATOR PEDAL AT CONTROL SHAFT AND MOUNTING | ||
| 013 | PULL ROD | |
| MO 300 0215 | ||
| 014 | A 1803010097 | DAMPER RING |
| 015 | A 1273000086 | BALL SOCKET |
| 016 | SNAP RING | |
| R 8 DIN 71805 | ||
| 017 | HEX. NUT | |
| M 5 DIN 934-5 S | ||
| 020 | A 1213000332 | WIRE CABLE |
| FOR IDLING ADJUSTMENT | ||
| A 1213000432 | WIRE CABLE | |
| FOR IDLING ADJUSTMENT | ||
| 021 | A 0009871741 | WASHER |
| FOR WIRE CABLE AT FIXING PLATE | ||
| 022 | A 1203020087 | ADJUSTING RING |
| FOR WIRE CABLE AT LEVER CONTROL SHAFT | ||
| 023 | CYLINDRICAL SCREW | |
| AM 5X8 DIN 84-4 S FOR WIRE CABLE AT LEVER CONTROL SHAFT | ||
| 024 | A 0009971881 | GROMMET |
| FOR WIRE CABLE THROUGH FRONT WALL | ||
| A 1213001630 | WIRE CABLE | |
| FOR GLOW STARTER SWITCH UP TO CHASSIS 9502700 | ||
| 025 | A 1213002530 | WIRE CABLE |
| FOR GLOW STARTER SWITCH FROM CHASSIS 9502701 | ||
| A 1213001730 | WIRE CABLE | |
| FOR GLOW STARTER SWITCH UP TO CHASSIS 9502700 | ||
| A 1213002630 | WIRE CABLE | |
| FOR GLOW STARTER SWITCH FROM CHASSIS 9502701 | ||
| 026 | A 1213020668 | RUBBER PIECE |
| FOR TAIL, FRONT, WIRE CABLE | ||
| 027 | A 1869970481 | GROMMET |
| FOR WIRE CABLE, GLOW CONTROL SWITCH THROUGH BRACKET OF FUSE BOX | ||
| A 1913000130 | WIRE CABLE, | |
| A 0009972481 | GROMMET | |
| A 1369950220 | FIXING CLIP |
