Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

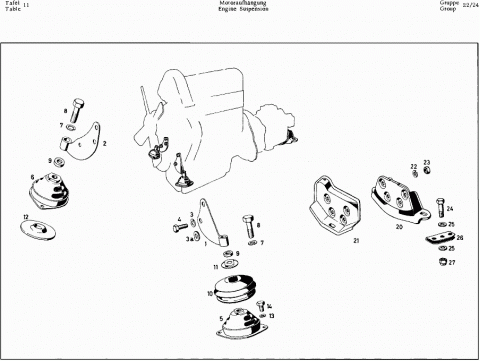

Grupė: 24 ENGINE SUSPENSION

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		ENGINE SUSPENSION, FRONT
001	A 1212200816	ENGINE SUPPORT,
002	A 1212200916	ENGINE SUPPORT,
003		LOCK WASHER
		B 8 DIN 127 FOR ENGINE SUPPORT AT CYLINDER CRANKCASE
003		LOCK WASHER
		B 8 DIN 127 FOR ENGINE SUPPORT AT CYLINDER CRANKCASE
03a		SPRING WASHER
		B 8 DIN 137 FOR ENGINE SUPPORT AT CYLINDER CRANKCASE
004		HEX. -HD. SCREW
		M 8X18 DIN 933-12 K FOR ENGINE SUPPORT AT CYLINDER CRANKCASE UP TO ENGINE
004		HEX. -HD. SCREW
		M 8X18 DIN 933-12 K FOR ENGINE SUPPORT AT CYLINDER CRANKCASE UP TO ENGINE
004		HEX. -HD. SCREW
		M 8X18 DIN 933-12 K FOR ENGINE SUPPORT AT CYLINDER CRANKCASE FROM ENGINE
004		HEX. -HD. SCREW
		M 8X18 DIN 933-12 K FOR ENGINE SUPPORT AT CYLINDER CRANKCASE FROM ENGINE
	A 0009902851	HEX. NUT
		FOR ENGINE SUPPORT AT CYLINDER CRANKCASE FROM ENGINE
005	A 1202230412	RUBBER MOUNTING, LEFT
		FOR ENGINE SUSPENSION, FRONT
006	A 1202230512	RUBBER MOUNTING, RIGHT
		FOR ENGINE SUSPENSION, FRONT
	A 1212230012	RUBBER MOUNTING, LEFT
		FOR ENGINE SUSPENSION, FRONT EXPORT, SPECIAL REQUEST
	A 1212230112	RUBBER MOUNTING, RIGHT
		FOR ENGINE SUSPENSION, FRONT EXPORT, SPECIAL REQUEST
007		LOCK WASHER
		B 12 DIN 127 FOR RUBBER MOUNTING AT ENGINE SUPPORT
008		HEX. -HD. SCREW
		M 12X45 DIN 931-8 G FOR RUBBER MOUNTING AT ENGINE SUPPORT
		HEX. -HD. SCREW
		M 12X40 DIN 931-8 G FOR RUBBER MOUNTING AT ENGINE SUPPORT EXPORT, SPECIAL REQUEST
009	A 1869901640	WASHER
		FOR RUBBER MOUNTING AT ENGINE SUPPORT
010	A 1212240082	RUBBER BOOT
		FOR RUBBER MOUNTING AT FRONT AXLE SUPPORT, FRONT, LEFT
011	A 1212240084	PLATE
		FOR RUBBER MOUNTING AT FRONT AXLE SUPPORT, FRONT, LEFT
012	A 6212230065	BUFFER PLATE
		FOR RUBBER MOUNTING AT FRONT AXLE SUPPORT
	A 1212230065	BUFFER PLATE
		FOR RUBBER MOUNTING AT FRONT AXLE SUPPORT EXPORT, SPECIAL REQUEST
013		LOCK WASHER
		B 8 DIN 127 FOR RUBBER MOUNTING AT FRONT AXLE SUPPORT
014		HEX. -HD. SCREW
		M 8X15 DIN 933-8 G FOR RUBBER MOUNTING AT FRONT AXLE SUPPORT
	X XXXXXXXXXXXX	PART NAME MISSING
		ENGINE SUSPENSION, REAR
020	A 1202400418	RUBBER MOUNTING, REAR
	A 1802400518	RUBBER MOUNTING, REAR
		EXPORT, SPECIAL REQUEST
	A 1802400043	PROTECTIVE PLATE
		FOR SUPPORTING, RUBBER MOUNTING EXPORT, SPECIAL REQUEST
		HEX. -HD. SOCKET SCREW
		M 8X15 DIN 912-8 G FOR PROTECTIVE PLATE AT RUBBER MOUNTING EXPORT, SPECIAL REQUEST
		WASHER
		8,4 DIN 125 FOR PROTECTIVE PLATE AT RUBBER MOUNTING EXPORT, SPECIAL REQUEST
021	A 1862420034	SCREENING PLATE
		FOR ENGINE SUPPORT, REAR
022		LOCK WASHER
		B 8 DIN 127 FOR RUBBER MOUNTING AT REAR TRANSMISSION HOUSING COVER
023		HEX. NUT
		M 8 DIN 934 - 5 S FOR RUBBER MOUNTING AT REAR TRANSMISSION HOUSING COVER
		HEX. NUT
		M 8 AGGN 14441 EXPORT, SPECIAL REQUEST
024		HEX. -HD. SCREW
		M 10X35 DIN 931-8 G FOR RUBBER MOUNTING AT BODY, FRAME
025	A 1209900940	WASHER
		FOR RUBBER MOUNTING AT BODY, FRAME
026	A 1202420432	SHILD
		FOR FORK SUPPORT FOR RUBBER MOUNTING AT BODY, FRAME
027		HEX. NUT
		M 10 AGGN 14440 FOR RUBBER MOUNTING AT BODY, FRAME
