Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

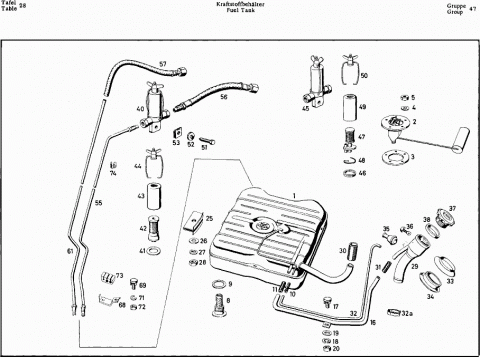

Grupė: 47 FUEL TANK
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FUEL TANK | ||
| 001 | A 1204703001 | FUEL TANK |
| WITH LOCKING SCREW CAPACITY 56 LITERS | ||
| A 1205420504 | ELECTRIC TRANSMITTER | |
| 002 | A 0005427117 | ELECTRIC TRANSMITTER |
| 003 | A 1864710180 | GASKET |
| FOR ELECTRIC TRANSMITTER FOR FUEL INDICATION AT FUEL TANK | ||
| 004 | LOCK WASHER | |
| B 5 DIN 137 FOR ELECTRIC TRANSMITTER FOR FUEL INDICATION AT FUEL TANK | ||
| 005 | HEX. NUT | |
| M 5 DIN 934-5 S FOR ELECTRIC TRANSMITTER FOR FUEL INDICATION AT FUEL TANK | ||
| 008 | A 1204700186 | SCREW PLUG |
| FOR FUEL TANK, BOTTOM | ||
| 009 | SEALING RING | |
| A 26X34 DIN 7603 A1 | ||
| 010 | A 1209971382 | RUBBER HOSE |
| FOR VENT PIPE | ||
| 011 | A 1209971182 | RUBBER HOSE |
| FOR BREATHER PIPE | ||
| 016 | A 1204700325 | BREATHER PIPE |
| HOSE CLAMP | ||
| WSN 5 N 262 | ||
| HOSE STRAP | ||
| 5 X 0,35 200 MM LG. N 263 ORDER BY THE METER | ||
| 017 | A 1204200227 | SCREW WITH LOCKING PLATE |
| FOR BREATHER PIPE AT FLOOR, REAR | ||
| 018 | LOCK WASHER | |
| B 6 DIN 127 FOR BREATHER PIPE AT FLOOR, REAR | ||
| 019 | WASHER | |
| 6,4 DIN 125 FOR BREATHER PIPE AT FLOOR, REAR | ||
| 020 | HEX. NUT | |
| M 6 DIN 934-5 S FOR BREATHER PIPE AT FLOOR, REAR | ||
| 025 | A 1204710022 | REINFORCEMENT PLATE |
| FOR FIXING FUEL TANK | ||
| 026 | WASHER | |
| 8,4 DIN 125 FOR FIXING FUEL TANK | ||
| 027 | LOCK WASHER | |
| B 8 DIN 137 FOR FIXING FUEL TANK | ||
| 028 | HEX. NUT | |
| M 8 DIN 934-5 S FOR FIXING FUEL TANK | ||
| 029 | A 1204700121 | FUEL-FILLER NIPPLE |
| 030 | A 1209970082 | RUBBER HOSE |
| FOR FILLER NIPPLE AT FILLER PIPE | ||
| HOSE CLAMP | ||
| WSN 9 N 262 FOR FILLER NIPPLE AT FILLER PIPE | ||
| HOSE STRAP | ||
| 9X0, 4;350 MM LG. N 263 FOR FILLER NIPPLE AT FILLER PIPE ORDER BY THE METER | ||
| 031 | A 1844760026 | RUBBER HOSE |
| FOR BREATHER PIPE AT FILLER NIPPLE | ||
| HOSE CLAMP | ||
| WSN 5 N 262 FOR BREATHER PIPE AT FILLER NIPPLE | ||
| HOSE STRAP | ||
| 5X0, 35;200 MM LG N 263 FOR BREATHER PIPE AT FILLER NIPPLE ORDER BY THE METER | ||
| 032 | A 1204712315 | VENT PIPE |
| 32a | A 1209930225 | SPRING CLAMP |
| FOR VENT PIPE AT BREATHER PIPE | ||
| 033 | A 1204710381 | SLEEVE,-UPPER PART |
| FOR FUEL TANK, FILLER NIPPLE THROUGH REAR MUDGUARD | ||
| 034 | A 1204710481 | SLEEVE, LOWER PART |
| FOR FUEL TANK, FILLER NIPPLE THROUGH REAR MUDGUARD | ||
| 035 | A 1204710281 | SLEEVE |
| FOR VENT PIPE AT RECESS, REAR MUDGUARD | ||
| 036 | A 1204710635 | STRAINER |
| IN SLEEVE FOR VENT PIPE | ||
| HOSE CLAMP | ||
| WSN 5 N 262 FOR VENT PIPE AT RECESS, REAR MUDGUARD | ||
| HOSE STRAP | ||
| 5X0,35;110 MM LG. N 263 FOR VENT PIPE AT RECESS, REAR MUDGUARD ORDER BY THE METER | ||
| 037 | A 1364710230 | SCREW CAP |
| FOR FUEL FILLER | ||
| 038 | A 1919970040 | SEALING RING |
| FOR SCREW CAP | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FUEL, FILTER | ||
| 040 | A 0004776801 | PART NAME MISSING |
| CONNECTION M 14X1,5 OPTIONAL WITH 000 477 67 01 | ||
| 041 | A 0004771980 | GASKET |
| 042 | A 0004773015 | FILTER ELEMENT |
| 043 | A 0004770216 | FILTER JUG |
| A 0004770918 | WIRE CLAMP | |
| 044 | A 0004770318 | WIRE CLAMP |
| 045 | A 0004776701 | PART NAME MISSING |
| CONNECTION M 14X1,5 OPTIONAL WITH 000 477 68 01 | ||
| 046 | A 0004771680 | GASKET |
| 047 | A 0004772715 | FILTER ELEMENT |
| 048 | A 0009940437 | LOCKING RING |
| FOR FILTER ELEMENT | ||
| 049 | A 0004770716 | FILTER JUG |
| A 0004770918 | WIRE CLAMP | |
| 050 | A 0004770318 | WIRE CLAMP |
| 051 | HEX. -HD. | |
| SHEET METAL SCREW B 6,3X22 DIN 7976 FOR FUEL FILTER AT FRAME | ||
| 052 | A 0009900148 | RETAINER |
| FOR FUEL FILTER AT FRAME | ||
| 053 | A 0009940945 | CLIP |
| FOR FUEL FILTER AT FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FUEL PIPES | ||
| 055 | A 1054700270 | FUEL PIPE |
| FROM FUEL TANK TO FILTER | ||
| A 1214760026 | FUEL HOSE | |
| FROM FILTER TO FUEL FEED, PUMP | ||
| 056 | A 1214760126 | FUEL HOSE |
| FROM FILTER TO FUEL FEED, PUMP | ||
| A 1204760026 | FLEXIBLE HOSE | |
| FROM T-FITTING, LEAK PIPE, TO FUEL RETURN FLOW PIPE WAS NOT INSTALLED | ||
| 057 | A 1284760726 | FUEL HOSE |
| FROM T-FITTING, LEAK PIPE, TO FUEL RETURN FLOW PIPE | ||
| A 1204760073 | HOLDING SPRING | |
| FOR FUEL HOSE AND PIPE AT BRACKET WAS NOT INSTALLED | ||
| HOSE CLAMP | ||
| S 12/9 ZY N 288 A FOR FUEL HOSE AT FUEL RETURN FLOW PIPE | ||
| A 1204700970 | PART NAME MISSING | |
| FROM HOSE TO CONTAINER WAS NOT INSTALLED | ||
| 061 | A 1214700072 | PART NAME MISSING |
| FROM HOSE TO CONTAINER | ||
| A 0009973782 | HOSE PIECE, | |
| DIA. 8X14, 20-MM LONG FOR FUEL RETURN FLOW PIPE AT FORK SUPPORT ORDER BY THE METER | ||
| FIXING CLAMP | ||
| 1 X 12 DIN 72571 FOR FUEL RETURN FLOW PIPE AT FORK SUPPORT | ||
| LOCK WASHER | ||
| B 6 DIN 137 FOR FUEL RETURN FLOW PIPE AT FORK SUPPORT | ||
| HEX. -HD. | ||
| SHEET METAL SCREW B 5,5 X 16 DIN 7976 FOR FUEL RETURN FLOW PIPE AT FORK SUPPORT | ||
| 068 | A 1809950022 | FIXING CLAMP |
| FOR FUEL PIPE AND BRAKE PIPE | ||
| LENS-HD. SHEET | ||
| METAL SCREW B 4,8X9,5 DIN 7981 FOR FUEL PIPE AND BRAKE PIPE | ||
| LOCK WASHER | ||
| B 5 DIN 137 FOR FUEL PIPE AND BRAKE PIPE | ||
| 069 | A 1204200227 | SCREW WITH LOCKING PLATE |
| FOR FIXING CLAMP AT FLOOR | ||
| 071 | LOCK WASHER | |
| B 6 DIN 127 FOR FIXING CLAMP AT FLOOR | ||
| 072 | HEX. NUT | |
| M 6 DIN 934-5 S FOR FIXING CLAMP AT FLOOR | ||
| 073 | A 1804760184 | RUBBER GUIDE |
