Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111
Grupė: 03 MOVING PARTS

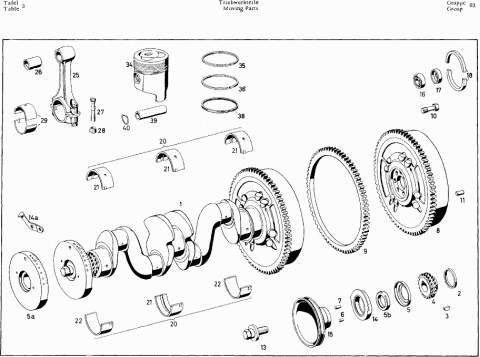

4225
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING
CRANKSHAFT
A 6210301901 CRANKSHAFT WITH
COUNTERWEIGHT, FLYWHEEL, CRANKSHAFT BEARING SHELLS AND CONNECTING ROD BEARING SHELLS MAKE GLYCO OPTIONAL
A 6210302001 CRANKSHAFT WITH
COUNTERWEIGHT, FLYWHEEL, CRANKSHAFT BEARING SHELLS AND CONNECTING ROD BEARING SHELLS MAKE LAUCHERTHAL OPTIONAL
001 A 6210301101 CRANKSHAFT WITH
COUNTERWEIGHT AND FLYWHEEL
002 A 1800310052 SHIM, 5.45 MM THICK
OPTIONAL FOR CRANKSHAFT GEAR AT CRANKSHAFT
A 1800310152 SHIM, 5.60 MM THICK
OPTIONAL FOR CRANKSHAFT GEAR AT CRANKSHAFT
A 1800310252 SHIM, 5.75 MM THICK
OPTIONAL FOR CRANKSHAFT GEAR AT CRANKSHAFT
A 1800310352 SHIM, 5.90 MM THICK
OPTIONAL FOR CRANKSHAFT GEAR AT CRANKSHAFT
A 1800310452 SHIM, 6.05 MM THICK
OPTIONAL FOR CRANKSHAFT GEAR AT CRANKSHAFT
003 WOODRUFF KEY
ON CRANKSHAFT, FRONT 5 X 7,5 DIN 6888
004 A 1800520203 CRANKSHAFT GEAR
ON CRANKSHAFT, FRONT
005 A 1800310425 OIL SLINGER RING
ON CRANKSHAFT, FRONT
05a A 1210310307 COUNTERWEIGHT
05b A 1210310051 SPACER RING
FOR CRANKSHAFT, OIL SLINGER RING
006 CYLINDRICAL PIN
8 H8 X 8 DIN 7 FOR COUNTERWEIGHT AT CRANKSHAFT
007 CYLINDRICAL PIN
8 H8 X 16 DIN 7 FOR COUNTERWEIGHT AT CRANKSHAFT
008 A 6210300305 FLYWHEEL WITH
009 A 6210320105 STARTER RING
010 A 1210310671 NECKED-DOWN BOLT
FOR FLYWHEEL AT CRANKSHAFT
011 CYLINDRICAL PIN
10 H8 X 18 DIN 7 FOR FLYWHEEL AT CRANKSHAFT
013 A 1860310271 COLLAR SCREW
014 A 1200310181 SEALING RING
AT CRANKSHAFT, FRONT
14a A 1210320015 ADJUSTING NEEDLE
FOR TOP DEAD CENTER ADJUSTMENT
A 6210320074 PIN AT CYLINDER CRANKCASE
015 A 1212000105 PULLEY
DIA. 122 MM UP TO ENGINE
A 6212000105 PULLEY
DIA. 135 MM FROM ENGINE
016 ANNULAR GROOVED BEARING
6202 DIN 625 FOR DRIVE SHAFT AT CRANKSHAFT
017 A 1860310033 LOCKING RING
FOR DRIVE SHAFT AT CRANKSHAFT
018 FABRIC SEALING RING
75 X 87 X 6 GL N 255 A FOR CRANKSHAFT SEALING IN CYLINDER CRANKCASE, REAR
X XXXXXXXXXXXX PART NAME MISSING
CRANKSHAFT BEARING
020 A 1210300597 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 70-MM = STANDARD (MAKE GLYCO) OPTIONAL READY FOR INSTALLATION
A 6210300097 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 70-MM = STANDARD (MAKE LAUCHERTHAL) OPTIONAL READY FOR INSTALLATION
A 1210301097 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 70-MM = STANDARD (MAKE VANDERVELL) OPTIONAL READY FOR INSTALLATION
021 A 1210331401 CRANKSHAFT BEARING SHELL
MAKE GLYCO WITH GROOVE;USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING, USED AS UPPER AND LOWER HALF FOR CENTER BE
A 6210330001 CRANKSHAFT BEARING SHELL
MAKE LAUCHERTHAL WITH GROOVE;USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING, USED AS UPPER AND LOWER HALF FOR CEN
A 1210331901 CRANKSHAFT BEARING SHELL
MAKE VANDERVELL WITH GROOVE;USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING, USED AS UPPER AND LOWER HALF FOR CENT
022 A 1210331402 CRANKSHAFT BEARING SHELL
MAKE GLYCO WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 6210330002 CRANKSHAFT BEARING SHELL
MAKE LAUCHERTHAL WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 1210331902 CRANKSHAFT BEARING SHELL
MAKE VANDERVELL WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 1210300697 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.75-MM = REPAIR SIZEI MAKE GLYCO OPTIONAL READY FOR INSTALLATION
A 6210300197 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.75-MM = REPAIR SIZE I MAKE LAUCHERTHAL OPTIONAL READY FOR INSTALLATION
A 1210301197 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.75-MM = REPAIR SIZE I MAKE VANDERVELL OPTIONAL READY FOR INSTALLATION
A 1210331501 CRANKSHAFT BEARING SHELL,
MAKE GLYCO WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING; USED AS UPPER AND LOWER HALF FOR CENTER B
A 6210330101 CRANKSHAFT BEARING SHELL,
MAKE LAUCHERTHAL WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING; USED AS UPPER AND LOWER HALF FOR CE
A 1210332001 CRANKSHAFT BEARING SHELL,
MAKE VANDERVELL WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING; USED AS UPPER AND LOWER HALF FOR CEN
A 1210331502 CRANKSHAFT BEARING SHELL,
MAKE GLYCO WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 6210330102 CRANKSHAFT BEARING SHELL,
MAKE LAUCHERTHAL WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 1210332002 CRANKSHAFT BEARING SHELL,
MAKE VANDERVELL WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 1210300797 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.50-MM=REPAIR SIZE II MAKE GLYCO OPTIONAL READY FOR INSTALLATION
A 6210300297 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.50-MM=REPAIR SIZE II MAKE LAUCHERTHAL OPTIONAL READY FOR INSTALLATION
A 1210301297 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.50-MM=REPAIR SIZE II MAKE VANDERVELL OPTIONAL READY FOR INSTALLATION
A 1210331601 CRANKSHAFT BEARING SHELL,
MAKE GLYCO WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING, USED AS UPPER AND LOWER HALF FOR CENTER B
A 6210330201 CRANKSHAFT BEARING SHELL,
MAKE LAUCHERTHAL WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING, USED AS UPPER AND LOWER HALF FOR CE
A 1210332101 CRANKSHAFT BEARING SHELL,
MAKE VANDERVELL WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING, USED AS UPPER AND LOWER HALF FOR CEN
A 1210331602 CRANKSHAFT BEARING SHELL,
MAKE GLYCO WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 6210330202 CRANKSHAFT BEARING SHELL,
MAKE LAUCHERTHAL WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 1210332102 CRANKSHAFT BEARING SHELL,
MAKE VANDERVELL WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 1210300897 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.25-MM = REPAIR SIZE III MAKE GLYCO READY FOR INSTALLATION
A 6210300397 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.25-MM=REPAIR SIZE III MAKE LAUCHERTHAL READY FOR INSTALLATION
A 1210301397 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.25-MM=REPAIR SIZE III MAKE VANDERVELL READY FOR INSTALLATION
A 1210331701 CRANKSHAFT BEARING SHELL,
MAKE GLYCO WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING; USED AS UPPER AND LOWER HALF FOR CENTER B
A 6210330301 CRANKSHAFT BEARING SHELL,
MAKE LAUCHERTHAL WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING; USED AS UPPER AND LOWER HALF FOR CE
A 1210332201 CRANKSHAFT BEARING SHELL,
MAKE VANDERVELL WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING; USED AS UPPER AND LOWER HALF FOR CEN
A 1210331702 CRANKSHAFT BEARING SHELL,
MAKE GLYCO WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 6210330302 CRANKSHAFT BEARING SHELL,
MAKE LAUCHERTHAL WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 1210332202 CRANKSHAFT BEARING SHELL,
MAKE VANDERVELL WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 1210300997 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.00-MM = REPAIR SIZE IV, MAKE GLYCO OPTIONAL READY FOR INSTALLATION
A 6210300497 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.00-MM = REPAIR SIZE IV MAKE LAUCHERTHAL OPTIONAL READY FOR INSTALLATION
A 1210301497 SET OF
CRANKSHAFT BEARING SHELLS, INTERIOR DIA. 69.00-MM = REPAIR SIZE IV MAKE VANDERVELL OPTIONAL READY FOR INSTALLATION
A 1210331801 CRANKSHAFT BEARING SHELL,
MAKE GLYCO WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING, USED AS UPPER AND LOWER HALF FOR CENTER B
A 6210330401 CRANKSHAFT BEARING SHELL,
MAKE LAUCHERTHAL WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING, USED AS UPPER AND LOWER HALF FOR CE
A 1210332301 CRANKSHAFT BEARING SHELL
MAKE VANDERVELL WITH GROOVE; USED AS UPPER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING, USED AS UPPER AND LOWER HALF FOR CEN
A 1210331802 CRANKSHAFT BEARING SHELL,
MAKE GLYCO WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 6210330402 CRANKSHAFT BEARING SHELL,
MAKE LAUCHERTHAL WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
A 1210332302 CRANKSHAFT BEARING SHELL
MAKE VANDERVELL WITHOUT GROOVE; USED AS LOWER HALF FOR 1ST AND 3RD CRANKSHAFT BEARING OPTIONAL
X XXXXXXXXXXXX PART NAME MISSING
CONNECTING ROD
025 A 6210300520 CONNECTING ROD
026 A 6210380050 CONNECTING ROD BUSHING
027 A 1210380371 CONNECTING SCREW
028 A 1820380072 NUT
A 6210380150 CONNECTING ROD
BUSHING, EXTERIOR DIA. 29.5-MM REPAIR DESIGN
A 1210382811 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 52.00-MM = STANDARD MAKE GLYCO OPTIONAL
029 A 1210382810 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 52.00-MM = STANDARD MAKE GLYCO OPTIONAL
A 1210380711 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 52.00-MM = STANDARD MAKE LAUCHERTHAL OPTIONAL
A 1210380710 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 52.00-MM = STANDARD MAKE LAUCHERTHAL OPTIONAL
A 1210383310 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 52.00-MM = STANDARD MAKE VANDERVELL OPTIONAL
A 1210382911 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.75-MM = REPAIR SIZE I MAKE GLYCO OPTIONAL
A 1210382910 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.75-MM = REPAIR SIZE I MAKE GLYCO OPTIONAL
A 1210380811 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.75-MM = REPAIR SIZE I MAKE LAUCHERTHAL OPTIONAL
A 1210380810 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.75-MM = REPAIR SIZE I MAKE LAUCHERTHAL OPTIONAL
A 1210383410 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.75-MM = REPAIR SIZE I MAKE VANDERVELL OPTIONAL
A 1210383011 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.50-MM = REPAIR SIZE II MAKE GLYCO OPTIONAL
A 1210383010 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.50-MM = REPAIR SIZE II MAKE GLYCO OPTIONAL
A 1210380911 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.50-MM = REPAIR SIZE II MAKE LAUCHERTHAL OPTIONAL
A 1210380910 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.50-MM = REPAIR SIZE II MAKE LAUCHERTHAL OPTIONAL
A 1210383510 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.50-MM = REPAIR SIZE II, MAKE VANDERVELL OPTIONAL
A 1210383111 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.25-MM = REPAIR SIZE III OPTIONAL
A 1210383110 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.25-MM = REPAIR SIZE III OPTIONAL
A 1210381011 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.25-MM = REPAIR SIZE III MAKE LAUCHERTHAL OPTIONAL
A 1210381010 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.25-MM = REPAIR SIZE III MAKE LAUCHERTHAL OPTIONAL
A 1210383610 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.25-MM = REPAIR SIZE III MAKE VANDERVELL OPTIONAL
A 1210383211 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.00-MM = REPAIR SIZE IV MAKE GLYCO OPTIONAL
A 1210383210 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.00-MM = REPAIR SIZE IV MAKE GLYCO OPTIONAL
A 1210381111 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.00-MM = REPAIR SIZE IV MAKE LAUCHERTHAL OPTIONAL
A 1210381110 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.00-MM = REPAIR SIZE IV MAKE LAUCHERTHAL OPTIONAL
A 1210383710 CONNECTING ROD
BEARING SHELL HALF, INTERIOR DIA. 51.00-MM = REPAIR SIZE IV, MAKE VANDERVELL OPTIONAL
X XXXXXXXXXXXX PART NAME MISSING
PISTON
A 6210301017 PISTON WITH
PISTON PIN AND PISTON RINGS FOR CYLINDER DIA. 85.00-MM = STANDARD
034 A 6210302117 PISTON WITH
PISTON PIN AND PISTON RINGS FOR CYLINDER DIA. 85.00-MM = STANDARD
035 A 0010377916 COMPRESSION RING
FOR PISTON GROOVE I
036 A 0010378416 COMPRESSION RING
FOR PISTON GROOVE II AND III
038 A 0010377418 PC-OIL SLOTTED RING
FOR PISTON GROOVE IV
039 A 6210370020 PISTON PIN
040 A 0009942535 WIRE SNAP RING
A 6210301117 PISTON WITH
PISTON PIN AND PISTON RINGS, FOR CYLINDER DIA. 85.25-MM = REPAIR SIZE I
A 6210302217 PISTON WITH
PISTON PIN AND PISTON RINGS, FOR CYLINDER DIA. 85.25-MM = REPAIR SIZE I
A 0010378016 COMPRESSION RING
FOR PISTON GROOVE I
A 0010378516 COMPRESSION RING
FOR PISTON GROOVE II AND III
A 0010377518 PC-OIL SLOTTED RING
FOR PISTON GROOVE IV
A 6210370020 PISTON PIN
A 0009942535 WIRE SNAP RING
A 6210301217 PISTON WITH
PISTON PIN AND PISTON RINGS, FOR CYLINDER DIA. 85.50-MM = REPAIR SIZE II
A 6210302317 PISTON WITH
PISTON PIN AND PISTON RINGS, FOR CYLINDER DIA. 85.50-MM = REPAIR SIZE II
A 0010378116 COMPRESSION RING
FOR PISTON GROOVE I
A 0010378616 COMPRESSION RING
FOR PISTON GROOVE II AND III
A 0010377618 PC-OIL SLOTTED RING
FOR PISTON GROOVE IV
A 6210370020 PISTON PIN
A 0009942535 WIRE SNAP RING
A 6210301317 PISTON WITH
PISTON PIN AND PISTON RINGS, FOR CYLINDER DIA. 86.00-MM = REPAIR SIZE III
A 6210302417 PISTON WITH
PISTON PIN AND PISTON RINGS, FOR CYLINDER DIA. 86.00-MM = REPAIR SIZE III
A 0010378216 COMPRESSION RING
FOR PISTON GROOVE I
A 0010378716 COMPRESSION RING
FOR PISTON GROOVE II AND III
A 0010377718 PC-OIL SLOTTED RING
FOR PISTON GROOVE IV
A 6210370020 PISTON PIN
A 0009942535 WIRE SNAP RING
A 6210301417 PISTON WITH
PISTON PIN AND PISTON RINGS FOR CYLINDER DIA. 86.50-MM = REPAIR SIZE IV
A 6210302517 PISTON WITH
PISTON PIN AND PISTON RINGS FOR CYLINDER DIA. 86.50-MM = REPAIR SIZE IV
A 0010378316 COMPRESSION RING
FOR PISTON GROOVE I
A 0010378816 COMPRESSION RING
FOR PISTON GROOVE II AND III
A 0010377818 PC-OIL SLOTTED RING
FOR PISTON GROOVE IV
A 6210370020 PISTON PIN
A 0009942535 WIRE SNAP RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
