Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

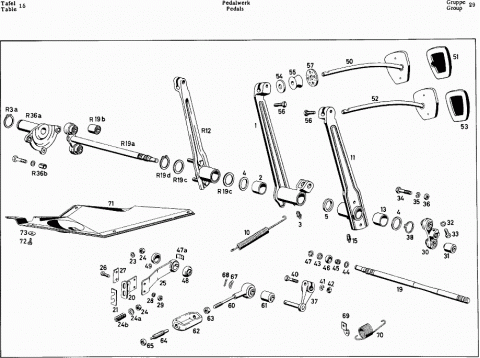

Grupė: 29 PEDALS

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		BRAKE PEDAL
001	A 1802900118	BRAKE PEDAL
		WITH HUB AND BUSHING
	A 1212900118	BRAKE PEDAL
		WITH HUB AND BUSHING
002	A 1202920550	BUSHING
003		GREASE FITTING
		A 8 DIN 71412
03a		CIRCLIP
		26X1,2 DIN 471 FOR BRAKE PEDAL AT MOUNTING BODY
004	A 1209902840	WASHER
		FOR BRAKE PEDAL AT MOUNTING BODY FOR BRAKE PEDAL AT TUBE, PEDAL MOUNTING
004	A 1209902840	WASHER
		FOR BRAKE PEDAL AT MOUNTING BODY FOR BRAKE PEDAL AT TUBE, PEDAL MOUNTING
	A 1209903840	WASHER, 0.58 MM THICK
		AT CLUTCH PEDAL FOR BRAKE PEDAL AT TUBE, PEDAL MOUNTING
005	A 1209904240	DAMPING RING
		FOR BRAKE PEDAL AT TUBE, PEDAL MOUNTING OPTIONAL WITH 120 990 40 40/41 40
	A 1209903840	WASHER, 0.58 MM THICK
		FOR BRAKE PEDAL AT TUBE, PEDAL MOUNTING OPTIONAL WITH 120 990 40 40/41 40
	A 1209903940	WASHER, 0.75 MM THICK
		FOR BRAKE PEDAL AT TUBE, PEDAL MOUNTING OPTIONAL WITH 120 990 40 40/41 40
	A 1209904040	WASHER, 0.88 MM THICK
		FOR BRAKE PEDAL AT TUBE, PEDAL MOUNTING OPTIONAL WITH 120 990 38 40/39 40
	A 1209904140	WASHER, 1.00 MM THICK
		FOR BRAKE PEDAL AT TUBE, PEDAL MOUNTING OPTIONAL WITH 120 990 38 40/39 40
010	A 1809931010	RELEASE SPRING
		FOR BRAKE PEDAL
	X XXXXXXXXXXXX	PART NAME MISSING
		CLUTCH PEDAL
011	A 1202902516	CLUTCH PEDAL
		WITH HUB AND BUSHING
012	A 1202902716	CLUTCH PEDAL
		WITH HUB AND BUSHING
013	A 1202920550	BUSHING
		IN HUB FOR CLUTCH PEDAL
015		GREASE FITTING
		A 8 DIN 71412
019	A 1202930506	PEDAL SHAFT
		FOR CLUTCH OPERATION
19a	A 1202900230	PEDAL SHAFT
		FOR CLUTCH OPERATION
19b	A 1209880010	SILENT BLOC
19c	A 1209902840	WASHER
		FOR CLUTCH PEDAL AT TUBE MOUNTING BODY, FRAME
19d		CIRCLIP
		26X1,2 DIN 471 FOR CLUTCH PEDAL AT TUBE MOUNTING BODY, FRAME
020	A 1212900033	BRACKET
		FOR CLUTCH HOUSING
	A 1212900133	BRACKET
		FOR CLUTCH HOUSING
021	A 1202930288	SHIM, 2 MM THICK
		BETWEEN CLUTCH HOUSING AND BRACKET
023		LOCK WASHER
		B 7 DIN 127 FOR BRACKET AT CLUTCH HOUSING
024		HEX. NUT
		M 7 DIN 934 - 5 S FOR BRACKET AT CLUTCH HOUSING
24a		WASHER
		7,4 DIN 125 FOR BRACKET AT CLUTCH HOUSING
24b	A 3129935301	PRESSURE SPRING
		FOR BRACKET AT CLUTCH HOUSING
025	A 1802900421	SWIVEL SUPPORT
	A 1802900521	SWIVEL SUPPORT
026		HEX. -HD. SCREW
		M 6X15 DIN 933-12 K FOR SWIVEL SUPPORT AT BRACKET, CLUTCH HOUSING
027	A 1202930143	SUPPORT PLATE
		FOR SWIVEL SUPPORT AT BRACKET, CLUTCH HOUSING
028		LOCK WASHER
		B 6 DIN 127 FOR SWIVEL SUPPORT AT BRACKET, CLUTCH HOUSING
029	A 0009905451	HEX. NUT
		FOR SWIVEL SUPPORT AT BRACKET, CLUTCH HOUSING
030	A 1202900346	FLANGE WITH SILENT BLOC
031	A 1209880010	SILENT BLOC
032		LOCK WASHER
		B 7 DIN 127 FOR FLANGE AT PEDAL SHAFT
033		HEX. -HD. SCREW
		M 7X25 DIN 931-8 G FOR FLANGE AT PEDAL SHAFT
034		HEX. -HD. SCREW
		M 8X38 DIN 931-8 G FOR FLANGE, OR SHAFT RESP. AT CLUTCH PEDAL
035		LOCK WASHER
		B 8 DIN 127 FOR FLANGE, OR SHAFT RESP. AT CLUTCH PEDAL
036		HEX. NUT
		M 8 DIN 934-5 S FOR FLANGE, OR SHAFT RESP. AT CLUTCH PEDAL
		TOOTHED WASHER
		J 8,4 DIN 6797 FOR FLANGE, OR SHAFT RESP. AT CLUTCH PEDAL
36a	A 1202920204	MOUNTING BODY
		FOR BRAKE PEDAL
		HEX. -HD. SCREW
		M 8X28 DIN 931-8 G FOR MOUNTING BODY TO BRAKE PEDAL AT MOUNTING, BODY FRAME AND CLUTCH PEDAL
		LOCK WASHER
		B 8 DIN 127 FOR MOUNTING BODY TO BRAKE PEDAL AT MOUNTING, BODY FRAME AND CLUTCH PEDAL
36b	A 1209910341	TIGHTENING SLEEVE
		FOR MOUNTING BODY TO BRAKE PEDAL AT MOUNTING, BODY FRAME AND CLUTCH PEDAL
037	A 1202900734	LEVER WITH PIN
		FOR CLUTCH OPERATION
038		CIRCLIP
		26 X 1,2 DIN 471 FOR CLUTCH PEDAL AT PEDAL SHAFT
040		HEX. -HD. SCREW
		M 7X30 DIN 931-8 G FOR LEVER, CLUTCH OPERATION, AT PEDAL SHAFT
041		LOCK WASHER
		B 7 DIN 127 FOR LEVER, CLUTCH OPERATION, AT PEDAL SHAFT
042		HEX. NUT
		M 7 DIN 934-5 S FOR LEVER, CLUTCH OPERATION, AT PEDAL SHAFT
043	A 1202910051	SPACER RING
044		WASHER
		10X16X1 DIN 988
045	A 0009811810	NEEDLE CAGE K 10/10
	A 1989910029	BALL
		FOR PEDAL SHAFT
046	A 1869910029	BALL
		FOR PEDAL SHAFT
047		CIRCLIP
		10X1 DIN 471 FOR BALL AT PEDAL SHAFT
47a	A 1219930026	SPRING PLATE
		FOR BALL GUIDE FROM CHASSIS 8501042
048	A 1202910388	SLEEVE
049	A 1202910288	RUBBER CAP
		FOR BALL GUIDE
050	A 1202901123	PLATE WITH ROD
		FOR BRAKE PEDAL
051	A 3192920082	COVERING
052	A 1202901322	PLATE WITH ROD
		FOR CLUTCH PEDAL
053	A 1212910082	COVERING
		RUBBER INSERT
054	A 1362240166	WASHER
		FOR SEALING CLUTCH PEDAL AND BRAKE PEDAL
055	A 1202910397	SEALING WASHER
		FOR SEALING CLUTCH PEDAL AND BRAKE PEDAL
056		HEX. -HD. SCREW
		M 8X22 DIN 933-8 G FOR PLATE WITH ROD AT CLUTCH PEDAL AND BRAKE PEDAL
057	A 1362900067	SEALING WASHER
		FOR BRAKE PEDAL AND CLUTCH PEDAL
	X XXXXXXXXXXXX	PART NAME MISSING
		CLUTCH OPERATION
060	A 1212900839	PULL ROD
		FOR CLUTCH OPERATION
	A 1212900939	PULL ROD
		FOR CLUTCH OPERATION
061	A 1869880010	SILENT BLOC
062	A 1202930232	SHACKLE
063		HEX. NUT
		M 8 LINKS DIN 934-5 S
064	A 1802930076	THREADED PIN
		FOR RELEASE FORK
065		HEX. NUT
		M 10 DIN 936-5 S
067		WASHER
		10 N 55 A FOR PULL ROD AT LEVER
068		COTTER PIN
		3 X 15 DIN 94 FOR PULL ROD AT LEVER
069	A 1212930940	BRACKET
	A 1802930440	BRACKET
070	A 1219930210	RELEASE SPRING
071	A 1205241133	UNDERPAN
072		HEX. -HD.
		SHEET METAL SCREW B 4,8X13 DIN 7976 FOR UNDERPAN AT FRAME, CHASSIS
073	A 0009841155	WASHER
		FOR UNDERPAN AT FRAME, CHASSIS
