Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

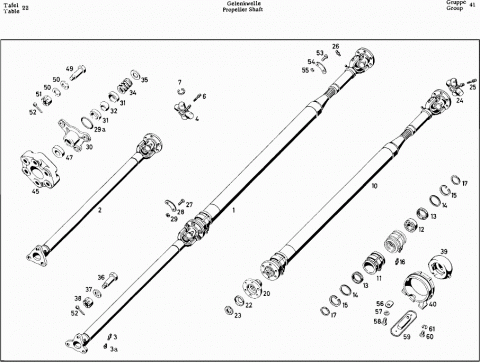

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		PROPELLER SHAFT
001	A 1214101303	PROPELLER SHAFT,
		DIVIDED, WITH INTERMEDIATE BEARING, WITHOUT BEARING BRACKET, RUBBER MOUNTING AND CENTERING CROSS
002	A 1804101401	PROPELLER SHAFT,
		FRONT, WITH JOINT
003		GREASE FITTING
		A 6 DIN 71412
03a	A 1229970087	OVERFLOW VALVE
004	A 1804100331	UNIVERSAL CROSS
		WITH NEEDLES AND NEEDLE BEARING BUSHINGS
006	A 1229970088	GREASE FITTING
007	A 1889940034	SNAP RING, 1.5 MM THICK
		OPTIONAL
	A 1889940234	SNAP RING, 1.6 MM THICK
		OPTIONAL
	A 1889940334	SNAP RING, 1.65 MM THICK
		OPTIONAL
	A 1889940434	SNAP RING, 1.70 MM THICK
		OPTIONAL
010	A 1214102302	PROPELLER SHAFT,
		REAR, WITH BEARING
011	A 1804130201	HOUSING
012		GROOVED BEARING
		6006 X - C 3 DIN 625
013	A 1804130151	SPACER RING
014	A 1809970340	SEALING RING
015		CIRCLIP
		55 X 2 DIN 472
016		GREASE FITTING
		A 6 DIN 71412
017		COMPRESSION RING
		A 40X3 AC DIN 73102
020	A 1864110945	JOINT FLANGE
022	A 1829940043	LOCKING PLATE
		FOR JOINT FLANGE AT REAR PROPELLER SHAFT
023	A 1869900060	GROOVED NUT
		FOR JOINT FLANGE AT REAR PROPELLER SHAFT
024	A 1804100331	UNIVERSAL CROSS
		WITH NEEDLES AND NEEDLE BEARING BUSHINGS
025	A 1229970088	GREASE FITTING
	A 1889940034	SNAP RING, 1.5 MM THICK
		OPTIONAL
	A 1889940234	SNAP RING, 1.6 MM THICK
		OPTIONAL
	A 1889940334	SNAP RING, 1.65 MM THICK
		OPTIONAL
	A 1889940434	SNAP RING, 1.70 MM THICK
		OPTIONAL
026		GREASE FITTING
		A 6 DIN 71412
027	A 1829900001	HEX.-HD. SCREW
		FOR FRONT AT REAR PROPELLER SHAFT
028	A 1869940325	LOCKING PLATE
		FOR FRONT AT REAR PROPELLER SHAFT
029		HEX. NUT
		M 8 DIN 934-5 S FOR FRONT AT REAR PROPELLER SHAFT
29a	A 1809971040	SEALING RING
		BETWEEN PROPELLER SHAFT AND CENTERING CROSS
	A 1864100630	CENTERING CROSS
030	A 1114100130	CENTERING CROSS
	A 1364110018	BALL SOCKET
031	A 1364110118	BALL SOCKET
032	A 1844110017	CENTERING BALL
034	A 1849930401	PRESSURE SPRING
	A 1804110076	LOCKING PLATE
		UP TO CHASSIS
035	A 1114110076	LOCKING PLATE
		FROM CHASSIS
		LOCKING RING
		30 X 1,2 DIN 472 FROM CHASSIS
036	A 1864110571	FITTED SCREW
		FOR JOINT DISC AT FRONT PROPELLER SHAFT
037	A 1879901440	WASHER
		FOR JOINT DISC AT FRONT PROPELLER SHAFT
038		CASTLE NUT
		M 12X1,5 DIN 937-5 S FOR JOINT DISC AT FRONT PROPELLER SHAFT
039	A 1804130212	RUBBER MOUNTING
		FOR PROPELLER SHAFT INTERMEDIATE BEARING
040	A 1804100339	MOUNTING BRACKET
		FOR PROPELLER SHAFT INTERMEDIATE BEARING
045	A 1804110615	JOINT DISC
047	A 1204110060	SEALING RING
		FOR PROPELLER SHAFT AT TRANSMISSION
049	A 1864110171	FITTED SCREW
		FOR JOINT DISC AT TRANSMISSION
050	A 1879901440	WASHER
		FOR JOINT DISC AT TRANSMISSION
051		CASTLE NUT
		M 12X1,5 DIN 937-5 S FOR JOINT DISC AT TRANSMISSION
052		COTTER PIN
		3 X 28 DIN 94 FOR JOINT DISC AT TRANSMISSION
053	A 1829900001	HEX.-HD. SCREW
		FOR PROPELLER SHAFT AT REAR AXLE
054	A 1869940325	LOCKING PLATE
		FOR PROPELLER SHAFT AT REAR AXLE
055		HEX. NUT
		M 8 DIN 934-5 S FOR PROPELLER SHAFT AT REAR AXLE
056	A 1804110262	WASHER
		FOR INTERMEDIATE BEARING AT FRAME
057		TOOTHED WASHER
		A 8,4 DIN 6797 FOR INTERMEDIATE BEARING AT FRAME
058		HEX.-HD. SCREW
		M 8X18 DIN 933-8 G FOR INTERMEDIATE BEARING AT FRAME
059	A 1204130561	PROTECTIVE PLATE
		FOR RUBBER MOUNTING
060		HEX.-HD. SCREW
		M 8X12 DIN 933-8 G FOR PROTECTIVE PLATE AT INTERMEDIATE BEARING
061		LOCK WASHER
		B 8 DIN 127 FOR PROTECTIVE PLATE AT INTERMEDIATE BEARING
