Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

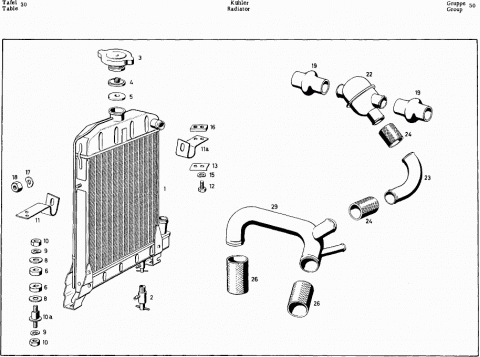

Grupė: 50 RADIATOR

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		RADIATOR
001	A 1215000503	RADIATOR
002		DRAIN VALVE
		CM 14 X 1,5 KEG DIN 71401
003	A 1865010115	RADIATOR CLOSING
		COVER 1 KG/CM2 WITH RELIEF PRESSURE VALVE
004	A 0005000540	POPPET VALVE
005	A 0005010181	GASKET
	X XXXXXXXXXXXX	PART NAME MISSING
		RADIATOR MOUNTING
006	A 1205040182	RUBBER WASHER
008		WASHER
		A 8,4 DIN 9021
009		LOCK WASHER
		B 8 DIN 127
010		HEX. NUT
		M 8 DIN 934-5 S
10a	A 1205000085	FIXING SCREW
011	A 1215040640	LEAF SPRING, LEFT
11a	A 1215040740	LEAF SPRING, RIGHT
012		HEX. -HD. SCREW
		M 6X12 DIN 933-8 G FOR LEAF SPRING AT BRACKET FOR BODY, CROSS STIFFENING
013	A 1205040084	SHIM
		FOR LEAF SPRING AT BRACKET FOR BODY, CROSS STIFFENING
015		LOCK WASHER
		B 6 DIN 127 FOR LEAF SPRING AT BRACKET FOR BODY, CROSS STIFFENING
016	A 1215040038	THREADED PLATE
		FOR LEAF SPRING AT BRACKET FOR BODY, CROSS STIFFENING
017		SPRING WASHER
		B 8 DIN 137 FOR LEAF SPRING AT RADIATOR
018		HEX. NUT
		M 7 DIN 934-5 S FOR LEAF SPRING AT RADIATOR
	X XXXXXXXXXXXX	PART NAME MISSING
		COOLING WATER PIPE
	A 1215010082	RUBBER HOSE
		BETWEEN COOLING WATER THERMOSTAT AND COOLING WATER DISCHARGE NIPPLE, ALSO TO RADIATOR
019	A 1215010182	RUBBER HOSE
		BETWEEN COOLING WATER THERMOSTAT AND COOLING WATER DISCHARGE NIPPLE, ALSO TO RADIATOR
		HOSE CLAMP
		S 9 N 262 FOR RUBBER HOSE AT COOLING WATER THERMOSTAT AND COOLING WATER DISCHARGE NIPPLE
		HOSE STRAP
		9X0,4X300 LG N 263 FOR RUBBER HOSE AT COOLING WATER THERMOSTAT AND COOLING WATER DISCHARGE NIPPLE ORDER BY THE METER
	A 0002038575	COOLING WATER
		THERMOSTAT, COMPLETE OPTIONAL
022	A 0012030875	COOLING WATER
		THERMOSTAT, COMPLETE OPTIONAL
	A 0012032375	COOLING WATER
		THERMOSTAT, COMPLETE OPTIONAL
		RUBBER HOSE
		12X18X180 MM LG. N 272 FOR SHORT-CIRCIUT PIPE WAS NOT INSTALLED
		RUBBER HOSE
		12X18X135 MM LG. N 272 FOR SHORT-CIRCIUT PIPE WAS NOT INSTALLED
		HOSE CLAMP
		S 9 N 262 FOR RUBBER HOSE, SHORT CIRCIUT PIPE WAS NOT INSTALLED
		HOSE STRAP
		9X0,4X165 MM LG. N 263 FOR RUBBER HOSE, SHORT CIRCIUT PIPE WAS NOT INSTALLED
023	A 1215010056	PIPE ELBOW
	A 1215010156	PIPE ELBOW
	A 1215010156	PIPE ELBOW
		SPECIAL REQUEST GENERATOR 300 WATT
024		RUBBER HOSE
		32X40X60 MM LG. N 272 ORDER BY THE METER
		HOSE CLAMP
		WSN 9 N 262 FOR PIPE ELBOW AT COOLING WATER THERMOSTAT AND DISTRIBUTOR PIPE
		HOSE STRAP
		9X0,4X270 MM LG. N 263 FOR PIPE ELBOW AT COOLING WATER THERMOSTAT AND DISTRIBUTOR PIPE ORDER BY THE METER
026		RUBBER HOSE
		38X46X70 MM LG. N 272 FOR COOLING WATER PIPE, BOTTOM, FROM RADIATOR TO DISTRIBUTOR PIPE AND TO WATER PUMP ORDER BY THE M
		HOSE CLAMP
		WSN 9 N 262 FOR COOLING WATER PIPE, BOTTOM, FROM RADIATOR TO DISTRIBUTOR PIPE AND TO WATER PUMP
		HOSE STRAP
		9X0,4X380 MM LG. N 263 FOR COOLING WATER PIPE, BOTTOM, FROM RADIATOR TO DISTRIBUTOR PIPE AND TO WATER PUMP ORDER BY THE
	A 1215001191	DISTRIBUTOR PIPE
		FOR COOLING WATER RETURN FLOW, HEATING AND SHORT-CIRCIUT PIPE
029	A 1215001491	DISTRIBUTOR PIPE
		FOR COOLING WATER RETURN FLOW, HEATING AND SHORT-CIRCIUT PIPE
	A 1215001291	DISTRIBUTOR PIPE
		FOR COOLING WATER RETURN FLOW, HEATING AND SHORT-CIRCIUT PIPE
	A 1215001591	DISTRIBUTOR PIPE
		FOR COOLING WATER RETURN FLOW, HEATING AND SHORT-CIRCIUT PIPE
	A 1215001591	DISTRIBUTOR PIPE
		FOR COOLING WATER RETURN FLOW, HEATING AND SHORT-CIRCIUT PIPE SPECIAL REQUEST GENERATOR 300 WATT
