Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

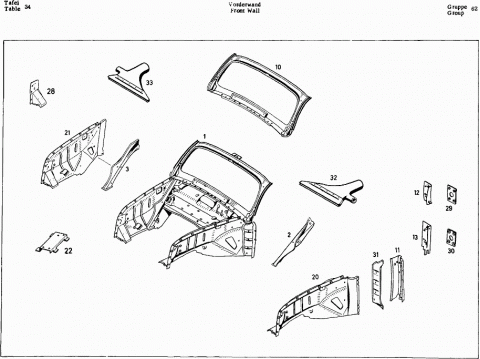

Grupė: 62 SHELL - 034 FRONT WALL

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT WALL
	A 101206200505	REPLACED BY
		120 620 02 05 TOGETHER WITH: 1 BEARING, LEFT 120 833 01 14 1 BEARING, RIGHT 120 833 02 14 4 HEX. -HD. SCREW M 4X12 DIN 9
	A 101216200405	REPLACED BY
		120 620 02 05 TOGETHER WITH: 1 BEARING, LEFT 120 833 01 14 1 BEARING, RIGHT 120 833 02 14 4 HEX. -HD. SCREW M 4X12 DIN 9
001	A 1206200205	FRONT WALL, SHELL
		FROM CHASSIS
	A 111206200605	REPLACED BY
		120 620 04 05 TOGETHER WITH 1 BEARING, LEFT 120 833 01 14 1 BEARING, RIGHT 120 833 02 14 4 HEX. -HD. SCREW M 4X12 DIN 93
	A 101216200505	REPLACED BY
		120 620 04 05 TOGETHER WITH 1 BEARING, LEFT 120 833 01 14 1 BEARING, RIGHT 120 833 02 14 4 HEX. -HD. SCREW M 4X12 DIN 93
	A 1206200405	FRONT WALL, SHELL
		FROM CHASSIS
	A 101206200319	STRUT, FOR
		WHEEL ARCH PAN, LEFT
002	A 101206200119	STRUT, FOR
		WHEEL ARCH PAN, LEFT
	A 101206200219	STRUT, FOR
		WHEEL ARCH PAN, RIGHT
003	A 101206200419	STRUT, FOR
		WHEEL ARCH PAN, RIGHT
010	A 101206200506	FRONT WALL
		FRAME, INSIDE, TOP WITH COVER PLATE
011	A 101206200571	ANGLE PLATE, LEFT, BOTTOM
		1 LOCKING PLATE 000 987 00 44 HAS TO BE DELIVERED IN ADDITION, IN CASE OF LEFT-HAND DRIVE FOR RIGHT SIDE, IN CASE OF RIG
	A 101206200871	ANGLE PLATE,
		RIGHT, BOTTOM 1 LOCKING PLATE 000 987 00 44 HAS TO BE DELIVERED IN ADDITION, IN CASE OF LEFT-HAND DRIVE FOR RIGHT SIDE,
012	A 101206200716	REINFORCEMENT, TOP
		FOR DOOR HINGE, LEFT
	A 101206200816	REINFORCEMENT, TOP
		FOR DOOR HINGE, RIGHT
013	A 101206200916	REINFORCEMENT, BOTTOM
		FOR DOOR HINGE, LEFT
	A 101206201016	REINFORCEMENT, BOTTOM
		FOR DOOR HINGE, RIGHT
	A 101206201161	WHEEL ARCH
020	A 101206200961	WHEEL ARCH
	A 101206200861	PART NAME MISSING
	A 101216200461	PART NAME MISSING
	A 101206200661	WHEEL ARCH
021	A 101216200261	WHEEL ARCH
022	A 101806200070	BRACKET, VOLTAGE
	A 101206200152	REINFORCEMENT BRACKET,
		LEFT FOR WHEEL ARCH
028	A 101206200252	REINFORCEMENT BRACKET,
		RIGHT FOR WHEEL ARCH
029	A 101206210113	THREADED PLATE, TOP, LEFT
		FOR DOOR HINGE
	A 101206210213	THREADED PLATE,
		TOP, RIGHT FOR DOOR HINGE
030	A 101206210313	THREADED PLATE,
		BOTTOM, LEFT FOR DOOR HINGE
	A 101206210413	THREADED PLATE,
		BOTTOM, RIGHT FOR DOOR HINGE
031	A 101206210116	REINFORCEMENT PLATE,
		OUTSIDE, LEFT FOR HINGE SIDE ON ANGLE PLATE
	A 101206210216	REINFORCEMENT PLATE,
		OUTSIDE, RIGHT FOR HINGE SIDE ON ANGLE PLATE
032	A 101208300119	DEFROSTER NOZZLE, LEFT
033	A 101208300219	DEFROSTER NOZZLE, RIGHT
