Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

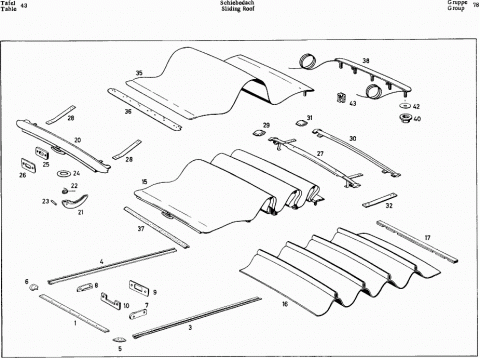

Grupė: 78 SLIDING ROOF

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		SLIDING ROOF
001	A 1207810013	COVER RAIL, FRONT
		LENS-HD. COUNTERSUNK
		SHEET METAL SCREW B 3, 5X19 DIN 7983 VERCHROMT FOR COVER RAIL AT ROOF
003	A 1207820125	SLIDING RAIL, LEFT
		FOR GUIDE RAIL
004	A 1207820225	SLIDING RAIL, RIGHT
		FOR GUIDE RAIL
	A 0009891985	SEALING COMPOUND,
		3.600-MM LONG FOR SLIDING RAIL AT ROOF, LATERAL ORDER BY THE METER
		COUNTERSUNK SHEET
		METAL SCREW B 3, 5X13 DIN 7982 VERCHROMT FOR SLIDING RAIL AT ROOF, LATERAL
005	A 1207810122	CORNER PIECE, LEFT
		AT BODY FRONT END, TOP
006	A 1207810222	CORNER PIECE, RIGHT
		AT BODY FRONT END, TOP
		LENS-HD. COUNTERSUNK
		SHEET METAL SCREW B 3,5X25 DIN 7983 VERCHROMT FOR CORNER PIECE AT ROOF
		LENS-HD. COUNTERSUNK
		SHEET METAL SCREW B 3,5X32 DIN 7983 VERCHROMT FOR CORNER PIECE AT ROOF
	A 0009851985	SEALING COMPOUND,
		150-MM LONG FOR CORNER PIECE AT ROOF ORDER BY THE METER
007	A 101207810321	CURVED PIECE, LEFT
		AT ROOF OPENING, FRONT
008	A 101207810421	CURVED PIECE, RIGHT
		AT ROOF OPENING, FRONT
		COUNTERSUNK SCREW
		AM 6X10 DIN 7987-4 S VERCHROMT FOR CURVED PIECE AT ROOF
009	A 101207810020	ANCHOR PLATE
		AT BODY FRONT END, TOP, CENTER
		COUNTERSUNK SCREW
		AM 8X15 DIN 7987-4 S VERCHROMT FOR ANCHOR PLATE AT ROOF FRAME, FRONT
	A 101877810129	SHIM 1 MM THICK
		OPTIONAL FOR ANCHOR PLATE AT ROOF FRAME, FRONT
	A 101877810229	SHIM 1.8 MM THICK
		OPTIONAL FOR ANCHOR PLATE AT ROOF FRAME, FRONT
010	A 101206570011	THREADED PLATE
		FOR ANCHOR PLATE AT ROOF FRAME, FRONT
015	A 101207800301	SLIDING ROOF
		MOVABLE PART STATE COLOUR AND CHASSIS NO. WHEN ORDERING
016	A 101207800040	DOME
		COMPLETELY SEWN STATE COLOUR AND CHASSIS NO. WHEN ORDERING
017	A 101206950186	END RAIL
		FOR DOME FIXING
		HOLLOW RIVET
		A 4X11X6 DIN 7331 FOR END RAIL AT DOME
	X XXXXXXXXXXXX	PART NAME MISSING
		LOCKING BOW
020	A 101207810523	LOCKING BOW
021	A 101207830184	LOCKING LEVER
		HANDLE
022	A 0007830334	SPRING
		FOR LOCKING LEVER
023	A 101207830015	JOINT BOLT
		FOR LOCKING LEVER AT LOCK
024	A 101207830085	ESCUTCHEON
		FOR LOCKING LEVER
		COUNTERSUNK SCREW
		AM 2, 6X8 DIN 63-4 S VERCHROMT FOR ESCUTCHEON AT LOCKING BOW
025	A 101207830097	RUBBER PLATE
		UNDER ORNAMENTAL PLATE
026	A 121367830086	ORNAMENTAL PLATE
		FOR HOOK, BOW
027	A 101207810224	INTERMEDIATE BOW
		SLIDING BOW
028	A 101207810317	STRAP
029	A 0007810030	PROTECTIVE CAP
		FOR INTERMEDIATE BOW
030	A 101207810325	FOLDING BOW
031	A 0007810130	PROTECTIVE CAP
		FOR FOLDING BOW
032	A 101207810317	STRAP
035	A 101207800320	SLIDING ROOF
		COVER, OUTSIDE STATE COLOUR OF INNER LINING AND CHASSIS NO. WHEN ORDERING
036	A 101207810414	SHEET METAL COVER, FRONT
037	A 0009873233	RUBBER MOULDING,
		1.250-MM LONG CREPE RUBBER STRIP ORDER BY THE METER
038	A 101207810214	SHEET METAL
		COVER, REAR WITH WIRE CABLE
	A 0007810066	WIRE CABLE
	A 0009873233	RUBBER MOULDING,
		1,230-MM LONG CREPE RUBBER FOR SLIDING ROOF COVER OUTSIDE ORDER BY THE METER
	A 0009891785	SEALING COMPOUND
		1,450-MM LONG ORDER BY THE METER
040	A 1209900050	SPRING STOP NUT
		FOR SLIDING ROOF AT BODY, REAR
042	A 1809903140	WASHER
		FOR SLIDING ROOF AT BODY, REAR
		HEX. -HD. SCREW
		M 6X22 DIN 931-8 G FOR WIRE CABLE AT ROOF FRAME
		LOCK WASHER
		B 6 DIN 127 FOR WIRE CABLE AT ROOF FRAME
		WASHER
		A 6,4 DIN 9021 FOR WIRE CABLE AT ROOF FRAME
043	A 0009902791	CAGE CLIP
		WITH SPRING STOP NUT FOR WIRE CABLE AT INNER PLATE
