Mercedes-benz | iAUTO.lt

Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

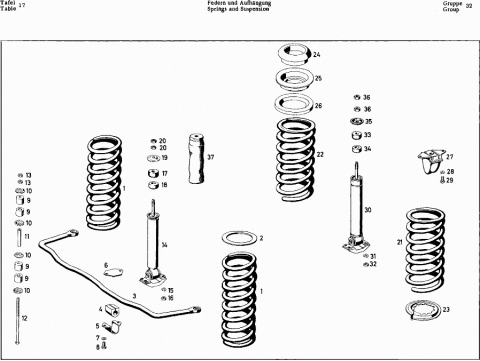

Grupė: 32 SPRINGS AND SUSPENSION

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		FRONT SPRING
001	A 1213210604	FRONT SPRING,
		WIRE DIA. 15.1-MM
	A 1203212004	FRONT SPRING,
		WIRE DIA. 15.5-MM EXPORT-SPECIAL REQUEST FOR BAD ROADS AND SPECIAL REQUEST FOR AMBULANCE CARS
002	A 1203220084	SHIM
	X XXXXXXXXXXXX	PART NAME MISSING
		TORSION BAR FOR FRONT SPRING
003	A 1213210007	TORSION BAR
004	A 1213230085	RUBBER MOUNTING
		FOR TORSION BAR AT BODY, FRAME
005	A 1813230068	BRACKET
		FOR TORSION BAR AT BODY, FRAME
006	A 1813230084	LOCKING PLATE
		FOR TORSION BAR AT BODY, FRAME
007		LOCK WASHER
		B 8 DIN 127 FOR TORSION BAR AT BODY, FRAME
008		HEX. -HD. SCREW
		M 8X18 DIN 933-8 G FOR TORSION BAR AT BODY, FRAME
009	A 1203230044	RUBBER BUFFER
		FOR TORSION BAR AT WISHBONE, BOTTOM
010	A 1203230067	RETAINER
		FOR TORSION BAR AT WISHBONE, BOTTOM
011	A 1209911040	SPACER TUBE
		FOR TORSION BAR AT WISHBONE, BOTTOM
012		HEX. -HD. SCREW
		M 8X165 DIN 931-8 G FOR TORSION BAR AT WISHBONE, BOTTOM
013		HEX. NUT
		M 8 DIN 934-5 S FOR TORSION BAR AT WISHBONE, BOTTOM
	X XXXXXXXXXXXX	PART NAME MISSING
		SHOCK ABSORBER, FRONT
014	A 1203230000	SHOCK ABSORBER, FRONT
	A 1803230300	SHOCK ABSORBER, FRONT
		EXPORT, SPECIAL REQUEST FOR BAD ROADS AND SPECIAL REQUEST FOR AMBULANCE CARS
015		LOCK WASHER
		B 7 DIN 127 FOR SHOCK ABSORBER AT WISHBONE, BOTTOM
016		HEX. NUT
		M 7 DIN 934-5 S FOR SHOCK ABSORBER AT WISHBONE, BOTTOM
017	A 1803260168	RUBBER RING, TOP
		FOR SHOCK ABSORBER AT FRONT AXLE SUPPORT
018	A 1803230485	RUBBER RING, BOTTOM
		FOR SHOCK ABSORBER AT FRONT AXLE SUPPORT
019	A 1803230083	RETAINER
		FOR SHOCK ABSORBER AT FRONT AXLE SUPPORT
020		HEX. NUT
		M 10X1 DIN 934-5 S FOR SHOCK ABSORBER AT FRONT AXLE SUPPORT
	X XXXXXXXXXXXX	PART NAME MISSING
		REAR SPRING
021	A 1053240004	REAR SPRING,
		LEFT, WIRE DIA. 16.2-MM
	A 1803242604	REAR SPRING,
		LEFT, WIRE DIA. 17.0-MM HARDER DESIGN FOR STANDARD LOAD EXPORT SPECIAL REQUEST AND SPECIAL REQUEST FOR STANDARD STREETS
022	A 1053240104	REAR SPRING,
		RIGHT, WIRE DIA. 16.2-MM
	A 1803242704	REAR SPRING,
		RIGHT, WIRE DIA. 17.0-MM HARDER DESIGN FOR STANDARD LOAD EXPORT, SPECIAL REQUEST AND SPECIAL REQUEST FOR STANDARD STREET
023	A 1803250415	SPRING RETAINER, BOTTOM
		FOR THRUST ARM
024	A 1803250144	RUBBER MOUNTING
		FOR UPPER SPRING RETAINER FOR REAR SPRING AT BODY, FRAME
025	A 1803250315	SPRING RETAINER, TOP
		FOR REAR SPRING AT BODY, FRAME
026	A 1803250052	SPACER RING, TOP
		FOR REAR SPRING AT BODY, FRAME
	A 1803200044	RUBBER BUFFER, STOP,
		FOR SPRING WAY LIMIT TOWARD TOP
027	A 1803200144	RUBBER BUFFER, STOP,
		FOR SPRING WAY LIMIT TOWARD TOP
	A 1803200044	RUBBER BUFFER, STOP
		EXPORT, SPECIAL REQUEST FOR STANDARD STREETS AND BAD STREETS
028		LOCK WASHER
		B 7 DIN 127 FOR RUBBER BUFFER AT BODY, FRAME
029		HEX. -HD. SCREW
		M 7X15 DIN 933-8 G FOR RUBBER BUFFER AT BODY, FRAME
	X XXXXXXXXXXXX	PART NAME MISSING
		SHOCK ABSORBER, REAR
030	A 1213260100	SHOCK ABSORBER, REAR
	A 1803260200	SHOCK ABSORBER, REAR
		EXPORT, SPECIAL REQUEST FOR STANDARD STREETS AND BAD STREETS
031		LOCK WASHER
		B 7 DIN 127 FOR SHOCK ABSORBER AT THRUST ARM
032		HEX. NUT
		M 7 DIN 934-5 S FOR SHOCK ABSORBER AT THRUST ARM
033	A 1803260168	RUBBER RING, TOP
		FOR SHOCK ABSORBER MOUNTING, TOP
034	A 1803230485	RUBBER RING, BOTTOM
		FOR SHOCK ABSORBER MOUNTING, TOP
035	A 1803230083	RETAINER
		FOR SHOCK ABSORBER MOUNTING, TOP
036		HEX. NUT
		M 10X1 DIN 934-5 S FOR SHOCK ABSORBER MOUNTING, TOP
037	A 1803200159	CANVAS POCKET
		DIA. 57 MM DUST PROTECTION FOR SHOCK ABSORBER, FRONT AND REAR EXPORT, SPECIAL REQUEST FOR BAD STREETS AND SPECIAL REQUES
